Security retractable remote control Hydraulic Road Blocker red and White

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-HRB02
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-7 working days after payment received
Payment Terms T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability 500 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Control System Electric Hydraulic Control Voltage 380V( Control Voltage:24V)
Blocker Length Default 1000mm Blocker Height Default 760mm
Min. Loading 70T Rising Time 3s To 5s
Falling Time 3s To 5s
High Light

automatic road blocker

,

security road blocker

Leave a Message
Product Description



Security retractable remote control Hydraulic Road Blocker red and White



Introduction of hydraulic road blocker:



Road Blockers provide higher levels of security with built in stopping power, and are used extensively for premises such as banks, embassies, bullion depots, cargo parks, ports and lorry parks.



100% duty rating - designed for continuous and frequent use. Power is supplied from a three phase 380V power supply as standard.



The Road Blocker can be interfaced to any access control systems and traffic Light System included as standard.



Features of hydraulic road blocker:



  • Strong and durable structure, high load bearing, movement smooth, low noise, fast speed, long service life.
  • Adopting PLC control, system operation is stable and performance is reliable., easy to integrate
  • Supporting the gang control with parking barrier or other equipment. It can also work with other access control system.
  • Adopting the advanced hydraulic drive technology. The whole system is high security, reliability, and stability.
  • Manual hydraulic system meet the requirement of fire management (In case of power failure or malfunction)
  • Remote control device: Through wireless remote control, it can control the rising and falling of road blocker within distance of 30 meters
  • Convenient to maintain:  in the case of structural failure or machine maintenance, you can loose the screw on the cover and take off the 16mm cover plate for corresponding operation.



Specifications of hydraulic road blocker:



Product Hydraulic road blocker

Control system

electric hydraulic control

Voltage

380V( control voltage:24V)

System Power

1.5KW/2.2KW/3.7KW

Min. loading

70T

Rising time

3 ~ 5 s

Falling time

3 ~ 5 s

Rising Height

350-800mm

Working temperature

-20℃~75℃.

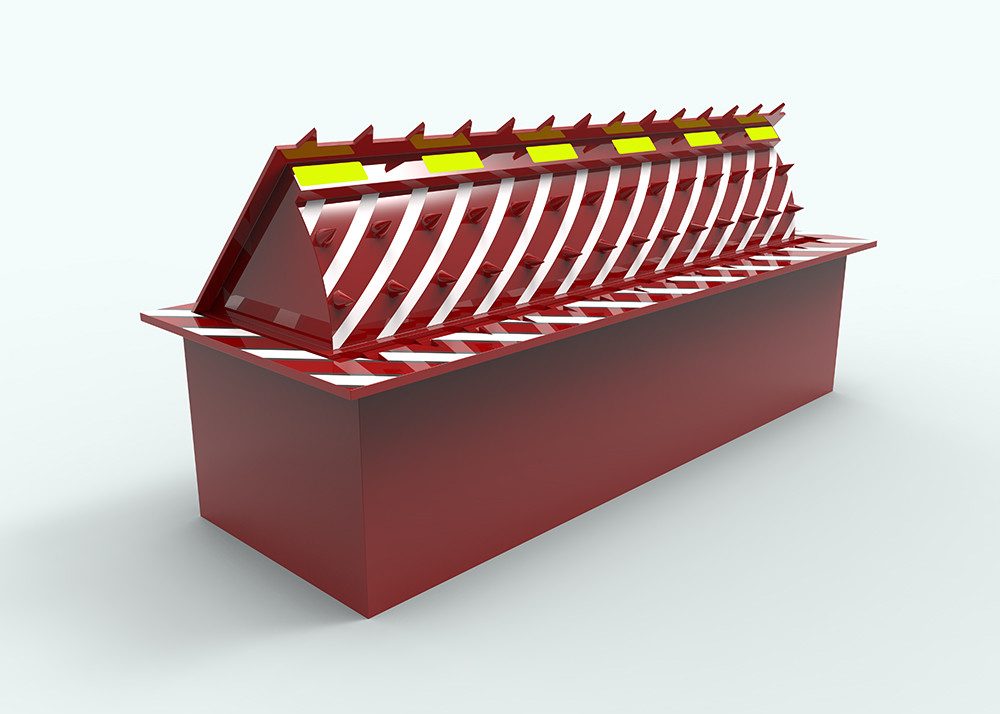

Photo of hydraulic road blocker:



Security retractable remote control Hydraulic Road Blocker red and White 0

Installation


1) Installation position
The road blocker should be installed on the user-specified vehicle entrance and exit. Hydraulic station,
according to the actual situation of the scene, installed in the appropriate location for easy operation
and maintenance, close to the road blocker (inside or outside of security room ). Control box should be
set in a place where is easy to control and operate according to the customer request (Next to the work
station of the personnel on duty).


2) Pipeline connection
2.1. There are 5 meters of the hydraulic pressure pipeline equipped, the exceeding part should be
charged. After confirmed the installation position of road blocker and hydraulic station (can know how
long the oil pipeline), we need to excavate foundation. When the foundation excavation, we should take
the terrain into consideration to arrange the trend of the hydraulic oil pipe and control wire. We should
ensure that pipeline is under the condition of no damage to other underground facilities, then buried it
safely. Make mark in the appropriate location, to avoid damage of pipelines when other construction
operations is implementing.
2.2,groove size of the pipeline should be based on the specific terrain. Under normal circumstances,
the embedded depth of the hydraulic pipeline is 10 ~ 30 cm and width 15 cm , the embedded depth of
wire is 5 ~ 15 cm, width is about 5 cm.
2.3.Threading pipe (PVC pipe) should be added to protect the controlling wire, so is the oil pipe.
