3 Meter lenght check point tire spikes highest level security Q235 steel frame

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-TK01
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-7 working days after payment received
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 3,00 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Automatic Tyre Killer Frame Material A3 Steel
Frame Width 700mm (standard) Min. Loading 40Tons
Color Yellow/black; Red/white Lenght 3m To 6m (standard)
High Light

tyre killers

,

Tire killers

Leave a Message
Product Description



3 Meter lenght check point tire spikes highest level security Q235 steel frame



Brief introduction:



SINOMATIC TYRE KILLER is composed by heavy duty spikes that rise from the ground; it operates like an access control barrier, it prevents the passage of unauthorized vehicles or it allows the exit from a supervised area. It can be installed with other access control elements (for example road bollards, road blocker or gates) in order to achieve an access control check-point at the highest level of security. Many optionals items are available for TYRE KILLER in order to configure each individual system.



Main Features:



1. Can combine with other control equipment making the barrier auto control

2. Solid and endurable structure, the largest traffic capacity is up to 60t

3. The system is safe, reliable and stable

4. Quite and fast

5. The working environment is -40° C to +70° C

6. Low trouble rate, high reliability, long life cycle,

7. Easy maintenance, and the rate is low

8. Perform exactly and operate steadily, making the barrier low noise

9. In case of electric failure or trouble, the movable barrier can be manually operated to return to the horizontal position, making the cars pass smooth





Tire killer system consists:



Tyre killer system consists of a main frame, electric transmission station and electric control box.

  • Main frame: mainly include A3 steel, steel blade, base and drive shaft. The whole body is steel structure , adopts GB A3 carbon steel plate and channel steel welding with high-strength load-bearing capacity and anti-collision capacity; Inside body without electrical appliances and line settings , which is waterproof and safe. The device is mounted on the driveway or designated location to limit vehicle traffic.
  • The electric transmission station: mainly include motor, gear box, limit switch, optical axis,bearings, base and a full transmission components.Inner structure no gear, no rotating belt, no maintenance,more stable and longer lift. It’s the power source of the tyre killer system, mounted on the side of the main frame. When outage, can drop down or lift up the steel blade manually.
  • Electric control part: mainly include control board, transformer, relays, long distance remote control device and wire control device.



Specifications of automatic tyre killer



Product Automatic tyre killer

Material

Q235 steel/A3 steel

Surface treatment

Paint with reflective stripe

IP

IP67

Standard color

Black and yellow

Length

3m to 6m (standard)

Width

700mm (standard)

Height from ground

70~110mm

Min weight capacity

40T

Blade height

150mm

Blade thickness

10mm

Operation mode

Electromechanical

Working environment

-40℃~+70℃

Control mode

Short range wireless remote control/drive-by-wire

Control distance

≤100M

Up/Down speed

1s

Voltage

220V/110V ±10%

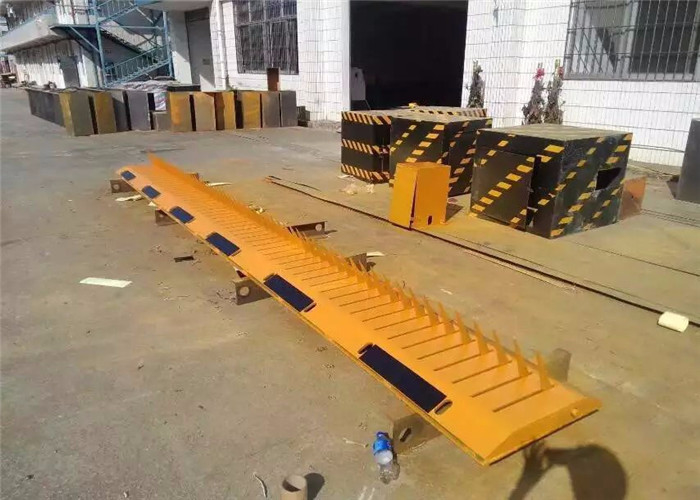

Production line of tyre killer:
