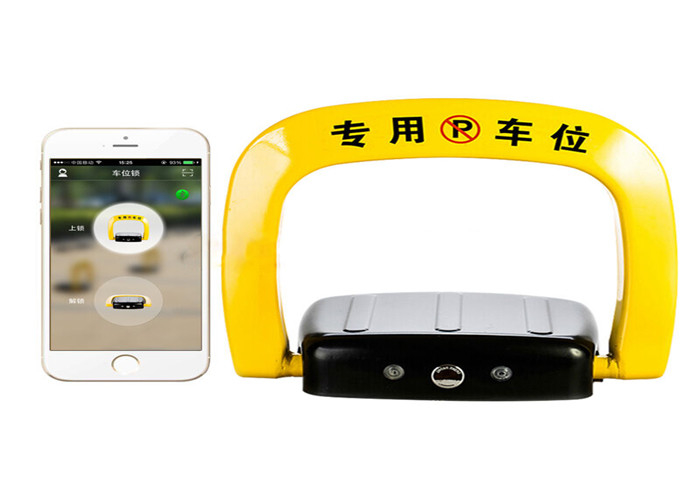

Parking space management automatic Car Parking Lock via bluetooth , Ios APP control
  • Parking space management automatic Car Parking Lock via bluetooth , Ios APP control
  • Parking space management automatic Car Parking Lock via bluetooth , Ios APP control

Parking space management automatic Car Parking Lock via bluetooth , Ios APP control

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-PL02
Product Details
Battery:
4 Pcs Of D Size Battery
RISING TIME:
≤4s
FALLING TIME:
≤3s
HEIGHT AFTER RISING:
400mm
HEIGHT AFTER FALLING:
86mm
Package:
Carton Box
High Light:

remote control parking lock

,

car parking space protector

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
7 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram, , L/C, D/A, D/P
Supply Ability
10000 pcs per month
Product Description



Parking space management automatic Car Parking Lock via bluetooth , Ios APP control



Advantage functions:

  • help user to park easier
  • help user to find nearby parking renting and contact information.
  • help user to management parking space easily
  • help user get profit by renting parking space.

Product Features:

  • Code clearance: Keep pressing the built-in touch switch till there is frequent blinking and alarm, the original code is cleared.
  • External force alarm : The arm at vertical position, if front and rear direction undertake a certain force, when the arm reaches a certain angle, there will be alarm. When the external force is removed , the arm will return back.
  • Low power indication: When battery power drops to 5.0V, if user press the remote control, the arm still action but with indicator light flashing and intermittent sound alarm. Time for replace the batteries.
  • Power shortage indication: When the battery voltage drops to 4.2V , the arm will automatically low down, if user press the remote control, the arm will not action, the indicator light flashes slowly with intermittent sound alarm. Time for replace the batteries.
  • Pressure Resistance: The parking lock can endure a rolling force of 200kg under the falling status without being damaged.
  • Self locking: When the parking lock is at horizontal and vertical status, no one else can make permanent change on the status except the user.
  • Anti-theft: The position of the foundation for parking lock and ground installation will be protected by a large external cover. The cover can only be opened by the user.
  • Manual control: In situation of power outage or the parking lock fails, but need to lower the arm, user can open the cover with the key and dismantle the shaft screw of the putter and low down the arm.
  • Sealing: The IP protection level is 67, which can fully prevent dust and water from entering inside.
  • Power: 4 pieces of D size alkaline batteries make it charge-free and easy to replace. Under normal use, original battery can be used for nearly one year.
  • Power connection indication: When 6V power connected, indicator light will flash and with a sound alarm.
  • Code settings for remote controller:After power on, within 5 seconds, user must press the RISE and DOWN button of the remote control separately. If the indication light flashes twice and the sound alarm rang twice, the remote code has been set.

Parking space management automatic Car Parking Lock via bluetooth , Ios APP control 0

Parking space management automatic Car Parking Lock via bluetooth , Ios APP control 1



Technical parameters:



Type Automatic parking lock
Power D size battery

RATED VOLTAGE

DC6V

STANDBY CURRENT

≤1mA

WORKING CURRENT

≤0.8A

RISING TIME

≤4s

FALLING TIME

≤3s

HEIGHT AFTER RISING

400mm

HEIGHT AFTER FALLING

86mm

CONTROL DISTANCE

≤20m

ENVIRONMENT TEMPERATURE

-30°~+60°

DIMENSIONS

 430mm×440mm×86mm

GROSS WEIGHT

10kg
