Computer spray powder coating heavy duty private Car Parking Lock with one year warranty
| Place of Origin | Shenzhen, China. |
|---|---|
| Brand Name | SINOMATIC |
| Certification | CE/ ISO |
| Model Number | SN-PL03 |
| Minimum Order Quantity | Sample order accepted |
| Price | negotiable |
| Packaging Details | Carton/Plywood box/Pallet |
| Delivery Time | 3-7 working days after payment received |
| Payment Terms | T/T, Western Union, MoneyGram, , L/C, D/A, D/P |
| Supply Ability | 10000 pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| RATED VOLTAGE | DC 6V | RISING TIME | ≤5s |
|---|---|---|---|
| FALLING TIME | ≤4s | HEIGHT AFTER RISING | 370mm |
| HEIGHT AFTER FALLING | 70mm | STRUCTURE | TRIANGLE |
| High Light | remote control parking lock,car parking space protector |
||
Product Description

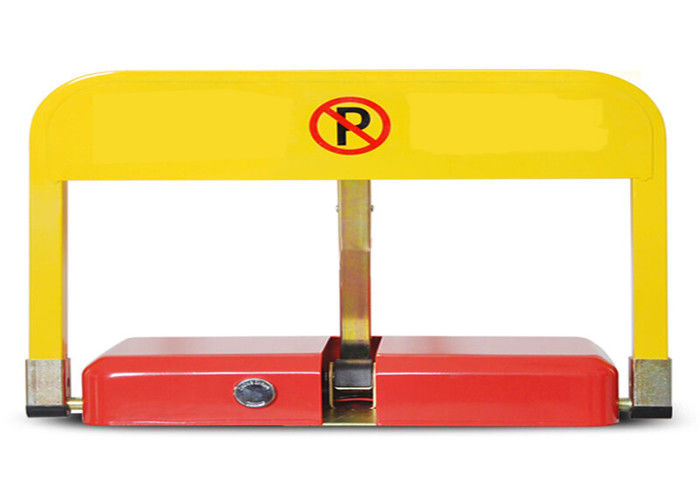

Computer spray powder coating heavy duty private Car Parking Lock with one year warranty
Technical parameters:
| STRUCTURE | TRIANGLE LOCKING |
|
RATED VOLTAGE |
DC6V |
|
STANDBY CURRENT |
≤0.9mA |
|
WORKING CURRENT |
≤0.8A |
|
RISING TIME |
≤5s |
|
FALLING TIME |
≤4s |
|
HEIGHT AFTER RISING |
370mm |
|
HEIGHT AFTER FALLING |
70mm |
|
CONTROL DISTANCE |
≤20m |
|
ENVIRONMENT TEMPERATURE |
-30°～+60° |
|
DIMENSIONS |
490mm×470mm×70mm |
|
GROSS WEIGHT |
8KG |
Product Details:
Product Features:
1. IP 67: The IP protection level is 67, which can fully prevent dust and water from entering inside.
The parking lock can endure a rolling of a 3 tons vehicle under the falling status.
2. Anti-kick: Support surface adopts triangle structure, can effectively prevent human deliberately change arm cocked state.
3. Anti-Theft: The position of the foundation for parking lock and ground installation will be protected by a large external cover. The cover can only be opened by the user.
4. Pressure resistance: The parking lock can endure a rolling of a 3 tons vehicle under the falling status.
5. Power: power supply optional, DC6V re-chargeable batteries or 4 pieces of D size alkaline batteries.
6. Power connection indication: When 6V power connected, indicator light will flash for 3 seconds and with a sound alarm.
7. Code settings for remote controller: After power on, within 3 seconds, user must press the RISE and DOWN button of the remote control separately. The alarm will sound twice meaning the remote code has been set.
8. Code clearance: Keep pressing the built-in touch switch till there is frequent alarm, the original code is cleared.
9. Reset function: When the arm meets external force during ascent, it will automatically switch the motor rotating direction to avoid damage.
