Automatic Rising Bollards
>
|
| Place of Origin | Shenzhen, China. |
| Brand Name | SINOMATIC |
| Certification | CE/ ISO |
| Model Number | SN-HRB01 |

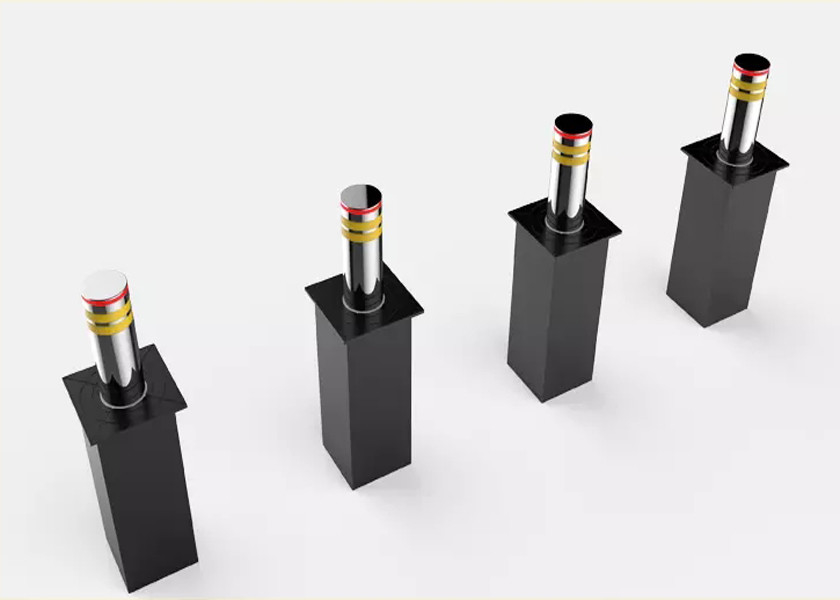

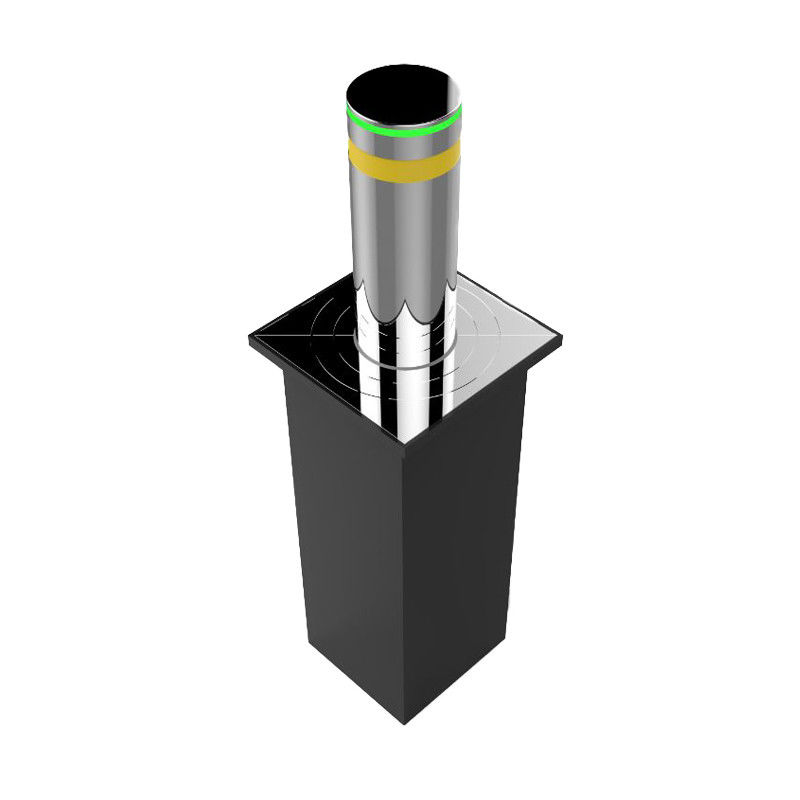

K12 Degree Anti terrorism waterproof 5 million MCBF Automatic Rising Bollards
Technical Parameter
1,System:hydraulic system
2,Max passing pressure:Can pass 80-120 tons of container trucks
3,Voltage:AC220V 50Hz Integrated /AC380V Split
4,Power(w):350W Integrated/3.75KW Split
5,Up time:≤3-4S Adjustable
6,Down time:≤3-4S Adjustable
7,Working temperature:-35℃~75℃
8,Storage Environment :-10℃~65℃, Water-proof Damp-proof,Dust-proof.
9,Material :304 stainless steel
10,Rising height:600mm
11,Standard Thickness:6 8,10,12,15,30mm(optional).
12,Diameter:168,219,273mm(optional)
13,Casing size:430*430*1130mm/500*500*900mm
14,Structure :With load-bearing steel beam column, anti-collision steel beam column, 4 navigation rod
15,Integrated electrical mechanism :stroke 600mm,Cylinder outer diameter 60mm,Rod diameter:16mm.
16,6k Mirror tube
17,With LED (Acrylic light circle)
18,Reflective sticker :2 strips
19,Gang-control interface
20,In case of a power outage, the bollards can be manually lowered
TECHNICIAL SPECIFICATIONS:
| Bollard Material | 304 or 316 stainless steel |
| Bollard height | 600 to 1000mm |
| Bollard diameter | 168 mm (219mm, 273 mm, 324mm are available) |
| Bollard thickness | 6 mm (6 to 12 mm are available) |
| Min. loading | 80T |
| Anti-collision level | K4 , K8, K12 |
| Protection grade | IP68 |
| System dynamic power | 2.2 KW / 380V |
| Rising time | 3 ~ 6 s |
| Falling time | 3 ~ 6 s |
| Operation mode | Electromechanical |
| Working temperature | -35℃~75℃. |
Case reference:
