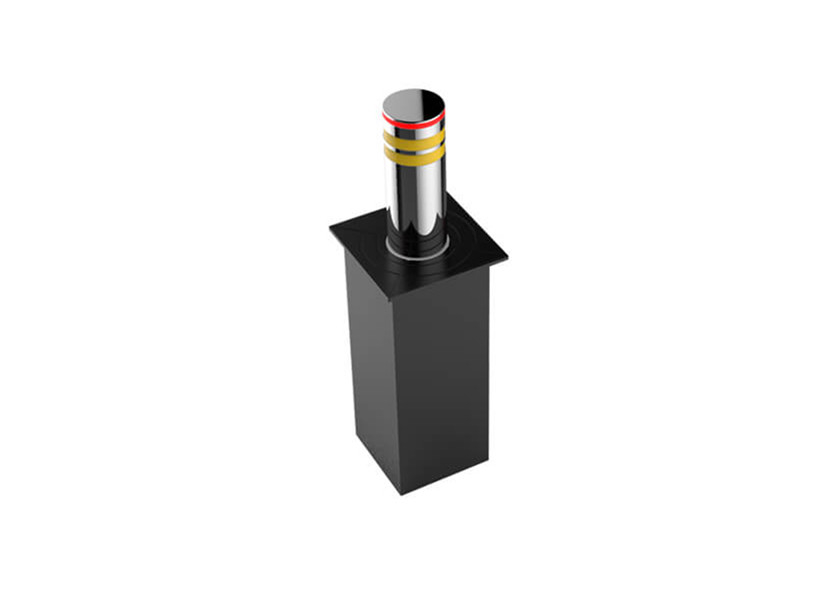

IP68 Waterproof K12 Anti-Collision Remote Control Automatic Rising Bollards for High Security
  • IP68 Waterproof K12 Anti-Collision Remote Control Automatic Rising Bollards for High Security
  • IP68 Waterproof K12 Anti-Collision Remote Control Automatic Rising Bollards for High Security
  • IP68 Waterproof K12 Anti-Collision Remote Control Automatic Rising Bollards for High Security
  • IP68 Waterproof K12 Anti-Collision Remote Control Automatic Rising Bollards for High Security
  • IP68 Waterproof K12 Anti-Collision Remote Control Automatic Rising Bollards for High Security
  • IP68 Waterproof K12 Anti-Collision Remote Control Automatic Rising Bollards for High Security
IP68 Waterproof K12 Anti-Collision Remote Control Automatic Rising Bollards for High Security

IP68 Waterproof K12 Anti-Collision Remote Control Automatic Rising Bollards for High Security

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-HRB01
Product Details
Warranty:
1 Year
Control System:
Electric And Hydraulic
Material Of Bollard:
304(or 316)
Working Temperature:
-35℃~75℃.
Protection Grade:
IP68
Anti-collision Level:
K4, K8 And K12
Highlight:

hydraulic rising bollards

,

automatic driveway bollards

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-7 working days after payment received
Payment Terms
T/T, Western Union, , L/C, D/A, D/P
Supply Ability
1000pcs per month
Product Description
Retractable Roadway Safety Automatic Rising Remote Control High Security Bollards Systems
Functions & Features
  • Bollard Thickness: 6mm (standard), 8mm, 10mm, 12mm, 20mm optional
  • Diameter: 219mm (Standard), 273mm (optional)
  • Structure: Load-bearing steel beam column with anti-collision steel beam column
  • LED light (optional)
  • Reflective sticker: 2 strips
  • Link-control interface
  • Manual lowering capability during power outages
  • IP rating: IP68
  • Weight: 150±KG Integrated
  • Reversible operation in rising and falling
  • Device running noise ≤60 decibel
  • Waterproof integrated hydraulic device drive
  • Double-sealed hydraulic cylinder for waterproof rating
  • Hydraulic drive with hydraulic lock
  • PLC programming command control system
  • Solenoid valve voltage: 24V
  • Remote control distance: 50M-100M (environment dependent)
  • Control box with adjustable text display (Up, Down, Action, Time control)
  • Bilingual text display: Chinese and English
  • PLC built-in encryption system
  • Water immersion performance: 48 hours without leakage and working well
Technical Specifications
Name Hydraulic road bollard
System Electric and hydraulic system
Max. passing pressure 100T
Voltage AC220V/110V
Power 300W integrated
Up time 3-6S Adjustable
Down time 3-6S Adjustable
Working temperature -65℃~75℃
Storage Environment -10℃~65℃ (water-proof, damp-proof, dust-proof)
Crash Test
IP68 Waterproof K12 Anti-Collision Remote Control Automatic Rising Bollards for High Security 0
Bollard Structure
IP68 Waterproof K12 Anti-Collision Remote Control Automatic Rising Bollards for High Security 1
Case Reference
IP68 Waterproof K12 Anti-Collision Remote Control Automatic Rising Bollards for High Security 2 IP68 Waterproof K12 Anti-Collision Remote Control Automatic Rising Bollards for High Security 3
Our Service
  • OEM Manufacturing welcome: Product, Package
  • Sample order accepted
  • 24-hour inquiry response
  • Minimum 12 months warranty with lifelong technical support
Frequently Asked Questions
Q1. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q2. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q3. How about your delivery time?
A: Generally, it will take 5 to 7 days after receiving your advance payment. The specific delivery time depends on the items and the order quantity.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q7: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
