High-Frequency Pedestrian Passage Management BLDC Motor Retractable Flap Gate Barrier

Place of Origin Shenzhen, China.
Certification CE/ ISO
Model Number SN-FB04
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T or western Union
Supply Ability 2000 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Opening Speed 0.5 Second Cabinet Thickness At Least 1.2mm
Access Device Input Voltage Dry Contact/relay Signal Application Indoor/outdoor With Tent
Material Of Cabinet 304 Stainless Steel Motor Type BLDC Motor
High Light

275mm Flap Waist Height Turnstiles


Acrylic Panel Waist Height Turnstiles


0.5S ISO Crowd Control Turnstiles

Leave a Message
Product Description

High-Frequency Pedestrian Passage Management BLDC Motor Retractable Flap Gate Barrier




Flap barrier gate is one of the passage management equipment, mainly used for pedestrian passage management;

it has the characteristics of fast opening, safety, and convenience, and is an ideal management and grooming device

for high-frequency pedestrian access; it has been widely used in airports, subway stations, and stations, Docks, scenic

spots, parks, student dormitories, unit pedestrian passages, etc., can cooperate with smart cards to realize off-type

ticketing management system functions and form unattended management of personnel entry and exit. Basically

composed of a main box and a movable wing board, it has a blocking function for unauthorized personnel

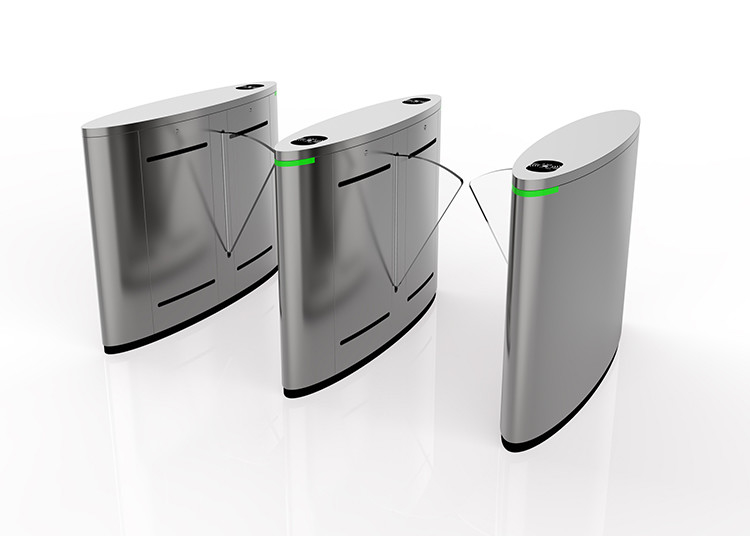

High-Frequency Pedestrian Passage Management BLDC Motor Retractable Flap Gate Barrier 0



1, With the function of self-reporting failure prompt, it is convenient for users to use and maintain;

2, It has the functions of passing instructions and channel instructions;

3, Has a normally open button function

4, It has the functions of automatic opening of the swing door after power failure and automatic closing after power on;

5, With line self-check function;

6, It has an alarm function for illegal intrusion;

7, With triple anti-pinch protection function;

8, The access mode can be adjusted arbitrarily;

9, The closing time and method can be adjusted arbitrarily;


Finish brushed surface, polishing surface or anti-fingerprint surface (optional);
Size (L*W*H) 1200mm*300mm*980mm (default)
Material of flap different color Acrylic flap available or Red Soft flapper optional
Stretching-out flap length 270mm
Machine center Germany technological motor
Power voltage AC100V~240V
Driver motor DC Brush-less motor
In-built Infrared 4 pairs/lane at least
Passing speed 30 persons/min
Passage Width 550mm
Opening / closing time 0.5 seconds
The time required to running state after power on 3 seconds
Automatic reset time after the failure 10 seconds
Mean time to failure At least 5 million times
Operation temperature -10℃ ~ +70℃
Relative humidity less than 95% not condensed
Working Environment Indoor/Outdoor (with rain-tent cover)
Input port relay dry contact signal; +12V level signal and pulse width >100ms, DC12V pulse signal
Communications port RS232/ RS485 electric standard, communications range≤1200m. Available to connect with external CAN BUS and Ethernet
Warranty 12 months





It is mainly used for the entrance and exit management of the passage. It has the characteristics of fast opening, safety

and convenience. It is an ideal management and guidance equipment for high-frequency entrance and exit passages for

pedestrians. Widely used in airports, subway stations, stations, terminals, attractions, parks, shopping malls, office buildings,

pedestrian walkways and other places.
