Security Automatic Flap Barrier Gate with Telescopic Wings Dry Contact Input and 1s Opening Speed
  • Security Automatic Flap Barrier Gate with Telescopic Wings Dry Contact Input and 1s Opening Speed
Security Automatic Flap Barrier Gate with Telescopic Wings Dry Contact Input and 1s Opening Speed

Security Automatic Flap Barrier Gate with Telescopic Wings Dry Contact Input and 1s Opening Speed

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-TY
Product Details
Opening Speed:
1s
Reset Time When Power On:
3s
Access Device Input Voltage:
Dry Contact
Direction:
Can Be Set As Single Or Double
Wing Type:
Telescopic
Wing Material:
PU Foam
Highlight:

waist high turnstile

,

flap turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T or western Union
Supply Ability
1000 pcs per month
Product Description
Security Automatic Access Control System Flap Barrier Motor With Telescopic Wings
Advanced security access control system featuring telescopic wing flap barriers with comprehensive safety and control features.
Key Features
  • Compact electro-mechanical design with unique drive and self-lock mechanism
  • Automatic malfunction detection system
  • Input interface for dry contact and switch signal connection
  • Adjustable auto-delay closing functionality
  • Infrared photocells for safety access control
  • Alarm system for unauthorized access and reverse flow detection
  • Anti-reversing passing protection
  • Automatic closing when powered on
  • Automatic opening and free access during power failure
  • Adjustable access direction settings
  • No battery requirement for operation
  • Emergency interface availability
  • Traffic light indicators for passenger access guidance
Technical Specifications
Power Supply AC220±10%V 50Hz/AC110±10% 60Hz
Motor Voltage DC 24V
Control Input Dry Contact
Direction Configurable as single or double direction
Maximum Flow Rate 30 to 40 persons per minute
Flap Opening/Closing Time 1 second
Flap Length 440mm
Flap Material PU Foam
Working Temperature -25°C to +50°C
Working Humidity 0 to 95% RH
Application Indoor/Outdoor with protective covering

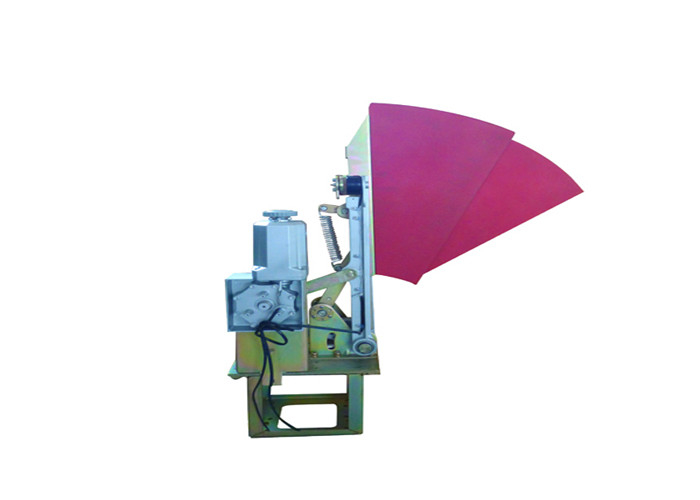

Mechanism Design
Security Automatic Flap Barrier Gate with Telescopic Wings Dry Contact Input and 1s Opening Speed 0
Why Choose Our Flap Barrier Motors
  • 14 years of OEM/ODM experience in access control turnstiles and barriers
  • Prompt delivery with standard model inventory maintenance
  • Custom OEM/ODM orders to meet specific client requirements
  • Trial orders accepted for product testing before bulk purchasing
  • Comprehensive online technical support for business partners
  • Multiple transportation options including sea, air, and express shipping
  • Factory visits welcome during working days for client inspection
