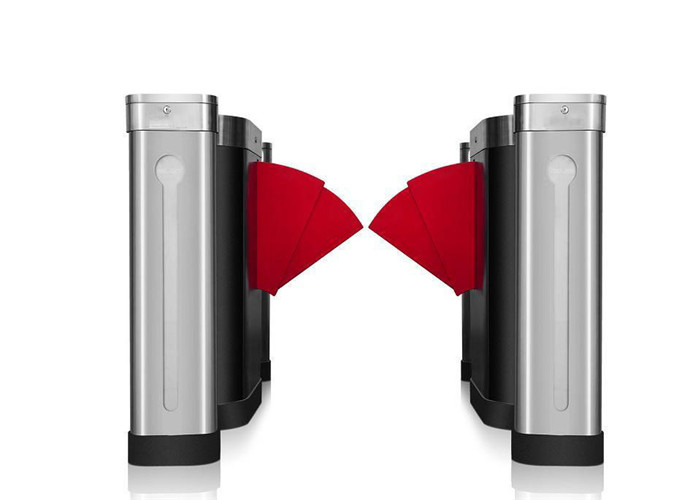

Anti Reversing Telescopic Wing Metro Station Speed Gate DC24V SUS304

  • Anti Reversing Telescopic Wing Metro Station Speed Gate DC24V SUS304
Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-TY301
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T or western Union
Supply Ability 1000 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Opening Speed 1 Second Reset Time When Power On 3 Second
Material Of Case 304 Stainless Steel, Steel Plate, Tempering Glass Access Device Input Voltage Dry Contact
Direction Can Be Set As Single Or Double Wing Type Telescopic
High Light

Anti Reversing Metro Station Speed Gate

,

Telescopic Wing Metro Station Speed Gate

,

DC24V SUS304 Automatic Flap Barrier
Leave a Message
Product Description

Quick Fashionable Safety Metro Station Speed Gate Full Automatic



Features of Speed Gate:



1. a compact electro-mechanical design with unique drive and a self-lock mechanism

2. automatic detection for malfunction

3. input interface for dry contact and switch signal connection

4. adjustable auto-delay closing

5. infrared photocells for safety access

6. alarm for unauthorized access and no access against passenger flow

7. anti-reversing passing

8. auto closing when power on

9. auto open and free access when power off

10. adjustable access directions


11. No battery is needed

12. emergency interface available

13. traffic light indicating passenger access




Specifications of Speed Gate:



Power supply
AC220±10%V 50Hz/AC110±10% 60Hz
Motor voltage
DC 24V
Control input
Dry contact
Direction
Can be set as single or double
Max flow rate
30 to 40 person per minute
Flap openning/closing time
1s
Flap lenght
440mm
Flap material
PU foam
Working temperature
-25°C~+50°C
Working humidity
0~95%RH
Application
Indoor/ outdoor with tent



Mechansim of speed gate:



Anti Reversing Telescopic Wing Metro Station Speed Gate DC24V SUS304 0



Why choose us:



1. Our Factory has 13 years OEM/ODM experiences in the line of access control turnstile and barrier.
2. Prompt delivery time. Usually we keep stock of standard model which ensure the prompt delivery.
3. We accept OEM/ODM orders to meet the requirements of clients.
4. Trial order is acceptable. Clients can buy sample order and test it before bulk order.

5. Online technical support makes it carefree to be our business partner.

6. A variety of transportation for your choice. Sea shipment, air cargo or express, depends on your demand.

7. Factory can be visited on working days. Clients are warmly welcome to visit our factory.
