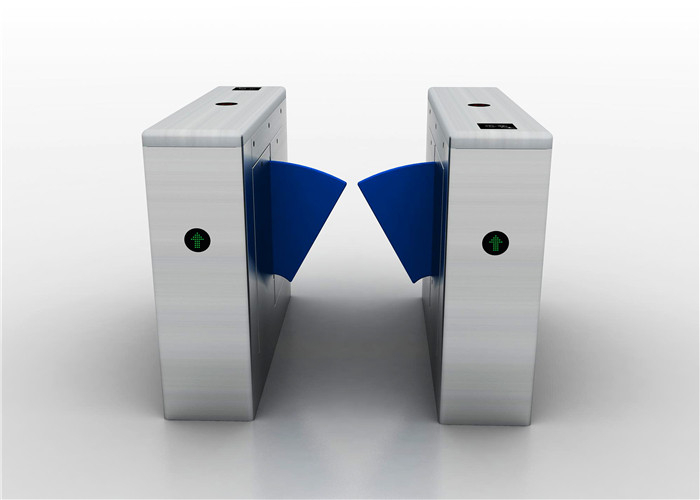

High Speed Intelligent Automatic Systems Turnstiles With Infrared Sensors 240V - 100V
  • High Speed Intelligent Automatic Systems Turnstiles With Infrared Sensors 240V - 100V

High Speed Intelligent Automatic Systems Turnstiles With Infrared Sensors 240V - 100V

Place of Origin Shenzhen, China.
Certification CE/ ISO
Model Number SN-FB01
Product Details
For Open Door When Power Off
Flap Length:
Size Of Housing:
Flap Opening / Closing Time:
Working Temperature:
Reset Time When Power On:
3 Seconds
High Light:

automatic turnstiles


speedgate turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability
3,000pcs per month
Product Description

CE approved high speed security 240V-100V voltage intelligent speedy gates with infrared sensors


Introduction of speedy gates:


Sinomatic speedy gates are designed to work in a normally closed mode and retract inside
the pedestal after a valid card has been presented to allow the authorised user to pass.


Applications of speedy gates:


1.Metro station, wharf, tourist attraction, entrance and exit management channel of factory

2.Recount channel management of exhibition, swimming pool, etc

3.Time attendance, access control, consumption management for enterprise or business buildings

4.Special channel management system


Features of speedy gates:


1. Fault detection and alarm functions, easy to use and maintenance.

2. The running status can be programmed and controlled with the built-in keyboard on the main board.

3. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop working automatically within the prescribed time and reset again after the default delay (till fully reset).

4. Anti-breakthrough function. The gate is locked automatically until opening signal received.

5. Synchronization functions (for dual gate equipment).

6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.

7. Gate can be set as normally open or normally closed.

8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Access controller needed).

9. Direction can be set as single-direction or bi-direction.

10. LED direction indicator.

11. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.

12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.

13. Counter function (optional).

14. Support infrared photocell for anti-pinch and reset function.


Specifications of speedy gates:




Power supply

AC220±10%V 50Hz/AC110±10% 60Hz

Access device input voltage

Dry contact or 12V electrical level signal

or > 100ms 12V impulse signal, driving current > 10mA

Motor voltage

DC 24V (brush motor)

Max flow rate

25 to 30 person per minute

Flap opening / closing time


Reset time when power on


Working temperature



Case of speedy gates:


High Speed Intelligent Automatic Systems Turnstiles With Infrared Sensors 240V - 100V 0


Our advantages:


1. Our Factory has 13 years OEM/ODM experiences in the line of access control turnstile and barrier.
2. Prompt delivery time. Usually we keep stock of standard model which ensure the prompt delivery.
3. We accept OEM/ODM orders to meet the requirements of clients.
4. Trial order is acceptable. Clients can buy sample order and test it before bulk order.

5. Online technical support makes it carefree to be our business partner.

6. A variety of transportation for your choice. Sea shipment, air cargo or express, depends on your demand.

7. Factory can be visited on working days. Clients are warmly welcome to visit our factory.
