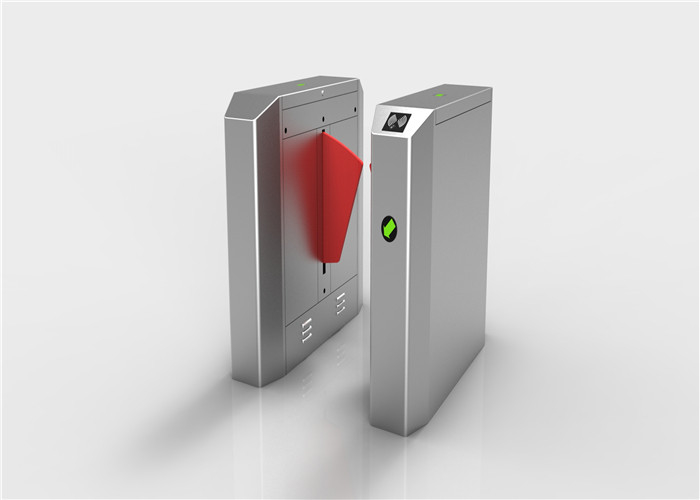

Crowd Control System 304 Stainless Steel Speed Gate With Red Retractable Foam Flap
Introduction of Speed Gate:
Applications of Speed Gate:
Sinomatic speed gate are designed to control pedestrian entering and exiting, adopts 304 or 316 stainless steel which is dust-proof and rust-proof.
It's easy to integrate with other read/write devices, and widely use for applications like stadium, apartment, gym,
museum, station, library and factory etc.
Features of Speed Gate
1. Fault detection and alarm functions, easy to use and maintenance.
2. The running status can be programmed and controlled with the built-in keyboard on the main board.
3. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop working automatically within the prescribed time and reset again after the default delay (till fully reset).
4. Anti-breakthrough function. The gate is locked automatically until opening signal received.
5. Synchronization functions (for dual gate equipment).
6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.
7. Gate can be set as normally open or normally closed.
8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Access controller needed).
9. Direction can be set as single-direction or bi-direction.
10. LED direction indicator.
11. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.
12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.
13. Counter function (optional).
14. Support infrared photocell for anti-pinch and reset function.
Specifications of Speed Gate
Item |
Specification |
Power supply |
AC220±10%V 50Hz/AC110±10% 60Hz |
Access device input voltage |
Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA |
Motor voltage |
DC 24V (brush motor) |
Max flow rate |
25 to 30 person per minute |
Flap opening / closing time |
1s |
Reset time when power on |
3s |
Working temperature |
-20°C~60°C |
Case of Speed Gate:
