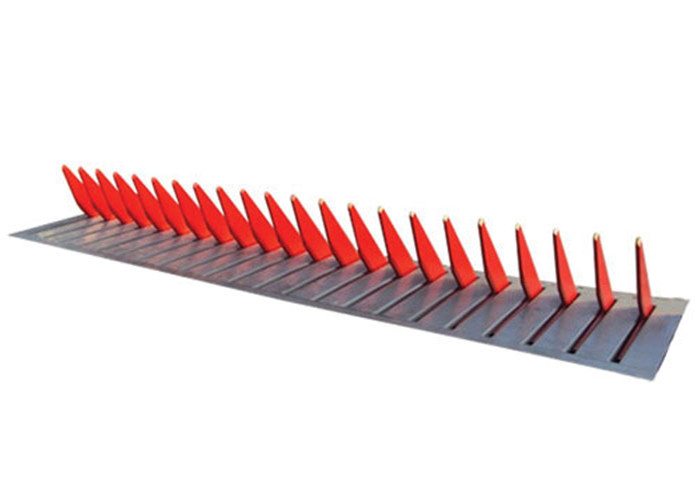

Remote Control Electrical Hydraulic 70T Tire Killer With CE Certificated

  • Remote Control Electrical Hydraulic 70T Tire Killer With CE Certificated
  • Remote Control Electrical Hydraulic 70T Tire Killer With CE Certificated
  • Remote Control Electrical Hydraulic 70T Tire Killer With CE Certificated
  • Remote Control Electrical Hydraulic 70T Tire Killer With CE Certificated
  • Remote Control Electrical Hydraulic 70T Tire Killer With CE Certificated
Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-TK02
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-7 working days after payment received
Payment Terms T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability 3,00pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Min. Loading 40T Lifting Time 2s
OEM/ODM Supported Warranty 1 Year
Lenght 3m To 6m Package Wooden Box
High Light

tyre killers

,

Tire killers
Leave a Message
Product Description

Remote control CE certificated OEM/ODM electrical hydraulic tyre killer with 70T loading capacity



Introduction of automatic tire killer:



Tyre killer is a unique innovation designed to allow vehicular traffic only from one direction. It is a complete blocker for vehicles violating and trying to enter from wrong direction. The spikes gets pressed by the weight of vehicle approaching from right direction and for violating vehicles the spikes stands firm to completely damage the wheels , thereby incapacitating the vehicle.



Tire killer system consists:

Tyre killer system consists of a main frame, electric transmission station and electric control box.

  • Main frame: mainly include A3 steel, steel blade, base and drive shaft. The whole body is steel structure , adopts GB A3 carbon steel plate and channel steel welding with high-strength load-bearing capacity and anti-collision capacity; Inside body without electrical appliances and line settings , which is waterproof and safe. The device is mounted on the driveway or designated location to limit vehicle traffic.
  • The electric transmission station: mainly include motor, gear box, limit switch, optical axis,bearings, base and a full transmission components.Inner structure no gear, no rotating belt, no maintenance,more stable and longer lift. It’s the power source of the tyre killer system, mounted on the side of the main frame. When outage, can drop down or lift up the steel blade manually.
  • Electric control part: mainly include control board, transformer, relays, long distance remote control device and wire control device.



Specifications of automatic tire killer:



Material

Q235 steel/A3 steel

Surface treatment

Paint with reflective stripe

IP

IP67

Standard color

Black and yellow

Length

3000mm (standard)

Width

580mm (standard)

Height from ground

70～110mm

Min weight capacity

40T

Blade height

150mm

Blade thickness

10mm

Operation mode

Electromechanical

Working environment

-40℃～+70℃

Control mode

Short range wireless remote control/drive-by-wire

Control distance

≤100M

Up/Down speed

2s

Voltage

220V





Cases of automatic tire killer:



Remote Control Electrical Hydraulic 70T Tire Killer With CE Certificated 0



Why choose us:



1. Our Factory has 17 years OEM/ODM experiences in the line of access control turnstile and barrier.
2. Prompt delivery time. Usually we keep stock of standard model which ensure the prompt delivery.
3. We accept OEM/ODM orders to meet the requirements of clients.
4. Trial order is acceptable. Clients can buy sample and test it before bulk order.

5. Online technical support makes it carefree to be our business partner.

6. A variety of transportation for your choice. Sea shipment, air cargo or express, depends on your demand.

7. Factory can be visited on working days. Clients are warmly welcome to visit our factory.
