304 or 316 Stainless Steel Hydraulic Bollard with IP68 Protection and K6 to K12 Anti-Collision Level
  • 304 or 316 Stainless Steel Hydraulic Bollard with IP68 Protection and K6 to K12 Anti-Collision Level
  • 304 or 316 Stainless Steel Hydraulic Bollard with IP68 Protection and K6 to K12 Anti-Collision Level
  • 304 or 316 Stainless Steel Hydraulic Bollard with IP68 Protection and K6 to K12 Anti-Collision Level
  • 304 or 316 Stainless Steel Hydraulic Bollard with IP68 Protection and K6 to K12 Anti-Collision Level
  • 304 or 316 Stainless Steel Hydraulic Bollard with IP68 Protection and K6 to K12 Anti-Collision Level
  • 304 or 316 Stainless Steel Hydraulic Bollard with IP68 Protection and K6 to K12 Anti-Collision Level
  • 304 or 316 Stainless Steel Hydraulic Bollard with IP68 Protection and K6 to K12 Anti-Collision Level
304 or 316 Stainless Steel Hydraulic Bollard with IP68 Protection and K6 to K12 Anti-Collision Level

304 or 316 Stainless Steel Hydraulic Bollard with IP68 Protection and K6 to K12 Anti-Collision Level

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-HRB01
Product Details
Warranty:
1 Year
Package:
Wooden Box
Material Of Bollard:
304 Or 316 Stainless Steel
Working Temperature:
-35℃~75℃.
Protection Grade:
IP68
Anti-collision Level:
K6 To K12
Highlight:

automatic retractable bollards

,

automatic driveway bollards

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-7 working days after payment received
Payment Terms
T/T, Western Union, , L/C, D/A, D/P
Supply Ability
1000pcs per month
Product Description
Traffic Safety Automatic Retractable Bollards
304 / 316 Stainless Steel Bollard With 6mm - 10mm Thickness
Product Overview
High-quality 304 stainless steel hydraulic automatic rising traffic safety road bollard with 6mm to 10mm thickness, designed for superior perimeter security and access control.
Key Features
  • Automatic electric bollard operation
  • Electro-hydraulic-mechanical control system
  • Available in 304# or 316# Stainless Steel
  • Fast and durable performance
  • One year comprehensive warranty
Applications
These rising bollards provide environmental and aesthetic enhancements to perimeter security while maintaining high security levels. Ideal for university campuses, pedestrian walkways, parking lots, government buildings, sports stadiums, amusement parks, airports, shopping centers, hospitals, and apartment complexes.
Technical Features
  • Steady and safe operation with OMRON PLC control system
  • Fast and durable performance using hydraulic pressure
  • Manual lowering capability via handle valve during power failure
  • Manual raising capability via handle pump during power failure
  • Constructed from 304 or 316 stainless steel
  • Optimized frame structure with high anti-impact and loading capability
  • Protection key prevents mis-operation
Specifications
Parameter Specification
Bollard Material 304 or 316 stainless steel
Bollard Height 600 to 1000mm
Bollard Diameter 219 mm (168mm, 273 mm, 324mm available)
Bollard Thickness 6 mm (6 to 12 mm available)
Minimum Loading 70T
Anti-collision Level K6 to K12
Protection Grade IP68
System Dynamic Power 2.2 KW / 380V
Rising Time 3 ~ 6 s
Falling Time 3 ~ 6 s
Operation Mode Electromechanical
Working Temperature -35℃~75℃
Product Showcase

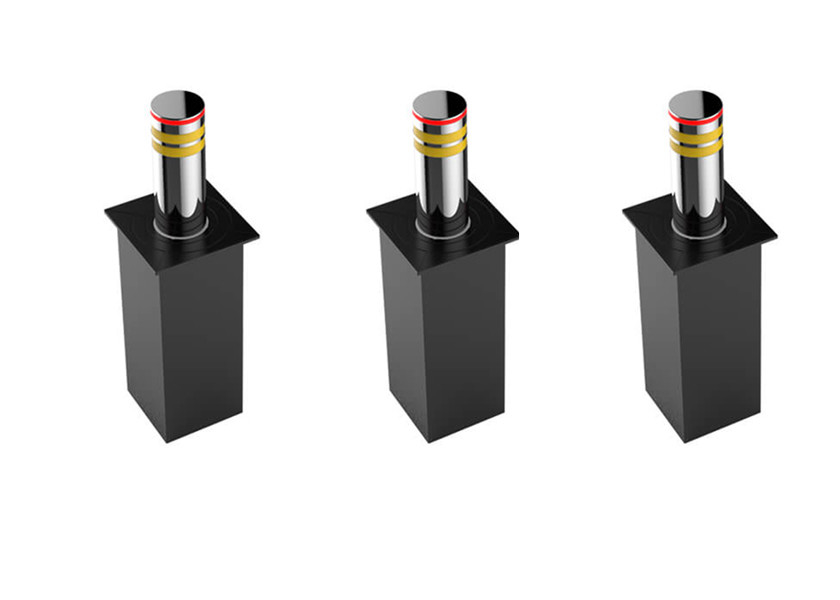

304 or 316 Stainless Steel Hydraulic Bollard with IP68 Protection and K6 to K12 Anti-Collision Level 0
Why Choose Our Bollards
  • 13 years OEM/ODM experience in access control systems
  • Prompt delivery with standard model stock availability
  • Custom OEM/ODM orders to meet specific requirements
  • Trial orders accepted for product testing
  • Comprehensive online technical support
  • Multiple transportation options (sea, air, express)
  • Factory visits welcome on working days
