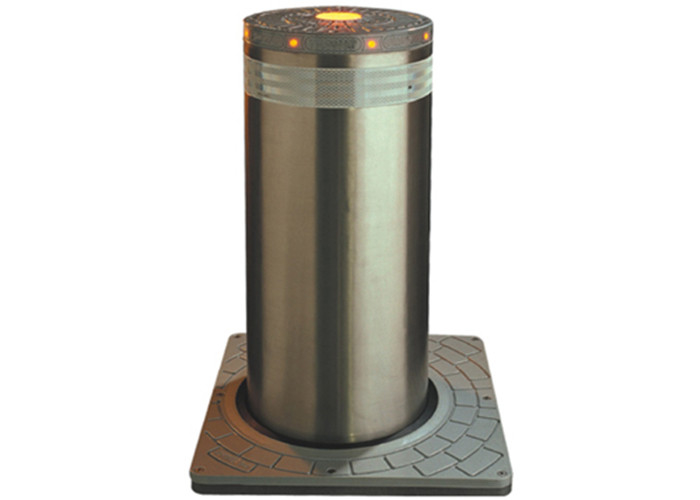

Advanced Waterproof Automatic Driveway Bollards Traffic Control System For Street
  • Advanced Waterproof Automatic Driveway Bollards Traffic Control System For Street
  • Advanced Waterproof Automatic Driveway Bollards Traffic Control System For Street
  • Advanced Waterproof Automatic Driveway Bollards Traffic Control System For Street
  • Advanced Waterproof Automatic Driveway Bollards Traffic Control System For Street
  • Advanced Waterproof Automatic Driveway Bollards Traffic Control System For Street
  • Advanced Waterproof Automatic Driveway Bollards Traffic Control System For Street
  • Advanced Waterproof Automatic Driveway Bollards Traffic Control System For Street

Advanced Waterproof Automatic Driveway Bollards Traffic Control System For Street

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-HRB01
Product Details
System Dynamic Power :
2.2 KW / 380V
OEM/ODM:
Supported
Rising Time:
3s To 6s
Working Temperature:
-35℃~75℃.
Falling Time:
3 ~ 6 S
Min. Loading:
70T
High Light:

automatic retractable bollards

,

automatic driveway bollards

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-7 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability
1000pcs per month
Product Description

Water-proof Traffic Control System Roadway Safety Hydraulic Autoamtic Bollards for Street



Introduction of automatic rising bollard:

  • Advanced mature Hydraulic pressure technologies
  • Connected with Computer Management OR Charging Systems

  • Micro-control technology makes bollards work stable and reliable,Easy integrate to other systems



Applications of automatic rising bollard:



Designed to bring desired environmental and aesthetic enhancements to perimeter security, securing perimeter

access without providing a sense of social disorder and active alarm measures. The system is designed to

withstand impacts and still operate, giving high security levels to all sites. It is ideal for university campuses,

pedestrian walkways, parking lots, government buildings, sports stadiums, amusement parks, airports, shopping

centers, hospitals and apartment complexes etc.





Features of automatic rising bollard



1. Steady and safe due to the OMRON PLC control system

2. Speedy and durable due to the use of hydraulic pressure

3. Can low down the bollards by handle valve in case of power failure or fault of automatic system

4. Can raise up the bollards by handle pump in case of power failure or fault of automatic system

5. Bollard is made of 304 or 316 stainless steel

6. Optimization of frame structure, high anti-impact capability, high loading capability

7. Protecting key avoids mis-operation



Specifications of automatic rising bollard:



Bollard Material

304 or 316 stainless steel

Bollard height

400 to 1000mm

Bollard diameter

168 mm (219mm, 273 mm, 324mm are available)

Bollard thickness

6 mm (6 to 12 mm are available)

Min. loading

70T

Anti-collision level

K6 to K12

Protection grade

IP68

System dynamic power

2.2 KW / 380V

Rising time

3 ~ 6 s

Falling time

3 ~ 6 s

Operation mode

Electromechanical

Working temperature

-35℃~75℃.





Cases of automatic rising bollard:



Advanced Waterproof Automatic Driveway Bollards Traffic Control System For Street 0



Why choose us:



1. Our Factory has 13 years OEM/ODM experiences in the line of access control turnstile and barrier.
2. Prompt delivery time. Usually we keep stock of standard model which ensure the prompt delivery.
3. We accept OEM/ODM orders to meet the requirements of clients.
4. Trial order is acceptable. Clients can buy sample and test it before bulk order.

5. Online technical support makes it carefree to be our business partner.

6. A variety of transportation for your choice. Sea shipment, air cargo or express, depends on your demand.

7. Factory can be visited on working days. Clients are warmly welcome to visit our factory.
