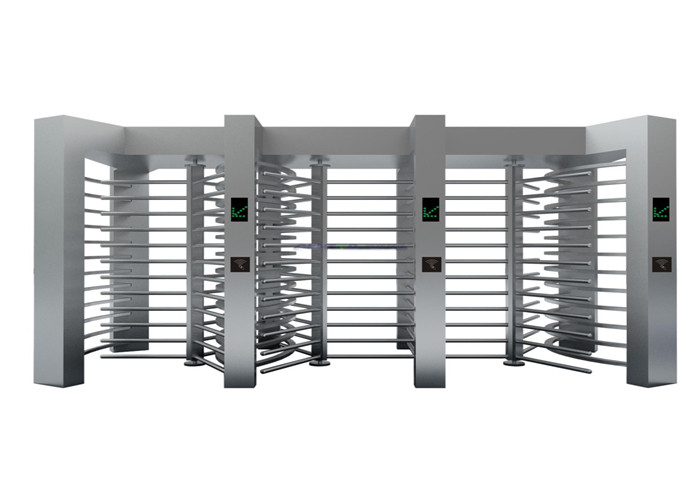

Remote Control Revolving Full Height Turnstile Barrier With 3 Lanes and Bi-directional Access
  • Remote Control Revolving Full Height Turnstile Barrier With 3 Lanes and Bi-directional Access
  • Remote Control Revolving Full Height Turnstile Barrier With 3 Lanes and Bi-directional Access
Remote Control Revolving Full Height Turnstile Barrier With 3 Lanes and Bi-directional Access

Remote Control Revolving Full Height Turnstile Barrier With 3 Lanes and Bi-directional Access

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FHT03
Product Details
Lane:
3 Lanes
Max Flow Rate:
25 To 30 Person Per Minute
Motor Voltage:
No Motor
Control Circuit:
DC 24V
Warranty:
2 Year
Direction:
Single Or Bi-direction
Highlight:

revolving turnstile

,

full height barriers

,

Remote Control Revolving Full Height Turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union,
Supply Ability
100pcs per month
Product Description
Remote Control Revolving Full Height Turnstile Barrier With Three Door
Professional OEM/ODM Three Door Automatic Revolving Remote Control Full Height Barrier

Manufacturer offering comprehensive OEM/ODM services for industrial access control solutions.

Full Height Turnstile Introduction
  • Bi-directional or uni-directional passage control
  • Automatic arm locking/unlocking during power failure (factory pre-set)
  • Self-lock function automatically secures arm after passenger passage
Applications
Full height turnstile systems are extensively deployed in entrance/exit passages of factories, airports, railway stations, metro stations, bus stations, sports centers, prisons, hotels, hospitals, fitness centers, and similar facilities.
Key Features
  • Weather-resistant housing with anti-corrosion coating, available in 304 or 316 stainless steel
  • Mechanical drive unit with solenoid locking mechanism eliminates expensive electric motors and reduces maintenance costs
  • Intelligent rotation system: auto-rotates to next position if moved beyond halfway, returns to current position if moved less than halfway
  • Built-in adjustable tensioner controls rotation force to prevent over-rotation
  • Light-touch operation suitable for all users including elderly and children
  • Configurable for bi-directional or uni-directional operation
  • Key-locked housing prevents tampering
  • Innovative mounting surface ensures simple installation for system integrators
  • Compatible with various access control devices: IC/ID card readers, barcode scanners, fingerprint systems (access controller required)
  • Automatic reset function cancels user authority if passage isn't completed within preset time (default 5 seconds)
  • Hydraulic buffer mechanism ensures smooth, quiet operation without impact noise
Technical Specifications
Item Specification
Power Supply AC220±10%V 50Hz/AC110±10% 60Hz
Power Consumption 40W
Access Device Input Voltage Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA
Motor No motor
Maximum Flow Rate 25 to 30 persons per minute
Arm Length 500mm to 600mm
Working Temperature -20°C to 60°C
Application Cases
Remote Control Revolving Full Height Turnstile Barrier With 3 Lanes and Bi-directional Access 0
Why Choose Our Turnstile Solutions
  • 13 years of OEM/ODM experience in access control turnstile and barrier manufacturing
  • Prompt delivery with standard model inventory availability
  • Custom OEM/ODM orders to meet specific client requirements
  • Sample orders accepted for testing before bulk purchasing
  • Comprehensive online technical support for business partners
  • Multiple transportation options: sea shipment, air cargo, or express delivery
  • Factory visits welcome during working days
