24V DC Brushless Motor Acrylic Flap Turnstile CE Approved Waist High Turnstile for Disable People
  • 24V DC Brushless Motor Acrylic Flap Turnstile CE Approved Waist High Turnstile for Disable People
24V DC Brushless Motor Acrylic Flap Turnstile CE Approved Waist High Turnstile for Disable People

24V DC Brushless Motor Acrylic Flap Turnstile CE Approved Waist High Turnstile for Disable People

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FB02
Product Details
Power Supply:
AC220±10%V 50Hz/AC110±10% 60Hz
Reset Time When Power On:
3s
Flap Length:
270mm
Drive Motor:
DC 24V
Standard:
CE Approved
Direction:
Can Be Set As Single Or Double
Flap Material:
Acrylic
Highlight:

automatic flap barrier

,

waist high turnstile

,

Pedestrian Barcode Scanner Flap Turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T or western Union
Supply Ability
3,000pcs per month
Product Description
Pedestrian Barcode Scanner Flap Turnstile Waist High Turnstile For Disable People
24V DC brushless motor wide passage barcode scanner flap turnstile gate for disable people
Keywords: wing barrier, swing barrier, flap barrier, security wing barrier, safety wing barrier, access wing barrier, access barrier, auto gate, arms gate, arms turnstile, rotate gate, rotate turnstile gate, arm fall turnstile gate, pedestian access gate, traffic gate, waist height turnstile, half height turnstile, full height turnstile, speed gate, entrace turnstile, entrance gate, turnstile, tripod turnstile, security turnstile, safety turnstile, turnstile gate, access control turnstile, access control gate, access gate
Flap Turnstile Gate Introduction
The flap turnstile gate provides intelligent management of pedestrian access control, representing an upgraded version of traditional tripod turnstiles and swing barriers. This system delivers sophisticated control and management capabilities for pedestrian access by integrating with various identification systems and incorporating reliable security protection equipment, alarm systems, and directional indicators.
Flap Turnstile Gate Features
  • Fault detection and alarm functions for easy use and maintenance
  • Programmable running status controlled via built-in keyboard on main board
  • Mechanical anti-pinch function with automatic motor shutdown and delayed reset
  • Anti-breakthrough function with automatic locking until opening signal received
  • Synchronization functions for dual gate equipment
  • Automatic reset function cancels user authority after preset time
  • Configurable as normally open or normally closed operation
  • Compatible with various card readers: IC/ID cards, barcodes, fingerprints (access controller required)
  • Direction settings for single-direction or bi-directional operation
  • LED direction indicator for clear user guidance
  • Automatic opening during power failure and closing when power restores for fire safety compliance
  • Alarm functions for illegal intrusion and reverse intrusion detection
  • Optional counter function
  • Infrared photocell support for anti-pinch and reset functionality
Technical Specifications
Item Specification
Power supply AC220±10%V 50Hz/AC110±10% 60Hz
Access device input voltage Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA
Motor voltage DC 24V (brush motor)
Max flow rate 25 to 30 persons per minute
Flap opening / closing time 1s
Reset time when power on 3s
Working temperature -20°C~60°C

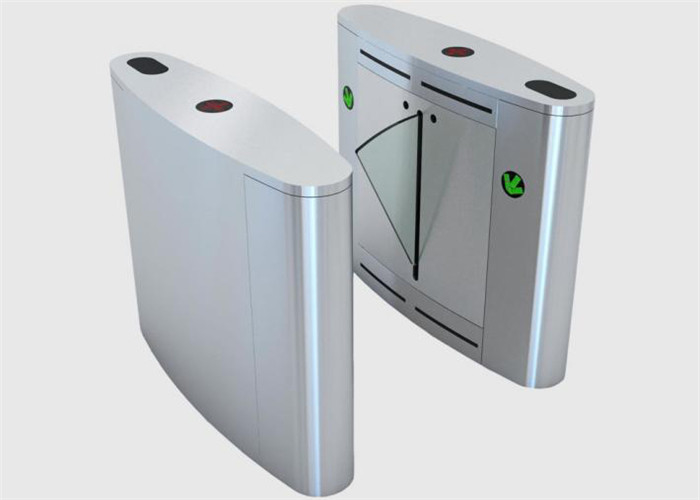

Product Image
24V DC Brushless Motor Acrylic Flap Turnstile CE Approved Waist High Turnstile for Disable People 0
Why Choose Our Flap Turnstile Gates
  • 13 years of OEM/ODM experience in access control turnstiles and barriers
  • Prompt delivery with standard model inventory
  • OEM/ODM orders accepted to meet specific client requirements
  • Trial orders available for testing before bulk purchases
  • Online technical support for seamless partnership
  • Multiple transportation options: sea shipment, air cargo, or express delivery
  • Factory visits welcome on working days
