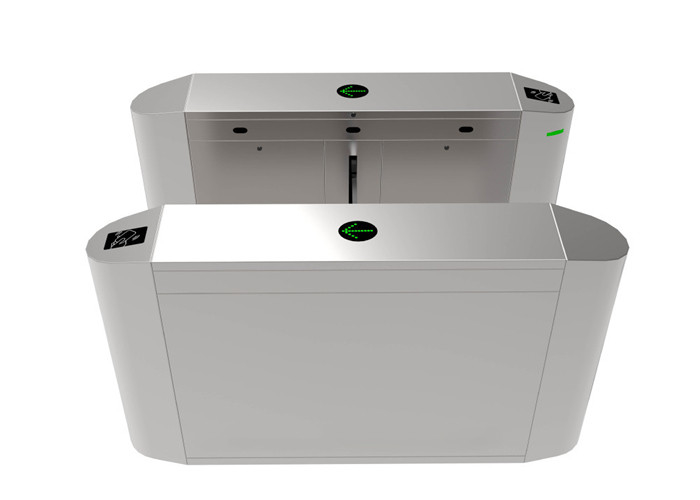

Mechanical Anti Pinch Retractable Barrier Gate Speed Gate Turnstile With LED Light
  • Mechanical Anti Pinch Retractable Barrier Gate Speed Gate Turnstile With LED Light
  • Mechanical Anti Pinch Retractable Barrier Gate Speed Gate Turnstile With LED Light

Mechanical Anti Pinch Retractable Barrier Gate Speed Gate Turnstile With LED Light

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FB02
Product Details
Max Flow Rate:
25 To 30 Person Per Minute
Working Temperature:
-20°C~60°C
Size Of Housing:
1200*300*1000mm
Material Of Case:
304 Or 316 Stainless Steel
Access Device Input Voltage:
Dry Contact Or 12V Electrical Level Signal
Normal Life:
5 Million Cycles
Reset Time When Power On:
3s
Flap Material:
Acrylic
Highlight:

automatic flap barrier

,

flap turnstile

,

Anti Pinch Retractable Barrier Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T or western Union
Supply Ability
3,000pcs per month
Product Description

Fast speed arm retractable double passage CE certificate flap barrier gate with LED light



Introduction of Flap Barrier Gate:



1.With function of self-examine and alarm, it is convenient for maintenance and use

2. Automatically open the gate when power off and automatically close when power on

3. Arms are automatically locked untill opening signal is received.



Applications of Flap Barrier Gate:



  • Banks, insurance companies
  • Governmental and institutional establishments
  • Office buildings, registered offices, administrative sites...
  • Schools, universities and colleges
  • Sensitive sites : military, nuclear, pharmaceutical, computer centers...
  • Airports



Features of Flap Barrier Gate:



1. Fault detection and alarm functions, easy to use and maintenance.

2. The running status can be programmed and controlled with the built-in keyboard on the main board.

3. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop working automatically within the prescribed time and reset again after the default delay (till fully reset).

4. Anti-breakthrough function. The gate is locked automatically until opening signal received.

5. Synchronization functions (for dual gate equipment).

6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.

7. Gate can be set as normally open or normally closed.

8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Access controller needed).

9. Direction can be set as single-direction or bi-direction.

10. LED direction indicator.

11. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.

12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.

13. Counter function (optional).

14. Support infrared photocell for anti-pinch and reset function.



Specifications of Flap Barrier Gate:



Item

Specification

Power supply

AC220±10%V 50Hz/AC110±10% 60Hz

Access device input voltage

Dry contact or 12V electrical level signal

or > 100ms 12V impulse signal, driving current > 10mA

Motor voltage

DC 24V (brush motor)

Max flow rate

25 to 30 person per minute

Flap opening / closing time

1s

Reset time when power on

3s

Working temperature

-20°C~60°C



Case of Flap Barrier Gate:



Mechanical Anti Pinch Retractable Barrier Gate Speed Gate Turnstile With LED Light 0



Why choose us:



1. Our Factory has 13 years OEM/ODM experiences in the line of access control turnstile and barrier.
2. Prompt delivery time. Usually we keep stock of standard model which ensure the prompt delivery.
3. We accept OEM/ODM orders to meet the requirements of clients.
4. Trial order is acceptable. Clients can buy sample order and test it before bulk order.

5. Online technical support makes it carefree to be our business partner.

6. A variety of transportation for your choice. Sea shipment, air cargo or express, depends on your demand.

7. Factory can be visited on working days. Clients are warmly welcome to visit our factory.
