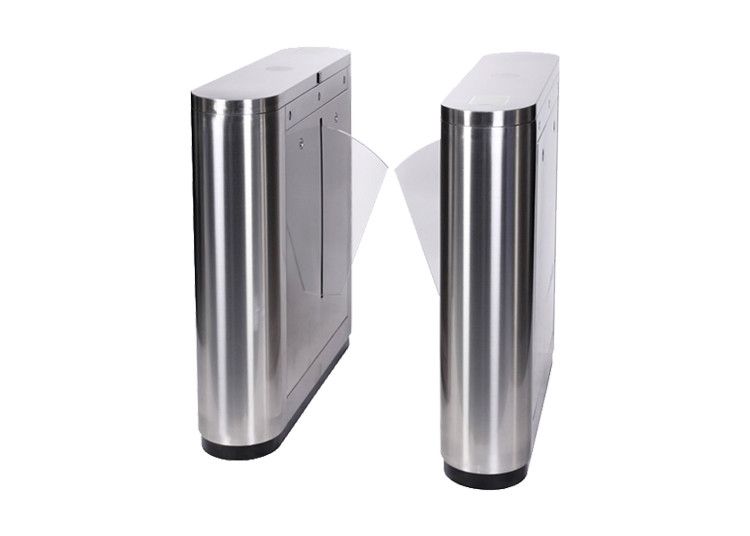

RFID Card Reader 27cm Arm Waist Height Barrier DC24V Retractable Entrance Speed Gate
  • RFID Card Reader 27cm Arm Waist Height Barrier DC24V Retractable Entrance Speed Gate
  • RFID Card Reader 27cm Arm Waist Height Barrier DC24V Retractable Entrance Speed Gate
  • RFID Card Reader 27cm Arm Waist Height Barrier DC24V Retractable Entrance Speed Gate

RFID Card Reader 27cm Arm Waist Height Barrier DC24V Retractable Entrance Speed Gate

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FB02
Product Details
Power Supply:
AC220±10%V 50Hz/AC110±10% 60Hz
Application:
Indoor Or Outdoor With Tent
Arm Length:
27cm
Material Of Case:
304 Or 316 Stainless Steel
Max Flow Rate:
25 To 30 Person Per Minute
Normal Life:
5 Million Times
Battery:
Yes
Highlight:

27cm Arm Waist Height Barrier

,

RFID Card Reader Waist Height Barrier

,

DC24V Retractable Entrance Speed Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T or western Union
Supply Ability
3,000pcs per month
Product Description

RFID Card Reader Waist Height Barrier Retractable Entrance Speed Gate



Introduction of Flap Barrier Gate:



Sinomatic flap barrier can be compatible with IC card , ID card ,barcode card , fingerprint reading card recognition device used for staff, provide civilized , orderly access methods; effectively manage the access of staff . Can be widely used in the station, wharf subway , factories, office building , hotel , clubs, intelligent community , enterprises and institution that need intelligent access management.



Applications of Flap Barrier Gate:



Sinomatic flap barrier gate can be widely used in the station, wharf subway , factories, office building , hotel , clubs, intelligent community , enterprises and institution that need intelligent access management.



Features of Flap Barrier Gate:



1. Fault detection and alarm functions, easy to use and maintenance.

2. The running status can be programmed and controlled with the built-in keyboard on the main board.

3. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop working automatically within the prescribed time and reset again after the default delay (till fully reset).

4. Anti-breakthrough function. The gate is locked automatically until opening signal received.

5. Synchronization functions (for dual gate equipment).

6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.

7. Gate can be set as normally open or normally closed.

8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Access controller needed).

9. Direction can be set as single-direction or bi-direction.

10. LED direction indicator.

11. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.

12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.

13. Counter function (optional).

14. Support infrared photocell for anti-pinch and reset function.



Specifications of Flap Barrier Gate:



Item

Specification

Power supply

AC220±10%V 50Hz/AC110±10% 60Hz

Access device input voltage

Dry contact or 12V electrical level signal

or > 100ms 12V impulse signal, driving current > 10mA

Motor voltage

DC 24V (brush motor)

Max flow rate

25 to 30 person per minute

Flap opening / closing time

1s

Reset time when power on

3s

Working temperature

-20°C~60°C



Case of Flap Barrier Gate:



RFID Card Reader 27cm Arm Waist Height Barrier DC24V Retractable Entrance Speed Gate 0



Why choose us:



1. Our Factory has 19 years OEM/ODM experiences in the line of access control turnstile and barrier.
2. Prompt delivery time. Usually we keep stock of standard model which ensure the prompt delivery.
3. We accept OEM/ODM orders to meet the requirements of clients.
4. Trial order is acceptable. Clients can buy sample order and test it before bulk order.

5. Online technical support makes it carefree to be our business partner.

6. A variety of transportation for your choice. Sea shipment, air cargo or express, depends on your demand.

7. Factory can be visited on working days. Clients are warmly welcome to visit our factory.
