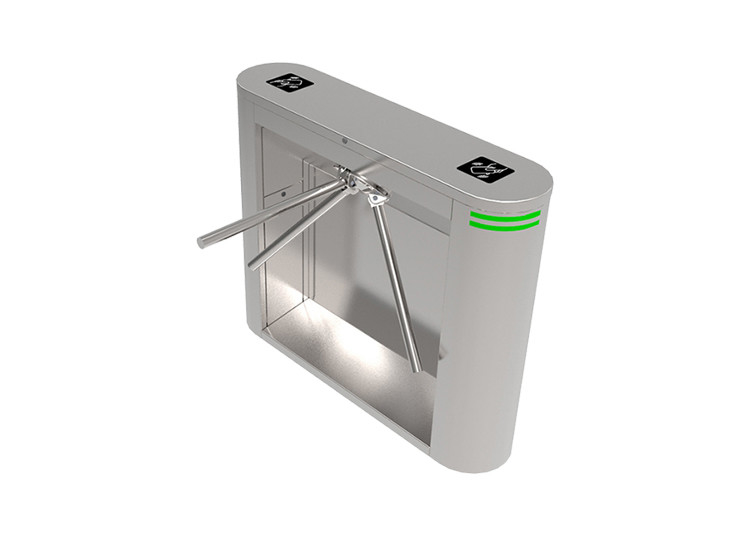

Fitness center member control automatic tripod turnstile gate with green light indicator
Introduction of Tripod Turnstile Gate:
Fitness center tripod turnstile gate model SN-TT03 has different optional configurations for the applications of
building conditions anf for the control of all kinds of passage entrance-exits.
Applications of Tripod Turnstile Gate:
Tripod turnstile gate model SN-TT03 is fit for indoor usage (outdoor must with tent). They are optimized economical
solution for railway and bus station, school, colleges, commercial building, concert, stadium, museum, bank and etc.
Features of Tripod Turnstile Gate:
1.Mechanical drive unit with solenoid locking mechanism eliminate the use of expensive electric motor and reduce
maintenance cost.
2.If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will
auto-rotate back to the current idle position.
3. Built in adjustable tensioner to control rotation force to minimize over rotation. Arm just need to be pushed
lightly to rotate therefore even elderly or children are able to use the turnstile.
4.Turnstile can be configured to be bi-directional or uni-directional. Housing is locked with special key to avoid
tampering.
5. Innovative and unique mounting surface ensures simple and convenient installation for system integrator.
6. Can be used with variety of access control devices: IC / ID card readers, bar-code scanner, fingerprints, etc.
(Access controller needed)
7. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds),
the system will cancel the authority of the current user automatically.
8. The mechanism is equipped with an automatic regulated hydraulic buffer device. There is no noise and impact
when running.
Specifications of Tripod Turnstile Gate
Item |
Specification |
Power supply |
AC220±10%V 50Hz/AC110±10% 60Hz |
Power consumption |
40W |
Access device input voltage |
Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA |
Motor |
No motor |
Max flow rate |
25 to 30 person per minute |
Arm length |
510mm |
Working temperature |
-20°C~60°C |
Cases of Tripod Turnstile Gate:
