Stainless Steel Mechanical Drive Tripod Turnstile Gate with 40W Power Consumption for Indoor and Outdoor Use
  • Stainless Steel Mechanical Drive Tripod Turnstile Gate with 40W Power Consumption for Indoor and Outdoor Use
  • Stainless Steel Mechanical Drive Tripod Turnstile Gate with 40W Power Consumption for Indoor and Outdoor Use
  • Stainless Steel Mechanical Drive Tripod Turnstile Gate with 40W Power Consumption for Indoor and Outdoor Use
Stainless Steel Mechanical Drive Tripod Turnstile Gate with 40W Power Consumption for Indoor and Outdoor Use

Stainless Steel Mechanical Drive Tripod Turnstile Gate with 40W Power Consumption for Indoor and Outdoor Use

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-TT02
Product Details
Direction Indication:
Yes
Max Flow Rate:
About 30 Person Per Minute
Card Reader Window:
2
Application:
Indoor Or Outdoor(with Tent)
Thickness Of Body:
1.2mm
Motor:
NO
Warranty:
Default 1 Year
Highlight:

controlled access turnstiles

,

turn style door

,

Tripod Turnstile Gate For Hotel

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T,Western Union,,D/P,L/C
Supply Ability
3,000pcs per month
Product Description

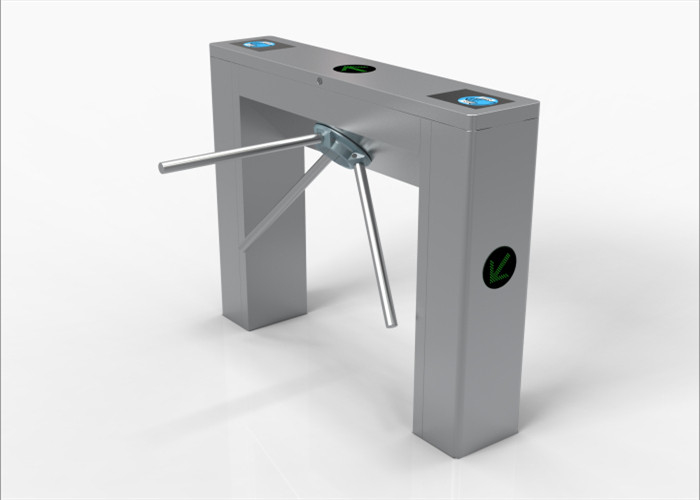

Unique Mechanical Stainless Steel Tripod Turnstile Gate
Stainless steel dry contact input 40W power consumption tripod barrier gate designed for hotel lobbies and commercial access control applications.
Product Overview
The unique mechanical drive design of our tripod turnstile gate allows the arm to be pushed effortlessly and auto-rotate back without requiring expensive electric motors, providing reliable and cost-effective access control.
Applications
Heavy duty tripod turnstile gate model SN-TT02 is suitable for indoor usage (outdoor installation requires protective covering). This economical solution is optimized for swimming pools, schools, supermarkets, metro stations, bus stations, and similar environments.
Key Features
  • Mechanical drive unit with solenoid locking mechanism eliminates expensive electric motors and reduces maintenance costs
  • Automatic rotation system: rotates to next idle position when arm moves beyond half-way, returns to current position when rotated less than half-way
  • Built-in adjustable tensioner controls rotation force to minimize over-rotation
  • Configurable for bi-directional or uni-directional operation
  • Secure housing locked with special key to prevent tampering
  • Innovative mounting surface ensures simple and convenient installation
  • Compatible with various access control devices: IC/ID card readers, bar-code scanners, fingerprint readers (access controller required)
  • Automatic reset function cancels user authority if passage isn't completed within preset time (default: 5 seconds)
  • Automatic regulated hydraulic buffer device ensures quiet, impact-free operation
Technical Specifications
Power Supply AC220±10%V 50Hz/AC110±10% 60Hz
Power Consumption 40W
Access Device Input Voltage Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA
Motor No motor
Maximum Flow Rate 25 to 30 persons per minute
Arm Length 510mm
Working Temperature -20°C to 60°C
Installation Examples
Stainless Steel Mechanical Drive Tripod Turnstile Gate with 40W Power Consumption for Indoor and Outdoor Use 0
Why Choose Our Tripod Turnstile Gates
  1. Over 20 years of OEM/ODM experience in access control turnstile and barrier manufacturing
  2. Prompt delivery with standard model stock availability
  3. Custom OEM/ODM orders to meet specific client requirements
  4. Trial orders accepted for product testing before bulk purchasing
  5. Comprehensive online technical support for business partners
  6. Multiple transportation options: sea shipment, air cargo, or express delivery
  7. Factory visits welcome during working days
