Place of Origin | Shenzhen, China. |
Brand Name | SINOMATIC |
Certification | CE/ ISO |
Model Number | SN-BO-219 |
GENERAL INFORMATION

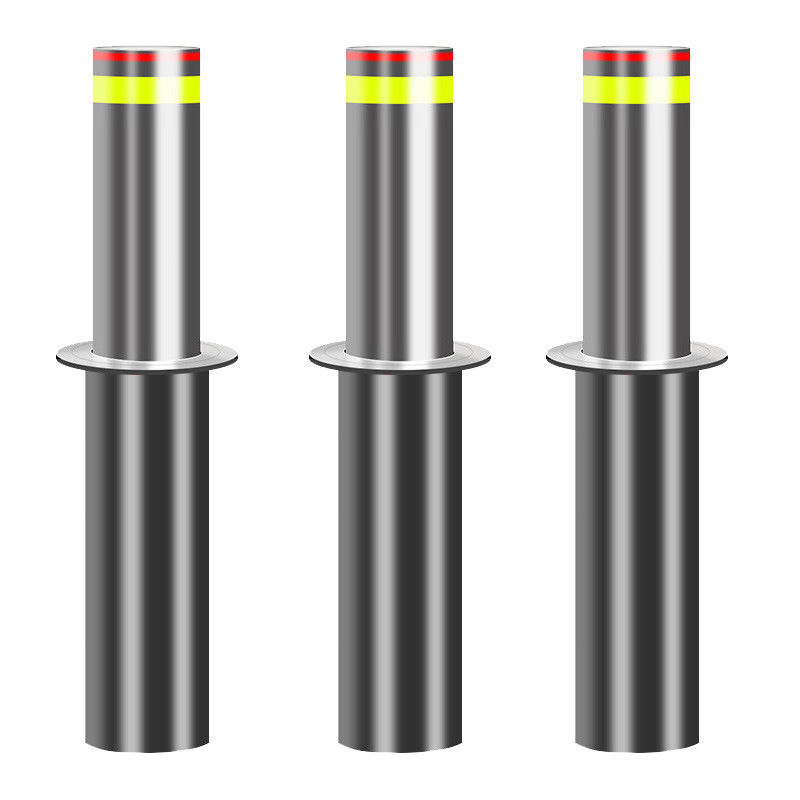

SINOMATIC BO series hydraulic retractable bollards are designed for high security vehicle entrances, military, industrial, governmental and commercial buildings or streets which are closed to vehicle traffic between certain hours of the day.
The drive unit is hydraulic, but in case of power failure bollard can be lowered with the rechargeable battery which put inside the control box. With the help of PLC controlled electronics, raise/lower function can be achieved by every kind of card readers, biometric readers like fingerprint or hand shape, radio control, on/off key switch etc. Besides, safety accessories like photocells, inductive loop detectors, flashing lights or red/green lights can be integrated to the system.
SINOMATIC is your one-stop headquarters for high-quality automatic bollard solutions. We feature a wide selection of stainless steel automatic bollard systems with an assortment of drive style and mounting options, so you can find a solution tailor-made to your unique security and traffic control needs. Interested in seeing which if Automatic Bollards are the right solution for you? Learn more from our team, they are here to help.
Working Applications of Automatic Bollards
Automatic bollards are beneficial in any area where access requirements change over time. For example, some commercial locations may need to retract their bollards during the busiest times of the day but keep them raised when closed. A site may also use bollards to block traffic during a special event, including preventing traffic from entering a designated bus lane.
Many organizations are increasingly choosing bollards over lift gates. While some lift gates act solely as a visual deterrent, automatic bollards offer a more durable and substantial blockade for areas that need to restrict access. In addition, bollards are becoming more popular in residential driveways because of their many advantages.
Several specific applications include:
Parking Lots and Garages
When parking lots are full, you need a way to close off entrances temporarily. Automatic bollards offer an excellent solution. Automatic bollards are also a helpful addition to private parking lots where employees or residents who have access can lower the bollards on command.
Automatic bollards work well in these cases because they double as a physical and visual barrier. They can also significantly improve the appearance and aesthetics of locations that use temporary or makeshift roadblocks.
Public Facilities
Automatic bollards are also the perfect solution for securing entrances to public facilities from traffic before and after opening hours. For example, a park, zoo or museum can have automatic bollards in place when closed to the public and have the bollards descend into the ground during open hours.
Bollards also work well in public facilities to separate designated pedestrian spaces from areas allowing vehicle access.
Business Delivery Zones
Businesses that accept deliveries may find automatic bollards especially helpful since they can block off parking lot sections to ensure they are clear for delivery trucks. The automatic bollards can be retracted when the shipment arrives so the truck driver can access the delivery zone.
Bollards with different colors, covers and caps can also help direct delivery drivers toward loading and unloading areas.
Emergency Access Lanes
Any facilities with emergency access areas or fire lanes can use retractable bollards to ensure these zones are kept clear at all times in an emergency. These facilities include banks and government buildings that need protection from high-security bollards with the flexibility of retracting them so emergency vehicles can quickly gain access.
Automatic bollards also work well in the emergency areas of hospitals that designate specific areas for ambulances. Operators can retract the bollards to let vehicles in and raise them to keep traffic out.
Private Driveways
Some homeowners employ gates or other security measures to block their driveway from unauthorized traffic. Automatic bollards are a great option to consider for this purpose. You can quickly and conveniently lower the bollards when you’re pulling into or leaving your driveway and then allow them to ascend again to keep uninvited vehicle access off your property.
Automatic bollards in private driveways also help eliminate vehicle theft. These barriers send a message to thieves that a property is well-protected and decrease the probability of an attempted robbery. Automatic bollards also create a barrier that blocks a thief from driving your car off your driveway.
PRODUCT DETAILS
1. System:electric-hydraulic system
2. Max passing pressure: 80T to 120T trucks
3. Power supply:AC220V 50Hz Integrated(AC110V optional)
4. Power(w):350W Integrated
5. Up time:4.5S
6. Down time:3S
7. Working temperature:-30℃~75℃
8. Storage Environment:-10℃~65℃(water-proof, damp-proof,dust-proof)
9. Material:304 stainless steel
10. Rising height:600mm standard, Max. can be 1000mm
11. Bollard Thickness: 6mm standard ( 8mm, 10mm, 15mm, 20mm are optional)
12. Diameter:219mm Standard ( 168mm, 273mm, 324mm are optional)
13. Structure :With load-bearing steel beam column, anti-collision steel beam column, 4 navigation rod
14. Integrated electrical mechanism : stroke 600mm, Cylinder outer diameter 60mm, Rod diameter:16mm.
15. 6k Mirror tube(optional)
16. LED light (optional)
17. Reflective sticker: 1 or 2 strips
18. Link-control interface
19. In case of a power outage, the bollards can be manually lowered down
20. IP rate: IP68
21. Net Weight:60±KG Integrated
22. In rising and falling,reversible operation is available
23. Device running noise≤60decibel
24. Waterproof integrated hydraulic device drive
25. The hydraulic cylinder is double sealed to ensure a waterproof rating
26. Hydraulic drive comes with hydraulic lock
27. PLC programming command control box (chip control box optional)
28. Solenoid valve voltage 24V
29. Remote control distance 50m(Based on the environment)
30. The control box displays text adjustable (Up, Down, Action, Time control is adjustable)
31. Text display with Chinese and English bilingual langague.
32. PLC built-in encryption system
33. Water immersion performance:48 hours without leakage and working well
TECHNICIAL SPECIFICATIONS
Product Name
|
Automatic bollards
|
Material
|
304 # Stainless Steel
|
Product Dimension
|
Ф350 X H800mm
|
Bollard Diameter
|
219mm (273mm, 324mm)
|
Bollard Height
|
600mm (800mm, 1000mm)
|
Cylinder Thickness
|
6mm (8mm, 10mm, 15mm, 20mm)
|
Flange Diameter
|
350mm
|
Flange Thickness
|
10mm
|
Casing underground Depth
|
800mm (1100mm)
|
Cylinder underground Diameter
|
300mm (350mm)
|
Movement Principle
|
Hydraulic driving
|
Bollard Stainless Steel Finish
|
stoving varnish
|
Refllecting adhensive strip
|
3M brand, optional colors, customized Logo
|
LED light
|
Customized colors
|
Type of Use
|
Intensive
|
Service life
|
5 to 10 years
|
Operating Temperature
|
-35℃~+75℃
|
Automatic bollard features
High security and anti-collision ability
Pneumatic air pump in control cabinet could procide large power safely for a long time.
Electronic control, automatic rise/fall
High system independence
Automatic bollard Reflective band
Various color options for Glossee aveolate reflective band; only need weak light to be clearly visible at night.
Automatic bollard Materials Available
304 stainless steel, 316 stainless steel and carbon steel with electrophoresis spray paint.
Automatic bollard Flange
Anti-skid flange with unique some pattern design. Compatible with various road surface styles. Built-in PA orientation.
Automatic bollard Top cap
Its simple integration design is compatible with all kinds of architectural style. Excellent workmanship is amenable to any close attack.
