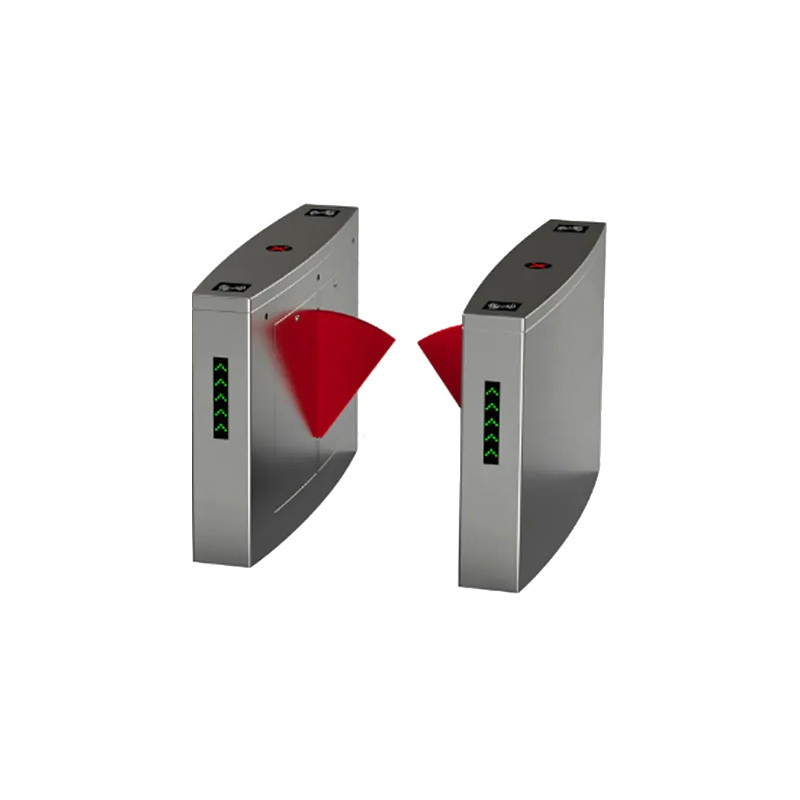

Waist High Security Flap Turnstile Gate Gym Retractable Speed Gate Turnstile
| Place of Origin | Shenzhen, China. |
|---|---|
| Brand Name | SINOMATIC |
| Certification | CE/ ISO |
| Model Number | SN-FB01 |
| Minimum Order Quantity | Sample order accepted |
| Price | negotiable |
| Packaging Details | Plywood box/Pallet |
| Delivery Time | 5-10 working days after payment received |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Ali pay |
| Supply Ability | 1,000 pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power Input | AC100V~240V; DC24V | Housing Material | SS304/SS316 Optional |
|---|---|---|---|
| Passing Speed | 30~35 Person/minute | IP Rate | 44 |
| Access Control | Face, Fingerprint, Barcode, RFID Etc | Warranty | 12 Months |
| High Light | Waist High Flap Turnstile Gate,Gym Flap Turnstile Gate,Retractable Speed Gate Turnstile |
||
Product Description
Waist High Security Rfid Access Control Automatic Gym Turnstile Retractable Speed Gate Barrier
PRODUCT DESCRIPTION
Flap Barrier is designed to provide access control and complete security in the public passages. It demotes the way out of the security dilemma, and it provides safety and security to the employees of an organization and also to the assets of a business. At the same time, it gives a high level of access to the open public and to the visitors. This has a big benefit for the people whose entire revenue depends on a constant pedestrian flow while safeguarding and securing its assets and personnel at a time.
PRODUCT APPLICATION
Flap Barrier is the automatic gates you will find on the stations, office entrances, airports, and also in other many places. It is a device for emergency control. This allows an automatic opening of its two wings while people connect with it with the access cards and close down in a minute after that.
TECHNICIAL SPECIFICATIONS
| ITEM | SPECIFICATIONS |
|
Size
|
1200*300*980mm
|
|
Material
|
Thickness 1.5mm SS304
|
|
Passage direction
|
Single directional/Bi-directional
|
|
Pass rate
|
30-35 persons/minute
|
|
Operating time
|
0.2 seconds
|
|
Power input
|
AC100-240V,50/60HZ
|
|
Working humidity
|
30%~95%
|
|
Working temperature
|
-20℃~+60℃
|
|
Communication interface
|
RS485, Dry contact
|
|
Infrared sensor
|
4 pairs
|
|
MCBF
|
5,000,000 Cycles
|
|
Application
|
Airports, Hotels, Governemnt Halls, etc
|
MAIN FUNCTION AND FEATURES
1. Fault detection and alarm functions, easy to use and maintenance.
2. The running status can be programmed and controlled with the built-in keyboard on the main board.
3. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop working automatically within the prescribed time and reset again after the default delay (till fully reset).
4. Anti-breakthrough function. The gate is locked automatically until opening signal received.
5. Synchronization functions (for dual gate equipment).
6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds)the system will cancel the authority of the current user automatically.
7. Gate can be set as normally open or normally closed.
8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Access controller needed).
9. Direction can be set as single-direction or bi-direction.
10. LED direction indicator.
11. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.
12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.
13. Counter function (optional).
14. Support infrared photocell for anti-pinch and reset function.
