Single Lane RFID Card Access Control Full Height Turnstile

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FHT01
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 3,00pcs per month
Product Details
Rotating Degree 120 Degree(90 Degree Optional) Arm Diameter 38mm
Control Circuit DC24 Working Temperature -20°C~60°C
Housing Material Stainless Steel/mild Steel Passage About 600mm
High Light

RFID Card Access Control Turnstile

,

Single Lane Full Height Turnstile

,

RFID Card Control Full Height Turnstile

Leave a Message
Product Description

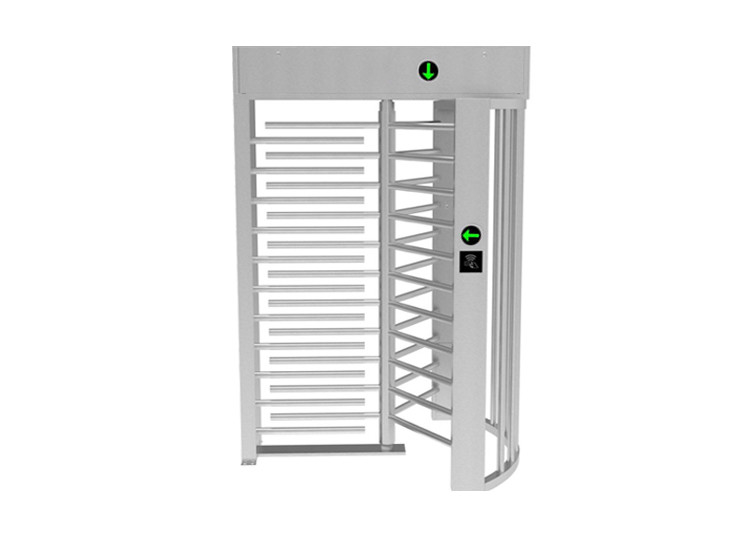

Single Lane RFID Card Access Control System Affordable Price 600mm Clearance Full Height Turnstiles





Introduction of Full Height Turnstile:



Full height security turnstiles is suitable for robust access control, well suited to exterior and interior use at football stadiums, sport facilities and high risk sites.



The SINOMATIC turnstile full height gate is an economical version of a robust turnstile. The full height gate has a light-weight steel dimensional construction with high quality, trouble-free and simple operation. It’s ideal for high security applications where the fully automatic and unmanned identification of pedestrians are required



Single Lane RFID Card Access Control Full Height Turnstile 0



Technician specifications



Model

SN-FHT01

Size
2300*1450*2300mm
Material
1.2mm SUS304
Passage Width
About 600mm (customizable)
Passage direction
Single directional/Bi-directional
Pass rate
30-35 persons/minute
Operating time
1 seconds
Power input
AC100-240V, 50/60HZ
Working voltage
24V
Working humidity
30%~95%
Working temperature
-40℃~+70℃
Working environment
Indoor/outdoor
Communication interface
Dry contact
Service life
>5 million cycles



Main function and features



1. Rainproof housing, anti-corrosion coating iron, 304 or 316 stainless steel.



2. Mechanical drive unit with solenoid locking mechanism eliminate the use of expensive electric motor and reduce maintenance cost.



3. If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will auto-rotate back to the current idle position.



4. Built in adjustable tensioner to control rotation force to minimize over rotation. Arm just need to be pushed lightly to rotate therefore even elderly or children are able to use the turnstile.



5. Turnstile can be configured to be bi-directional or uni-directional. Housing is locked with special key to avoid tampering.



6. Innovative and unique mounting surface ensures simple and convenient installation for system integrator.



7. Can be used with variety of access control devices: IC / ID card readers, bar-code scanner, fingerprints, etc. (Access controller needed)



8. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.



9. The mechanism is equipped with an automatic regulated hydraulic buffer device. There is no noise and impact when running.



Case reference

Single Lane RFID Card Access Control Full Height Turnstile 1
