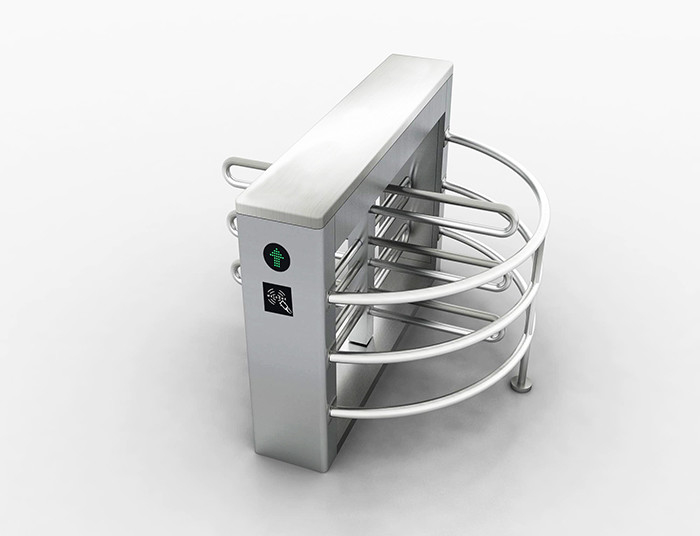

Automatic Rotary Half Height Turnstile Remote Control 304 Stainless Steel
  • Automatic Rotary Half Height Turnstile Remote Control 304 Stainless Steel
  • Automatic Rotary Half Height Turnstile Remote Control 304 Stainless Steel

Automatic Rotary Half Height Turnstile Remote Control 304 Stainless Steel

Place of Origin Shenzhen, China.
Certification CE/ ISO
Model Number SN-HHT01
Product Details
Pass Speed:
30 Person/minute
Service Life:
5 Million Times At Least
IP Rate:
Frame Materia:
Working Mechanism:
Heavy Duty
Control Voltage:
High Light:

Automatic Rotary Half Height Turnstile


Remote Control Half Height Turnstile


304 Stainless Steel Waist Height Turnstiles

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-7working days after payment received for sample
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
3,000pcs per month
Product Description

304 Stainless Steel Remote Control Automatic Rotary Half Height Turnstile


Product description


This waist height turnstile gate is compatible with IC, ID, barcode, fingerprint reader and so on to prvoide intelligent

control and management to flow control. This turnstile series is made of 304/316 (optional) stainless steel, which is

rustproof, durable, and can provide orderly passage to people, anti-illegal entry or exit. It can be widely used in some

high security places, such as prison, stadium, parking system area , and so on



1. The whole system runs smoothly, long-life performance, high operation dependability and fast response.

2. The mechanism is equipped with an automatic regulated hydraulic buffer device. No noise and impact when running.

3. Self-test function, when power on, system restoration automatic.

4. Dual-bearing device, keeping the gate in balance when there is external force.

5. Single directional or Bi-directional is supported


6. LED indicator included

7. Automatic reset function: when Full Height Turnstile receives an open single, but passenger do not pass through the

hallway within a specific time (default 5s), turnstile arm will lock automatically. Limit passing time (01-60 seconds), passing

time can be set on circuit board.

8. When power off, turnstile lane will be free to pass, complying with fire safety requirements.


Automatic Rotary Half Height Turnstile Remote Control 304 Stainless Steel 0




1. Office space: commercial buildings, government offices, etc;
2.Science unit: universities, research institutes, libraries, etc;
3. Commercial service establishments: supermarkets, shopping malls, hotels, clubs, banks, etc;
4. Leisure and entertainment: parks, scenic areas, playgrounds, etc;
5. Transportation Sites: bus, train, subway stations, airports and so on.


Basic parameters

Dimensions L1400 mm X W300mm X H1000 mm
Cabinet material 38 round tube, 1.2mm SS304
Channel width ≤ 500mm
Ambient temperature -20 degrees to 60 degrees
Working environment indoor and outdoor


Technical Parameters

Input voltage 100V~240V
Driving voltage 24V
Equipment power 30W
Response time 0.2S
Passing speed 30 people / min
Communication distance less than 1200m
Open signal input dry contact
Switching door time Less than 1S
