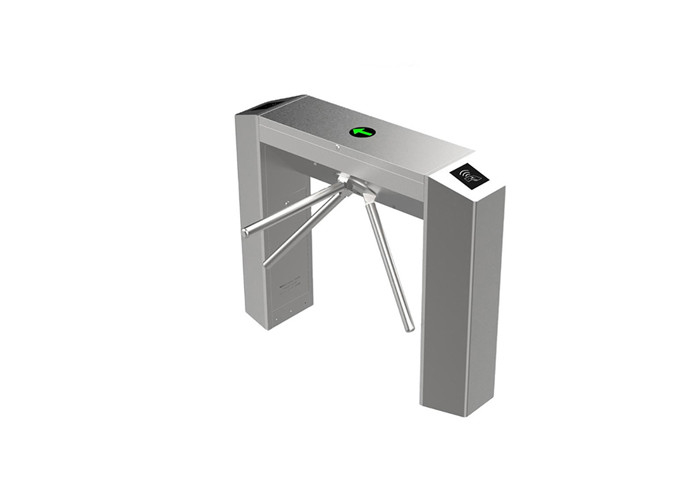

Office Building Bi-Directional Automatic Solenoid Tripod Turnstile Gate System
Product description
Tripod turnstile series are intelligent passage management equipment researched, developed and produced by our
company.The equipment is integrated with delicate mechanical transmission, microprocessor control, and various
read/write techniques. It can be used for intelligent control and management of the passage after equipped with
different read/write devices.
The outline of the product is formed after bending the stainless steel plate. The shape is featured as pleasing appearance,
good looking, stainless and durable. The system is provided with a standard electric interface and is easily integrated into
the equipment with read/write facilities such as magnetic card, bar code card, ID card and IC card. As a result, an orderly
and civilized passage is provided for the personnel in and out, and illegal personnel can be barred. At the same time, a special
fire control interface is equipped in the system to meet the requirement of fire control passage, so that a rapid down rod control
may be realized in emergency for diverting passengers.
TECHNICIAL SPECIFICATIONS
| PRODUCT INFORMATION |
| Model |
SN-TT02 |
| Brand |
SINOMATIC |
| Size/Stick length |
1200*280*980(mm)/free of case 510(mm) |
| Arm length |
500mm(norm) |
| Material |
SUS304 thickness(1.2mm) |
| Input Voltage |
110V/220V ±10% |
| Driving motor |
24V |
| Failure-free operation |
5 million/time |
| Weight |
50kg |
| Traffic speed |
30 persons/min |
| Flap Opening/Closing Time |
0.2s |
| Channel width |
≤600mm |
| Operating temperature |
-30℃—+70℃ |
| Communication interface |
Dry contact |
| Working environment |
indoor and outdoor |
MAIN FUNCTIONS AND FEATURES
1. Mechanical drive unit with solenoid locking mechanism eliminate the use of expensive electric motor and
reduce maintenance cost.
2. If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will
auto-rotate back to the current idle position.
3. Built in adjustable tensioner to control rotation force to minimize over rotation. Arm just need to be pushed
lightly to rotate therefore even elderly or children are able to use the turnstile.
4.Turnstile can be configured to be bi-directional or uni-directional. Housing is locked with special key to avoid
tampering.
5. Innovative and unique mounting surface ensures simple and convenient installation for system integrator.
6. Can be used with variety of access control devices: IC / ID card readers, bar-code scanner, fingerprints, etc.
(Access controller needed)
7. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds),
the system will cancel the authority of the current user automatically.
8. The mechanism is equipped with an automatic regulated hydraulic buffer device. There is no noise and impact
when running.
9. Auto-reposition function: After card read, passengers don't pass within regulated time period, turnstile will be
locked automatically
10. When power off, arm will be dropped automatically
Why choose us:
1. Our Factory has 20 years OEM/ODM experiences in the line of access control turnstile and barrier.
2. Prompt delivery time. Usually we keep stock of standard model which ensure the prompt delivery.
3. We accept OEM/ODM orders to meet the requirements of clients.
4. Trial order is acceptable. Clients can buy sample and test it before bulk order.
5. Online technical support makes it carefree to be our business partner.
6. A variety of transportation for your choice. Sea shipment, air cargo or express, depends on your demand.
7. Factory can be visited on working days. Clients are warmly welcome to visit our factory.
