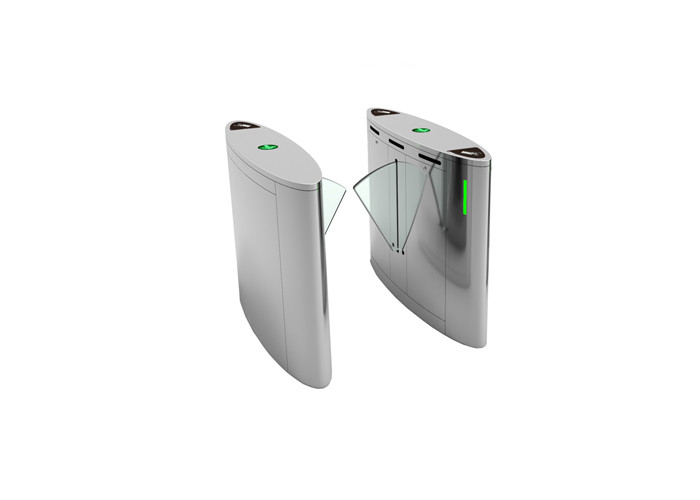

Acrylic Panel 40w Access Control Barrier Gate Qr Code Scanner BLDC Motor

Place of Origin Shenzhen, China.
Certification CE/ ISO
Model Number SN-FB04
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T or western Union
Supply Ability 2000 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Access Device Input Voltage Dry Contact/relay Signal Application Access Control System
Material Of Cabinet 304 Stainless Steel Motor Type BLDC Motor
Control Mode Automatic Name Access Control Barrier Gate
High Light

Acrylic Panel Access Control Barrier Gate


40w Access Control Barrier Gate


BLDC Motor Flap Barrier Turnstile

Leave a Message
Product Description

RFID Face Recognition Qr Code Scanner Access Control System Automatic Gate Flap Barrier Turnstile Gate


Standard parameters


Moduel No. SN-FB04
Size 1200* 980*300mm
Material stainless steel 304 + acrylic panel
Channel width 550mm
Thickness of the cabinet 1.2-1.5mm
Passing speed 30 persons / minute
Communication interface RS485
Opening time 0.2s
Working temperature -40℃ ~ 70℃
Drive motor Brushless DC24V
Infrared 4 pairs at least
Life 10 million times
Power 40w
Working voltage AC100-240V
Working environment indoor and outdoor (outdoor canopy)



(1) Automatic return function: After the passage process is completed, the brake wings automatically return to the

initial blocking position.

(2) Power-off and opening function: When the power is off, the system will automatically open the brake wings to

open, which is convenient for evacuation of the crowd and meets fire protection requirements.

(3) Anti-illegal intrusion function: When the card is invalid, there is no card swiping, or the passage is forbidden,

the forcible entry into the channel will be regarded as illegal intrusion, and the system will automatically alarm

and close the flap.

(4) Anti-reverse intrusion function: Before the end of the passage process in a certain direction, pedestrians entering

the passage from the opposite direction will be regarded as reverse intrusion, the system will automatically alarm and

close the wing.

(5) Anti-trailing function: The photoelectric switch detects the pedestrian traffic situation, and detects the following

phenomenon (the people behind are close to the person in front, intending to pass without swiping the card), the

system will automatically alarm and close the brake wings.


(6) Intelligent linkage alarm: including illegal intrusion, reverse traffic and other alarms, which can be linked with other

alarm monitoring equipment and can be heard.

(7) Anti-pinching and anti-collision function:
A. Infrared anti-pinch: Install multiple pairs of photoelectric switches near the area where the wing is active (anti-pinch area).

Once a person or object is detected in the anti-pinch area, the wing automatically stops; The flaps continued to move.

Product advantages

1. Cabinet part:
1.1. Frame material: 304 #, thickness 1.2- 1.5 mm;
1.2. Multi-layer drawing on the surface of the frame;
1.3. The frame is welded by fixtures;

2. Drive Movement part:
2.1. Low noise;
2.2. Movement frame material 6061 profile aluminum;
2.3. The inner guide pulley adopts metal bearings;

3. Electric control accessories:
3.1. Switching power supply adopts brand power supply to make its operating
voltage more stable;
3.2. The infrared sensor uses a domestic brand, and the internal parts are
imported parts;





It is mainly used for the entrance and exit management of the passage. It has the characteristics of fast opening,

safety and convenience. It is an ideal management and guidance equipment for high-frequency entrance and exit

passages for pedestrians. Widely used in airports, subway stations, stations, terminals, attractions, parks, shopping

malls, office buildings, pedestrian walkways and other places.
