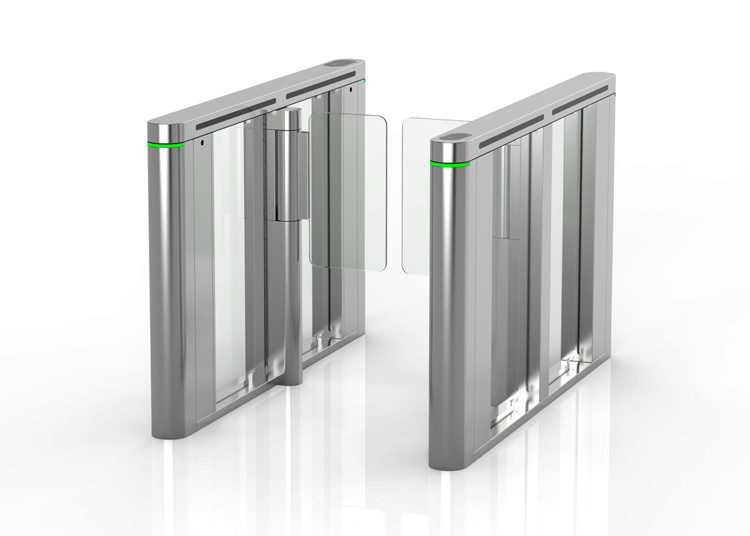

Anti Shock 40W DC Swing Barrier Turnstiles Lossless Mechanism

Place of Origin SHENZHEN, CHINA
Certification CE/ ISO
Model Number SN-HSG01
Minimum Order Quantity 1
Price negotiable
Packaging Details PLYWOOD BOX
Delivery Time 5-10 working days after payment received
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 500 pcs per month
Product Details
Barrier Material Acrylic (color Optional) Packing Material Plywood Box
Normal Running Life > 5 Million Times Motor 24V/40W DC Motor
Power Supply Brand MEAN WELL From TAIWAN Channel Width 500mm To 900mm
High Light

40W DC Swing Barrier Turnstiles


Anti Shock Swing Barrier Turnstiles


Lossless Mechanism Speed Gate Turnstile

Leave a Message
Product Description

Office Optical Fast Lane Slim Size 304 Stainless Steel Swing Barrier Speed Gate Turnstiles




The speed gate turnstile is with high-quality DC brushless/servo motor is configured and advanced control system

is carried to truly achieve precise control, stable performance with no maintenance.

Lossless mechanism structure is based on German technology adopted to ensure long lifespan.
The matrix type photoelectric stereoscopic detection technology is adopted to sensitively detect the behaviors that

threaten the passageway safety, such as illegal intrusion, reverse passing, tail-gating, and give out alarms through

sound, light, etc. The turnstile can be combine with other security systems.


The optical speed gate turnstile can combine with fast recognition face reader, and high quality speed gate motor

to build a non-stop passway. It can bear the huge human traffic application, such as tourist attractions, bus station.

Face reader and speed gate API/SDK is provided, convenient for secondary development.




1. Both Indoor and Outdoor
2. Led Screen Pass or Stop Sign
3. Moderate Level Security
4. One-directional or Bi-directional
5. Magnetic Card reader (optional)
6. Main body manufactured 1,2 mm stainless steel
7. In case of electric failures or cuts, the system pulls the wings in, releasing and unlocking the main mechanism
8. Plexi door panels suitable for signs ( STOP/ DISABLED)
9. Moderated with shock absorption while closing
10. Accessories Buton Unit and Remote Control
11. Modular design to ensure easy parts replacement
12. Operating Voltage : 220VAC- 24V DC

Standard Features & Functions

1. Smooth operating motorized barriers, the entire system runs smoothly, with a small noise and free of mechanical impact.
2. Rapid identification technique, available to identify accurately and efficiently the magnetic card, bar code card, ID card and IC card.
3. The fastlane turnstile system can easily integrates with the 3rd party equipment, such as Biometric systems, consumption systems, ESD system and access control system, etc.
4. Operation model: Both directions can be set as controlled mode or free mode, two or one direction can be controlled by switch-button or access controller.
5. Real time trouble self-detect and alarm indication, ensuring system safe operation and facilitating maintenance and operation.
6. The running status of device can be set up through pressing the built-in small keyboard of the main control board.
7. The device is locked until a valid open signal is received.
8. Emergency-escape function: When power off, it will be opened the gates automatically to meet the request of fire protection. Also the gates will open by pressing the emergency button which can be remote-controlled whether the power is on or not. (Optional).
9. Light and sound alarm indication function, preventing illegal entry or irregular passing
10 To adjust the operation speed of the barrier according to the flow of passenger and improve the passing rate.
11 LED indicator function: Traffic lights on both sides of the turnstile barrier are the indicator of access status, When the traffic lights show green, it means to pass and the red light means no-entry. The traffic lights on both sides can be set to indicate access for left or right or bi-direction.
12. Anti-pinch function: Auto-alarm will activate for unauthorized pedestrian movement and tailgating. The barrier uses several photo sensors to prevent turnstile closure on a person while inside the lane.





1. The device adopts DC brushless motor, which supports at least 5 million normal passages.


2. The device adopts multiple pairs of infrared detection sensors, and adopts anti-tailing tracking control technology,

which can be passed by authorized personnel. When unauthorized personnel enter, an audible and visual alarm will

be issued.

3. The device integrates a voice module which can customize the voice broadcast content according to user


4. The device uses LED to indicate the traffic direction and display the traffic status.

5. The device has anti-shock function. When there is intrusion, the door wing is automatically locked.

6. The equipment has self-test, self-diagnosis, automatic alarm function, sound and light alarm function including

illegal intrusion alarm, reverse intrusion alarm, trailing alarm etc.

7. The device has an automatic reset function. When the gate does not pass within the specified time after opening

the door, the system will automatically cancel the user's permission for the current pass and set the transit time.

8. The device supports flexible configuration of the access status (controlled, free traffic, no traffic) in the inbound

and outbound directions.

9. The device supports the memory mode which enables continuous and fast traffic.


Anti Shock 40W DC Swing Barrier Turnstiles Lossless Mechanism 0


Optional & Customized Function

Alternative Materials, Finished and Custom Design
Usage LED Counter function
Audio and visual alarm in the event of an invalid entry or exit and tailgating
Remote Controlled Button
Extra add sensors transmitter and receiver type
Infrared sensors reset function
Access Control System Integration
Camera System Integration
Thermostat System Integration
Card Reader mounting: Card readers may be mounted on the surface of the barrier, or the card readers may be mounted flush mounted. There is an output to interlock the card.
Stroboscopic alarm light prompt function: to help for site administrator to find the failure units fast and exactly.




1. What is your products biggest advantage?
-------- DC Brushless Motor , no maintenance all the of life, No Attrition, Low Noise ,Hight Intelligence.

2. What is  your flap gates opening and closing time ?
-------- <=0.4s .

3. What is the Swing barrier gate Working environment ?
-------- They can be used indoor and outdoor(with shelter)

4. Can I customize it ?
--------Yes, Welcome . We are the manufacturer , We are welcome OEM .

5. What's you warranty?
-------- 1 year time warranty .
