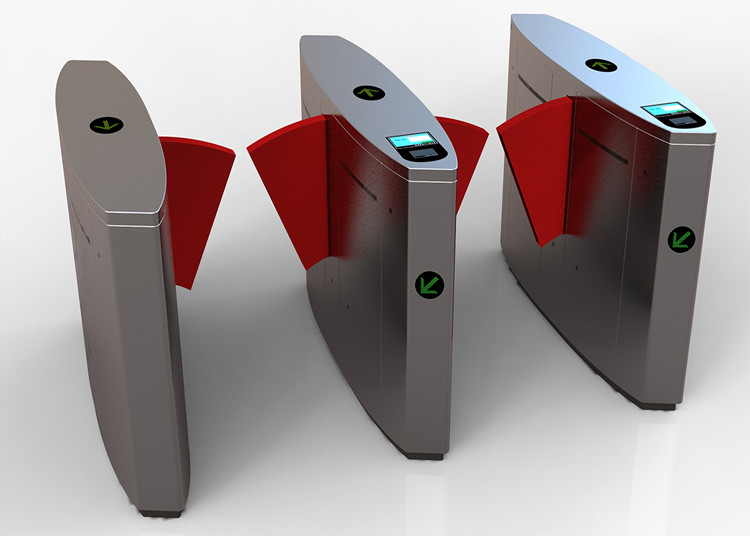

IP54 BLDC Motor Retractable Flap Turnstile Grade Metro Entry DC24V 3s

  • IP54 BLDC Motor Retractable Flap Turnstile Grade Metro Entry DC24V 3s
  • IP54 BLDC Motor Retractable Flap Turnstile Grade Metro Entry DC24V 3s
  • IP54 BLDC Motor Retractable Flap Turnstile Grade Metro Entry DC24V 3s
Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FB05
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T or western Union
Supply Ability 3,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Dimension 1200(L)*300(W)*980(H) Mm Working Temperature -20°C~60°C
Reset Time When Power On 3s Control Voltage DC24V
Control Signal Relay Passagewidth 600(Standard)
High Light

BLDC Motor Retractable Flap Turnstile

,

IP54 BLDC Retractable Flap Turnstile

,

3s Flap Turnstile Gate
Leave a Message
Product Description

IP 54 Protection Grade Metro Entry BLDC Motor Retractable Flap Turnstile Gate



BRIEF INTRODUCTION OF FLAP BARRIER GATE



The flap barrier gate is an intelligent control device for the entrance and exit of the pedestrian passage. The flap barrier

gate is a part of the entrance management system, combined with computer and access control system, attendance system

, ticketing system, which can realize various of functions for different scope. Advantage is fast open&close flap, suitable for

the entrance where with high traffic.







MAIN FUNCTION AND FEATURES



◆ Start up self-test function, automatic recovery in locked state
◆ Direction adjustable, one-way traffic, bi-direction traffic
◆ Fast pass speed for large flow of people
◆ Multiple pairs of IR sensor, make a logical judgment on the behavior of  the pedestrians, realize anti-pinch,

tail alarm, reverse pass alarm, illegal enter alarm function
◆ While flap blocked, flap rollback automatically(for brushless motor option only)
◆ Channel free pass in emergency situation
◆ Reserved standard IO interface for third-party access control system
◆ LED indication to prompt passway status
◆ Built-in motherboard with counting function
◆ Pass-throught memory function: when more then two legal verification, the system will remember all the traffic

requests and complete each traffic action in turn



PRODCT SPECIFICATION



1 Power AC100V~240V
2 Housing Size 1200*300*980mm
3 Material 1.2--1.5mm, 304stainless steel, corosion resistant
4 Passing Speed 30~40 Persons/min(IC/ID Card)
5 Motor DC Brushless Motor, 0.5NM/24V(Fully Automatic)
6 Input Connection

+12V Level Signal or Pulse Wide>100ms

DC12V pulse,
7 Communication Connection RS485 Communication Interface
8 Protection Grade IP54
9 Railing-off against power off yes
10 Relative humidity ≤95% coagulation free
11 Applications

Subway Station,Hoverport,Tourism,Exhibition,Swimming Hall,

Residence Area



Application



Flap turnstiles are mainly used in parks, subway, customers, airport, bus station, office building, scenic spot,

community, attractions, and exhibition hall doors, residential, Construction Sites, Industrial Plants, Marquee Golf

Tournaments, State Fairs, Special Sporting Events and Festivals!



FAQ



1.Will you install the channel lock for the first time?

Answer: on channel brake installation is very simple, just put the product fixed well, main machine and insert

110V/220V power supply,



2.Can machines be used outside?

Answer:It can be used outside with shelter



3.What is the warranty for the machine?

Answer:(1) we guarantee all goods quality assurance for 12 months.

(2) within the warranty time,if the machine have problem,we can offer you the accessories(but you pay the freight cost)



4.When will you make the delivery?

Answer:regular products:(3-5 days),irregular products:communication when you place the order.



5.How does your factory control the quality?

Answer:We always attach great importance to quality controlling from the beginning to the ending.



6.What is your MOQ?

Answer:Any quantity is acceptable for your order. And the price is negotiable for big quantity.



7.payment term?

Answer:30% by T/T in advance.70% by T/T before delivery.
