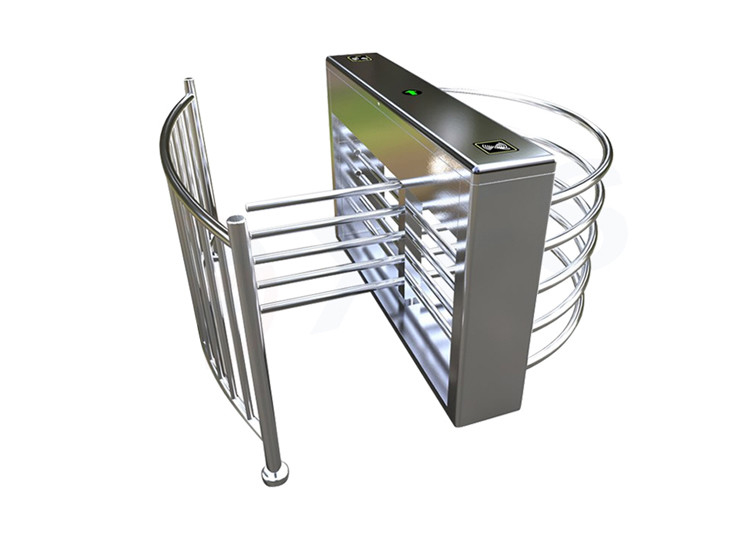

Metal Wings Acrylic SS304 Waist High Turnstile IP55 450mm Arm

Place of Origin SHENZHEN, CHINA
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-HHT01
Minimum Order Quantity 1
Price negotiable
Packaging Details WOODEN
Delivery Time 5-7working days after payment received for sample
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 3,000pcs per month
Product Details
Control Signal Relay Switch Signal Pass Speed 30 Person/minute
Service Life 5 Million Times At Least IP Rate IP55
Frame Materia SS304/Acrylic Working Mechanism Heavy Duty
High Light

Acrylic SS304 Waist High Turnstile

,

Metal Wings Waist High Turnstile

,

450mm Arm Stainless Steel Turnstile Gate

Leave a Message
Product Description

Metal Wings 304 Stainless Steel Material Waist High Access Assured Barrier



Product description



Half height turnstile SN-HTT01 is a type of outdoor/indoor half height turnstile with metal wings and classic metal

type design. Wings’ design may be straight as well as U-shaped. The range of modifications includes three and

four wing types as well as different type of metal finishing.



Half height turnstile can be compatible with IC card, ID card, barcode card, and door access control, fingerprint

reading card recognition device used for staff, provide civilized, orderly access methods; effectively manage the

access of staff . Which widely is used in some high security places, such as prison, stadium, parking system area,

and so on…





PRODUCT APPLICATION



1. Office space: commercial buildings, government offices, etc;
2.Science unit: universities, research institutes, libraries, etc;
3. Commercial service establishments: supermarkets, shopping malls, hotels, clubs, banks, etc;
4. Leisure and entertainment: parks, scenic areas, playgrounds, etc;
5. Transportation Sites: bus, train, subway stations, airports and so on.



MAIN FUNCTION AND FEATURES



1. The whole system runs smoothly, long-life performance, high operation dependability and fast response.


2. The mechanism is equipped with an automatic regulated hydraulic buffer device. No noise and impact when

running.


3. Self-test function, when power on, system restoration automatic.


4. Dual-bearing device, keeping the gate in balance when there is external force.


5. Single directional or Bi-directional is selectable.


6. LED indicator supported


7. Automatic reset function: when Full Height Turnstile receives an open single, but passenger do not pass

through the hallway within a specific time (default 5s), turnstile arm will lock automatically. Limit passing time

(01-60 seconds), passing time can be set on Full Height Turnstile circuit board.


8. When power off, turnstile lane will be free to pass, complying with fire safety requirements.



9. The rotary wings will be locked automatically if the system do not receive IR signal



10. Multi-passage for variety application demands ,Cover 99% needs on earth



11. Programmable signal separate control : pass time,pass speed etc. parameters



TECHNICAL SPECIFICATIONS



Item SN-HHT01
Housing Material 304 stainless steel
Standard Size L1200*W280*H1000(mm)
Drive mechanism Solenoid mechanism
Arm Length 450mm
Pass Direction single or bi-directional
Arm Driving Force 1kg
LED Light direction indication
Working mechanism 24V solenoid valve
Working Environment Indoor and Outdoor
Work temperature -20°C~60°C
Normal Running Life More than 5million
Input interface 12V pulse signal with pulse width >100ms, drive current >10mA





Metal Wings Acrylic SS304 Waist High Turnstile IP55 450mm Arm 0



OUR SERVICE


1. Any inquiries will be replied within 24 hours
2. Professional maufacturer. Welcome to visit our factory.
3. OEM/ODM available
4.You can have your own fashionable design at reasonable& competitive price
5. High quality:
1.) All products are stictly checked in warehouse before packing
2.) All products are well-packed before shipping
3.) All products have at least 1 year warranty
6.Payment:
T/T, Western Union, Moneygram can be accepted
7. short lead time:
Sample order in stock, and 3--7 days for bulk production
8. Shipping:
Cooperate well with DHL, EMS, UPS, FEDEX, China Air Post
You can also choose your own shipping forwarder
