IP45 SS316 0.2S Full Height Turnstiles 40W ISO With Mechanical Rotating

  • IP45 SS316 0.2S Full Height Turnstiles 40W ISO With Mechanical Rotating
  • IP45 SS316 0.2S Full Height Turnstiles 40W ISO With Mechanical Rotating
  • IP45 SS316 0.2S Full Height Turnstiles 40W ISO With Mechanical Rotating
Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FHT02
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 3,00pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Control Voltage 24V Mechanism Semi-auto(motor Free)
IP Grade IP45 Service Life At Least 5 Million Times
Material Mild Steel/SS304/SS316 Turnstile Type Full Height
High Light

IP45 SS316 Full Height Turnstiles

,

0.2S Full Height Turnstiles

,

40W ISO Full Body Turnstile
Leave a Message
Product Description

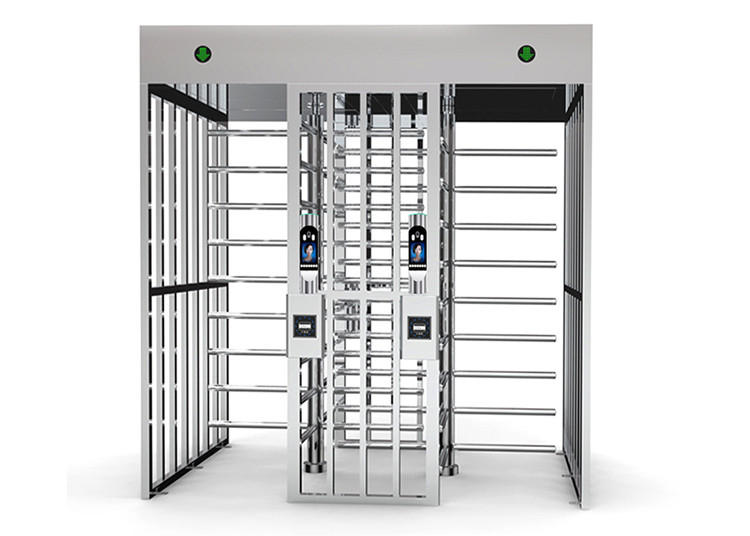

Floor-To-Ceiling Full Height Turnstiles With Mechanical Rotating Barriers



PRODUCT DESCRIPTION



Full Height Turnstile Definition: Full height turnstiles are floor-to-ceiling turnstiles with mechanical rotating barriers.

They operate similarly to a revolving door with the only difference being that they allow access to one person at a time

by locking after a single person makes entry into the system.



APPLICATIONS


The Full Height Turnstile can be widely used in some high security places, typical areas of application are: prison, stadium,

parking system area , and so on.





OPTIONAL & CUSTOMIZED FUNCTIONS



> Alternative Materials, Finishes and Custom Design

> Usage LED Counter function

> Audio and visual alarm in the event of an invalid entry or exit and tailgating

> Extra add sensors transmitter and receiver type

> Infrared sensors reset function

> Access Control System Integration

> Camera System Integration

> Thermostat System Integration



STANDARD FEATURES & FUNCTIONS



> The turnstile system can easily integrates with the 3rd party equipment, such as Biometric reader,consumption system,

ESD system and access control system etc, Rapid identification technique, available to identify accurately and efficiently

the magnetic card, bar code card, ID/IC card etc.



> Operation model: Both directions can be set as controlled mode or free mode, two or one direction can be controlled by

switch- button or access controller.



> Available with 4-arm, 90 degree spacing (default) or 3-arm, 120 degree spacing (optional).



> Anti backup function: to prevent reverse rotation once the mechanism has move 60 degree from home.



> The running status of device can be set up through pressing the built-in small keyboard of the main control board.



> When power off, the center rotor will be set free model (default) or be locked model (optional).



> Reset automatically function: Go signal will be cancelled if passage through is not completed within pre-set time.

The standard default is 10 seconds (time adjustable by changing parameter of main control board).



> Remote control and management function: Through the management computer to realize remote control and management.



PRODUCT SPECIFICATIONS



ITEM SPECIFICATIONS
Dimensions 2300*1370*2300mm
Cabinet material 38 round tube, 1.2mm Mild steel or SS304/316
Channel width 600mm
Ambient temperature -20 degrees to 60 degrees
Working environment indoor and outdoor (outdoor canopy)
Input voltage 100V~240V
Driving voltage 24V
Equipment power 40W
Response time 0.2S
Passing speed 30 people / min
Communication distance Less than 1200m
Open brake signal input Dry contact
Switching door time Less than 1S



OPERATION MODELS


The turnstile provides bi-directional access control. Each direction may be in one of three states:

> Free passage: all person are authorized to pass under all conditions

> Controlled access: each person must use a card reader before being authorized to pass

> Lane closed: no persons are authorized to pass, and security cards are ignored
