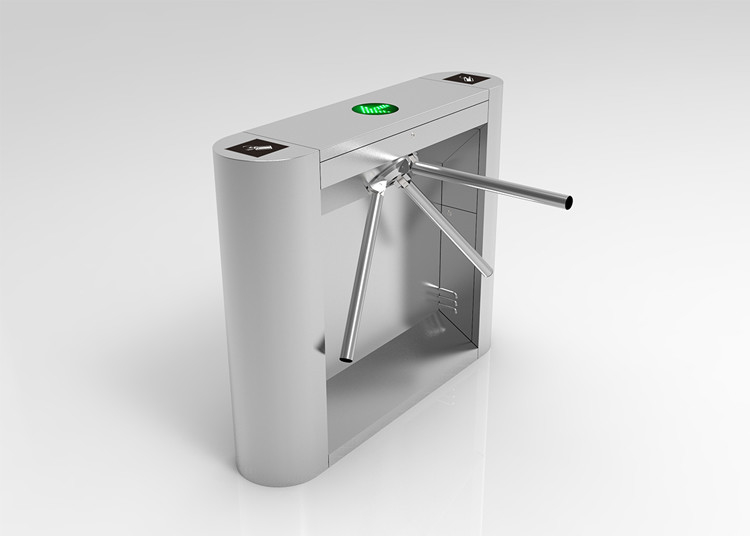

Waist Height Intelligent Transportation System Enhance Control Tripod Turnstile Gate
PRODUCT DESCRIPTIONS
The tripod turnstile controls pedestrian access between public and secure areas. The tripod turnstile system is
provided with a standard electric interface and can easily integrates the common 3rd party equipment with
read/write facilities, such as access control system, bar-code scanner, ID/IC card reader, time & attendance
system, coin collector, card collector, biometric systems (fingerprint & face recognition), consumption system,
ESD system and fare collection system, etc.
PRODUCT CLASSIFICATIONS
Semi-Automatic Type: When power off, it will be dropped the arm to the request of fire protection. When the
power is on again, the arms can also lift by hand. Once an open signal is given, it need to manual push the
arm to rotate.
| TRIPOD TURNSTILE STANDARD FUNCTION SPECIFICATIONS | |
| The turnstile system can easily integrates with the 3rd party equipment, such as Biometric reader, consumption system, ESD system and access control system etc. | √ |
| Operation model: Both directions can be set as controlled mode or free mode, two or one direction can be controlled by switch- button or access controller. | √ |
| Reset automatically function: Go signal will be cancelled if passage through is not completed within pre- set time. The standard default is 10 seconds (time adjustable by by changing parameter of main control board). | √ |
| Automatic-rotation function: once an open signal is given, the arms will rotate automatically. | × |
| Auto-drop-arm function: the arm can drop down automatically (default), or free passing when the power is off. | √ |
| Auto-lift-arm function: when the power is on again, the arm can also lift automatically | × |
| Emergency-escape function: the arm will drop down automatically by pressing the emergency button which can be remote-controlled whether the power is on or not. | √ |
| Anti backup function: to prevent reverse rotation once the mechanism has move 60 degree from home | √ |
| Optional indication of Mulit LED | √ |
| Optional indication of inside LED counter or outside LED counter | √ |
| With interface of switch of relay, compatible with all the access controller | √ |
| Equipped with free control software for man-machine interface & control command SDK. | √ |
| Through the management computer to realize remote control and management. | √ |
PRODUCT DIMENSION
1200 x 280 x 990mm (Size Customization Acceptable)
PRODUCT SPECIFICATIONS
|
Model
|
SN-TT03
|
|
Size
|
120*280*990mm
|
|
Material
|
1.2mm SS304
|
|
Pass Width
|
550mm
|
|
Passage direction
|
Single directional/Bi-directional
|
|
Pass rate
|
30-35 persons/minute
|
|
Operating time
|
0.2 seconds
|
|
Power input
|
AC100-240V,50/60HZ
|
|
Working voltage
|
24V
|
|
Working humidity
|
30%~95%
|
|
Working temperature
|
-40℃~+70℃
|
|
Working environment
|
Indoor/outdoor
|
|
Communication interface
|
Dry contact
|
|
Mechanism
|
Mould machine core+mould bracket+Domestic solenoid
|
MAIN FUNCTIONS AND FEATURES
1) The entire system runs smoothly, with a small noise and free of mechanical impact.
2) Semi-automatic mechanism, Maintenance Free
3) It has failure self-detect and alarm indication function, facilitating maintenance and application for the users.
4) It is provided with multiple operation modes for selection. It can either read card in double way for flow limit,
or reading card in a way while barring in the other, or read card in a way while free passage in the other.
5) It has automatic function of dropping arm when power off.
6) The equipment is provided with a unified, standard electric interface and is available to be integrated with
various read/write facilities to facilitate the system integration. It is able to realize far end control and management
with the help of administrative computer.
7) It has a function of reading card with or without memory, and it may be set up with the built-in small keyboard
in accordance with the requirements of the users.
8) Self resetting function, the system will cancel the people passing right when reading the card but not passing,
9) Direction indicator function, showing passing or prohibiting for the people
10) Prohibiting opposite direction passing, one side reading the card, the other side will lock when you passing
forcedly; the locking time can be set, and unlocked by the card.
11) Prohibiting illegal passing, the turnstile without the card, the locking time can be set, and unlocked by the card.
12) Anti-hit against function, when the turnstile touches the passing people, it will stop and after several seconds,
it will turn again.
