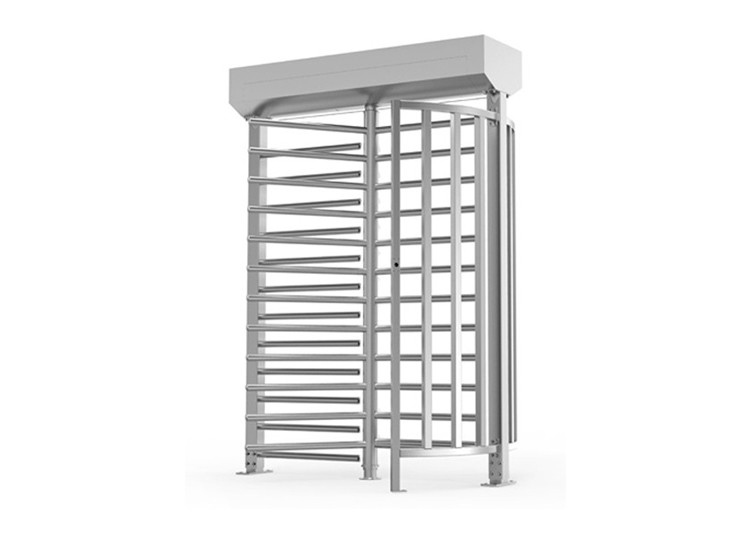

40W SS Full Height Turnstile 600mm Arm Full Body Turnstile 1.5mm Thickness

Place of Origin Shenzhen, China.
Certification CE/ ISO
Model Number SN-FHT01
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 3,00pcs per month
Product Details
Thickness Of Housing 1.2 To 1.5mm Arm Length About 600mm
Passage Width About 600mm Rotor 120 Degree Or 90 Degree
Application Indoor/outdoor Service Life At Least 5 Million Times
High Light

40W SS Full Height Turnstile


Full Height Turnstile 600mm Arm


1.5mm Thickness Bi Directional Turnstile

Leave a Message
Product Description

304 Stainless Steel Semi-Automated Maintenance Free Mechanical Overhead Turnstile




Full height turnstile ---can be compatible with IC card, ID card, barcode card, fingerprint reading card recognition

device used for staff, provide civilized, orderly access methods; effectively manage the access of staff .

Can be widely used in some high security places, such as prison, stadium, parking system area, and so on.


It is extensively use in railway station, banking house, high class club, office, gym, swimming pooletc.. It can

support RFID, fingerprint, facial verification mode. Combine with infrared detector, temperature controller, can

widely used in all kind of different environment.




Basie description


The full height turnstile is designed with unique, strong, and durable mechanical to provide unsupervised access

control for office or building which realize intelligent pedestrian control and management.


The impenetrable construction eliminates any un-authorized access to restricted areas. To gain authorized passage

through the turnstile, the user must present a valid card for the access control system. Upon presentation of the

valid card. The turnstile will unlock and allow the user to pass through the direction requested. And the turnstile

can also work with push button, fingerprint and face recognition access control system.


This full-height turnstiles designs with tailored stainless steel make its elegance-looking,durable and anti-oxidation.

Considering unique requests, we built-in standard electrical interface to best-fit customer easier using magnetic card,

barcode, RFID cards integrated .This system provides civilized, well-organized pass management .


Considering Fire emergency happen, the system built-in unique fire-control interface, turnstile will be in free

enter/exit working mode when power off. (Fail secure is optional)




1. Long-life performance, high operation dependability and fast response

2. The mechanism is equipped with an automatic regulated hydraulic buffer device. Hardly any noise and impact

when running

3. Single directional or Bi-directional is selectable

4. Automatic reset function: turnstile arm will lock automatically within 5s (can be setting) if passenger delay to entry
Anti-tailing function: only one person passes at one time.

5. When power is off, arms will open automatically, which is complying with fire safety requirements.Fail secure

is optional.

6. LED indicator (red × means no entry; green → means entry)


7. Rainproof housing, anti-corrosion coating iron, 304 or 316 stainless steel.


8. Mechanical drive unit with solenoid locking mechanism eliminate the use of expensive electric motor and

reduce maintenance cost.


9. If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will

auto-rotate back to the current idle position.


10. Built in adjustable tensioner to control rotation force to minimize over rotation. Arm just need to be pushed

lightly to rotate therefore even elderly or children are able to use the turnstile.


11.Turnstile can be configured to be bi-directional or uni-directional. Housing is locked with special key to avoid



12.Innovative and unique mounting surface ensures simple and convenient installation for system integrator.


13.Can be used with variety of access control devices: IC / ID card readers, bar-code scanner, fingerprints, etc.

(Access controller needed)


14.Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds),

the system will cancel the authority of the current user automatically.


15.The mechanism is equipped with an automatic regulated hydraulic buffer device. There is no noise and impact

when running.






Power supply

AC220±10%V 50Hz/AC110±10% 60Hz

Power consumption


Access device input voltage

Dry contact or 12V electrical level signal

or > 100ms 12V impulse signal, driving current > 10mA


No motor

Max flow rate

25 to 30 person per minute

Arm length

500mm to 600mm

Working temperature
