SS304 RFID Waist Height Turnstile with 30W Power and 0.2S Response Time for Secure Access Control
  • SS304 RFID Waist Height Turnstile with 30W Power and 0.2S Response Time for Secure Access Control
  • SS304 RFID Waist Height Turnstile with 30W Power and 0.2S Response Time for Secure Access Control
  • SS304 RFID Waist Height Turnstile with 30W Power and 0.2S Response Time for Secure Access Control
SS304 RFID Waist Height Turnstile with 30W Power and 0.2S Response Time for Secure Access Control

SS304 RFID Waist Height Turnstile with 30W Power and 0.2S Response Time for Secure Access Control

Place of Origin Shenzhen, China
Brand Name Sinomatic
Certification CE
Model Number SN-HH01
Product Details
Arm Lenght:
About 450mm To 500mm
Frame Material:
SS304/SS316
Control Voltage:
DC24V
Control Signal:
Relay Switch Signal
Pass Speed:
30 Person/minute
Application:
Indoor/outdoor
Highlight:

RFID SS304 Waist Height Turnstiles

,

Relay Switch Waist Height Turnstiles

,

30W 0.2S Bi Directional Turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
Negotiable
Packaging Details
Crate
Delivery Time
7~10 days
Payment Terms
T/T, Western union, Visa, MasterCard, PayPal, Stripe, PayPal_BNPL, Apple pay, Google pay, Pix, OXXO, Billie, Online Transfer etc. Alipay
Supply Ability
1000 pcs/month
Product Description
Relay Switch RFID SS304 Waist Height Turnstiles 90 Degree Rotary 30W 0.2S

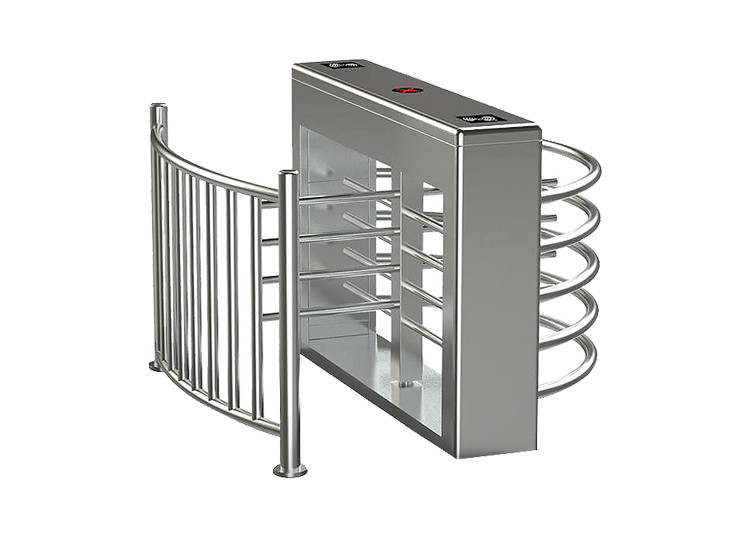

90 Degree Rotary RFID Access SS304 Outdoor Waist Height Turnstiles
SINOMATIC waist height turnstile gate is compatible with IC, ID, barcode, and fingerprint readers to provide intelligent control and management for flow control. This turnstile series is constructed from 304/316 (optional) stainless steel, offering rustproof durability and ensuring orderly passage while preventing illegal entry or exit.
Ideal for high-security environments including prisons, stadiums, parking system areas, and similar facilities. The waist-height design features tailored stainless steel construction for elegant appearance, durability, and anti-oxidation properties.
SS304 RFID Waist Height Turnstile with 30W Power and 0.2S Response Time for Secure Access Control 0
Main Features and Functions
  • Smooth system operation with long-life performance, high reliability, and fast response
  • Automatic regulated hydraulic buffer mechanism for quiet, impact-free operation
  • Self-test function with automatic system restoration upon power-on
  • Dual-bearing device maintains gate balance under external force
  • Selectable single-directional or bi-directional operation
  • LED indicator support
  • Automatic reset function with configurable passing time (01-60 seconds)
  • Free passage during power outages for fire safety compliance
  • Automatic rotary wing locking when no IR signal is detected
  • Multi-passage configurations to meet diverse application requirements
  • Programmable signal control for pass time, speed, and other parameters
  • RS232/RS485 interfaces and wireless connectivity options
  • Compatible with IC/ID card systems for flexible coupling
  • Long-distance computer management capabilities
  • Customization options: LED display, voice guidance, warning lamps, indicator lights, audible and visible alarms
Basic Specifications
Dimension of housing L1400 mm × W300 mm × H1000 mm
Cabinet material SS304, 1.2mm to 1.5mm
Channel width 450mm to 500mm
Ambient temperature -20°C to 60°C
Working environment Indoor and outdoor
Technical Parameters
Input voltage 100V~240V
Driving voltage 24V
Equipment power 30W
Response time 0.2S
Passing speed 30 people/minute
Communication distance Less than 1200m
Open signal input Dry contact
Switching door time Less than 1S
Our Service Commitment
  • All inquiries responded to within 24 hours
  • Professional manufacturer with factory visits welcome
  • OEM/ODM services available
  • Custom fashionable designs at competitive prices
  • High quality assurance with pre-shipment inspections
  • Secure packaging for all products
  • Minimum 1-year warranty on all products
  • Flexible payment options: T/T, Western Union
  • Short lead times: sample orders in stock, bulk production in 3-7 days
  • Global shipping partnerships with DHL, EMS, UPS, FEDEX, China Air Post
  • Option to use your preferred shipping forwarder
