Automatic Rising Bollards
>
|
|
| Place of Origin | Shenzhen, China. |
| Brand Name | SINOMATIC |
| Certification | CE/ ISO |
| Model Number | SN-HRB01 |

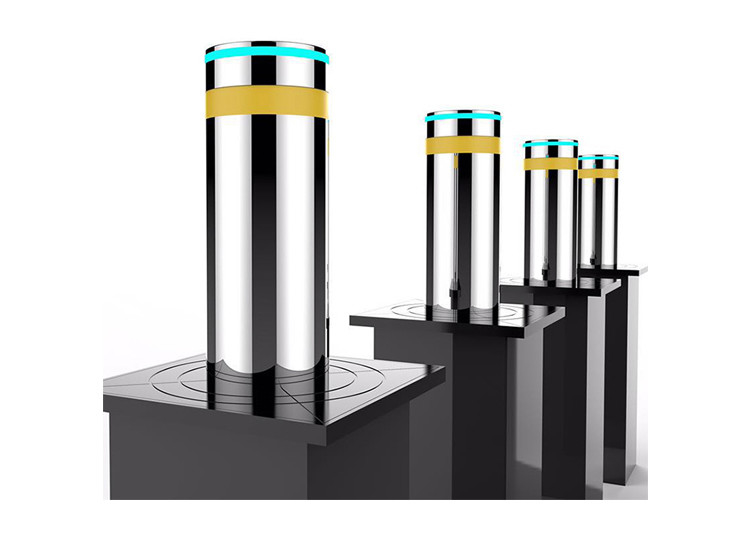

5 Million Time MTBF Fast Delivery Retractable Road Bollard With Quality Assurance
Product specifications
|
Product Name
|
Automatic hydraulic road bollard
|
|---|---|
|
Material
|
304 stainless steel
|
|
Control mode
|
integrated hydraulic and electro
|
|
Power supply
|
100v~240V
|
| Motor voltage | 24V |
|
Bollard diameter
|
168mm, 219mm(default), 273mm, 324mm etc
|
|
Rising height
|
600mm(default), 800mm, 1000mm
|
| Wall thickness | 6mm(default), 8mm, 10mm, 15mm, 20mm |
|
Waterproof degree
|
IP68
|
|
Surface treatment
|
brushed finishing
|
|
Operating Temperature
|
-40℃ to +70℃
|
|
Control model
|
push button/remote control standard, loop detector /card reader optional
|
|
Running speed
|
2-4S ( ascending )
|
|
Safety signs
|
reflective tape/LED warning light zipper/loop detector system traffic lights
|
|
Cylinder
|
stainless steel/plastic coating for steel tube Traffic Road Bollard,automatic bollards,cast iron road stake bollards
|
|
Optional Function
|
Traffic Lamp/Solar light/Hand Pump/Safety Photocell, Reflective tape/sticker, buzzer
|
|
Optional Color
|
Brushed titanium gold, champagne, rose gold, Brown, red, purple,sapphire blue, gold, dark blue paint, chocolate,stainless steel,Chinese red paint
|
ABOUT SINOMATIC ROAD BOLLARD
Our Hydraulic Bollard Road Blockers can be used to control vehicles in either one way or two-way configurations
and is specifically designed to interface with our extensive range of access control security systems, remote
manned operation or open/close vehicle loop detectors. The ‘red’ traffic light is illuminated while the Hydraulic
Bollard is in its active position.
The ‘green’ light only being illuminated once the Hydraulic Bollard is fully retracted. As the vehicle passes on to
the safety/closing induction loop, the light will change to red signalling the next vehicle to stop. The Hydraulic
Bollard can be lowered manually in the event of a power failure. Furthermore, the Hydraulic Bollard can operate
with a comprehensive range of cabinet mounted key switches for Emergency Service or site-specific operational
requirements.
Product Application
The rising bollards are widely used in highway toll stations, checkpoints, prisons, airports, government
agencies, embassies,military bases, customs, banks, industrial and mining enterprises, ports, warehouses,
parking lots, and all places where vehicletraffic is restricted.
MAIN FUNCTION AND FEATURES
1. Different thickness of steel is available (default 6 mm)
2. Different colors are available
3. Customized size is available
4. Steady and safe due to the OMRON PLC control system
5. Speedy rising time and durable quality with hydraulic pressure
6. Housing with durable and stainless Galvanization
7. Optimization of the frame structure, high anti-impact capability, high loading capability
8. High security and anti-collision ability
9. With a reflective band and a low energy consumption LED light at night
10. Highly resistant to impacts and atmospheric elements.
11. Bollard Thickness: 6mm (standard), 8mm, 10mm, 12mm, 20mm optional
12. Diameter:219(Standard) 273mm(optional)
13. Structure : With load-bearing steel beam column, anti-collision steel beam column
14. LED light (optional)
15. Reflective sticker: 2 strips
16. Link-control interface
17. In case of a power outage, the bollards can be manually lowered down(need battery)
18. IP rate: IP68
19. Weight:150±KG Integrated
20. In rising and falling, reversible operation is available
21. Device running noise≤60decibel
