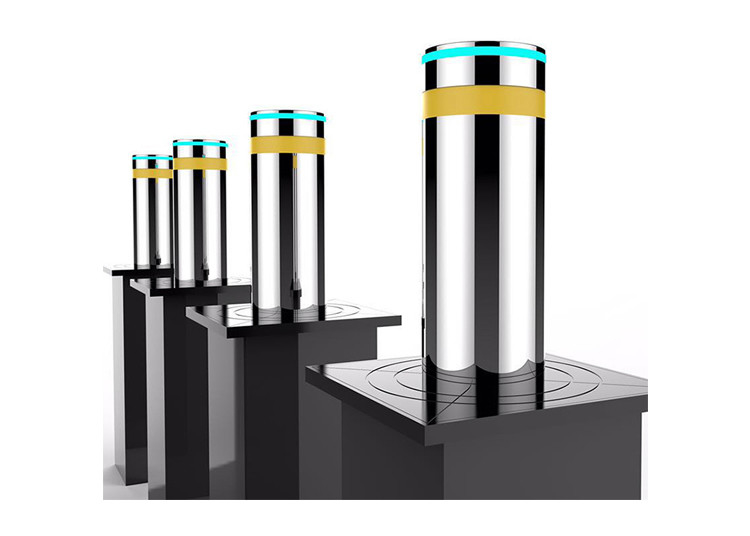

Reflective Tape Ornate Retractable Parking Bollards 6k Mirror Hydraulic
  • Reflective Tape Ornate Retractable Parking Bollards 6k Mirror Hydraulic
  • Reflective Tape Ornate Retractable Parking Bollards 6k Mirror Hydraulic
  • Reflective Tape Ornate Retractable Parking Bollards 6k Mirror Hydraulic

Reflective Tape Ornate Retractable Parking Bollards 6k Mirror Hydraulic

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-HRB01
Product Details
Surface:
6k Mirror
Power Supply:
100V-240V
Control Voltage:
24V
Material:
SS304 Above Ground/mild Steel Under Ground
Service Life:
At Least 5 Million Times
Duty Cycle:
100%
High Light:

Reflective Tape Retractable Parking Bollards

,

Ornate Retractable Parking Bollards

,

6k Mirror Hydraulic Rising Bollards

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-7 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram, credit card/Cash/wechat
Supply Ability
1000 pcs a month
Product Description

Reflective Tape Ornate Safety Stainless Steel Parking Road Automatic Bollard Systems



ABOUT SINOMATIC ROAD BOLLARD



Our Hydraulic Bollard Road Blockers can be used to control vehicles in either one way or two-way configurations

and is specifically designed to interface with our extensive range of access control security systems, remote

manned operation or open/close vehicle loop detectors. The ‘red’ traffic light is illuminated while the Hydraulic

Bollard is in its active position.


The ‘green’ light only being illuminated once the Hydraulic Bollard is fully retracted. As the vehicle passes on to

the safety/closing induction loop, the light will change to red signalling the next vehicle to stop. The Hydraulic

Bollard can be lowered manually in the event of a power failure. Furthermore, the Hydraulic Bollard can operate

with a comprehensive range of cabinet mounted key switches for Emergency Service or site-specific operational

requirements.



Reflective Tape Ornate Retractable Parking Bollards 6k Mirror Hydraulic 0



Product Application



The rising bollards are widely used in highway toll stations, checkpoints, prisons, airports, government

agencies, embassies,military bases, customs, banks, industrial and mining enterprises, ports, warehouses,

parking lots, and all places where vehicletraffic is restricted.



Product specifications



Product Name
Automatic hydraulic road bollard
Material
304 stainless steel
Control mode
integrated hydraulic and electro
Power supply
110V/220V/(control voltage 24V)
Bollard diameter
168mm, 219mm(default), 273mm, 324mm etc
Rising height
600mm(default), 800mm, 1000mm
Wall thickness    6mm(default), 8mm, 10mm, 15mm, 20mm
Waterproof degree
IP68
Surface treatment
brushed finishing
Operating Temperature
-40℃ to +70℃
Control model
push button/remote control standard, loop detector /card reader optional
Running speed
2-4S ( ascending )
Safety signs
reflective tape/LED warning light zipper/loop detector system traffic lights
Cylinder
stainless steel/plastic coating for steel tube Traffic Road Bollard,automatic bollards,cast iron road stake bollards
Optional Function
Traffic Lamp/Solar light/Hand Pump/Safety Photocell, Reflective tape/sticker, buzzer
Optional Color
Brushed titanium gold, champagne, rose gold, Brown, red, purple,sapphire blue, gold, dark blue paint, chocolate,stainless steel,Chinese red paint





MAIN FUNCTION AND FEATURES



1. Different thickness of steel is available (default 6 mm)


2. Different colors are available


3. Customized size is available


4. Steady and safe due to the OMRON PLC control system


5. Speedy rising time and durable quality with hydraulic pressure

6. Housing with durable and stainless Galvanization


7. Optimization of the frame structure, high anti-impact capability, high loading capability


8. High security and anti-collision ability


9. With a reflective band and a low energy consumption LED light at night



10. Highly resistant to impacts and atmospheric elements.


11. Electro-hydraulic drive mechanisms.


12. Single or multiple units in row with one common drive unit


13. Robust construction with high impact resistance.


14. Illuminated ring composed of LED lights for enhanced visibility.
