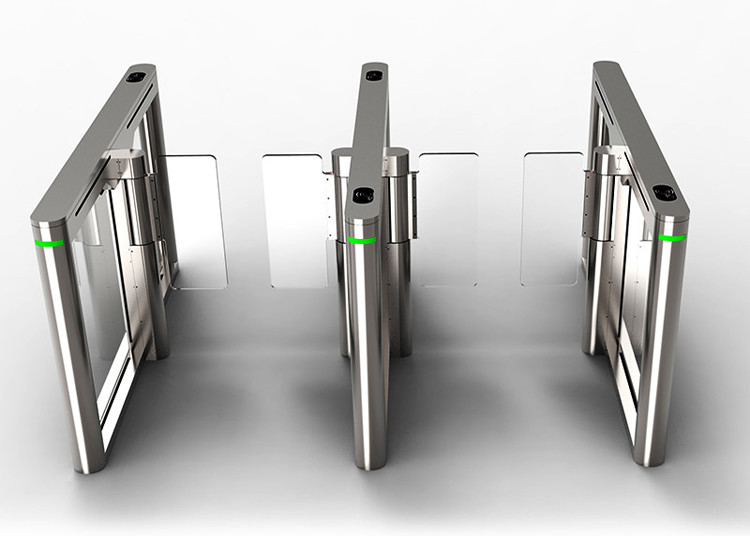

SS304 Acrylic 900mm Width Pedestrian Turnstile Gate Face Recognition BLDC

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-HSG01
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 500 pcs per month
Product Details
Power Supply 100V~240V, 50/60Hz MCBF 5,000,000 Cycles
Service Life At Least 5 Million Times Passage Width 600mm To 900mm
Material SS304, Acrylic Flow Rate 30~35 Person/minute
High Light

SS304 Acrylic Pedestrian Turnstile Gate

,

900mm Width Pedestrian Turnstile Gate

,

BLDC Access Control Swing Barrier

Leave a Message
Product Description

Face Recognition RFID Access Control System 900mm Passage Width High Speed Swing Barrier



PRODUCT DESCRIPTION



The intelligent high speed gate is one of the serial products of intelligent passage management series from

our Company. Using BLDC motor, It possesses superiority incomparable with the traditional management mode.



The outline of the product is formed after pressing the stainless steel plate. The shape is featured as a pleasing

appearance, a good looking, stainless and durable. The system is provided with a standard electric interface and

is easily integrated into the product with read/write facilities. A special control system is equipped in the product

to meet the requirement of fire control, so that the smooth passage flow is ensured, realizing a timely diverting

of passengers.



The product is featured as stable in performance, safe and reliable, and can be used widely in the places where

passenger flow is great and monitoring is needed such as stations, airports, office.







PRODUCT FEATURES



1. The device adopts DC brush-less motor, which supports at least 5 million normal passages.



2. The device adopts multiple pairs of infrared detection sensors, and adopts anti-tailing tracking control technology,

which can be passed by authorized personnel. When unauthorized personnel enter, an audible and visual alarm will

be issued.


3. The device integrates a voice module which can customize the voice broadcast content according to user

requirements.


4. The device uses LED to indicate the traffic direction and display the traffic status.


5. The device has anti-shock function. When there is intrusion, the door wing is automatically locked.


6. The equipment has self-test, self-diagnosis, automatic alarm function, sound and light alarm function including

illegal intrusion alarm, reverse intrusion alarm, trailing alarm etc.


7. The device has an automatic reset function. When the gate does not pass within the specified time after opening

the door, the system will automatically cancel the user's permission for the current pass and set the transit time.


8. The device supports flexible configuration of the access status (controlled, free traffic, no traffic) in the inbound

and outbound directions.


9. The device supports the memory mode which enables continuous and fast traffic.



SS304 Acrylic 900mm Width Pedestrian Turnstile Gate Face Recognition BLDC 0

SS304 Acrylic 900mm Width Pedestrian Turnstile Gate Face Recognition BLDC 1



PRODUCT SPECIFICTAIONS



Model
SN-HSG150
Case Material
SS304
Barrier Arm Material
Acrylic
Production Process
CNC Laser Cutting
Size
1210*150*1060mm(Customization acceptable)
Power input
AC100-240V,50/60HZ
Operation voltage
DC24V, 3A, Power: 40W( Servo Motor Optional)
Electromagentic
Duty Cycle 100%
Passage Width
600mm to 1000mm
Passage direction
Single directional/Bi-directional(Optional)
Operating time
1S
Throughput Rate
30persons/minute(Normally Closed) or 40 persons/(Normally Open)
reset Time after Power on
3S
MCBF
5,000,000 Cycles
Automatic Reset Function
Automatically locked within set time(Time Adjustable)
LED Indcator
Yes
Operation Humidity
0~95%(No Freezing)
Operation Temperature
-20℃~+60℃
Operation Eenvironment
Indoor,Outdoor(Shelter)
Protection Level
IP45
Communication Interface
Standard RS485 interface, distance ≤1200 meters
Input Interface
Relay switch signal or 12V electrical level signal or 12V pulse signal of pulse width > 100ms, drive current >10mA





Application



Intelligent high speed gate ---can be compatible with IC card, ID card, barcode card, fingerprint reading card

recognition device used for staff, provide civilized, orderly access methods; effectively manage the access of staff.

Can be widely used in the station, wharf subway, factories, office building, hotel, clubs, intelligent community,

enterprises and institution that need intelligent access management.



FAQ



1.What is your products biggest advantage?
-------- DC Brushless Motor , no maintenance all the of life, No Attrition, Low Noise ,Hight Intelligence.


2.What is  your flap gates opening and closing time ?
-------- <=0.4s .


3.What is the Swing barrier gate Working environment ?
-------- They can be used indoor and outdoor(with shelter)


4. Can I customize it ?
--------Yes, Welcome . We are the manufacturer , We are welcome OEM .


5.What's you warranty?
-------- 1 year time warranty .
