Arm 600mm Full Height Turnstile 40W Single Door QR Scanner 10mA
|Place of Origin||Shenzhen, China.|
|Minimum Order Quantity||Sample order accepted|
|Packaging Details||Carton/Plywood box/Pallet|
|Delivery Time||5-10 working days after payment received|
|Payment Terms||T/T, Western Union, MoneyGram|
|Supply Ability||3,00pcs per month|
|Passing Ratge||30 Person Per Minute||Access Device Input Voltage||Dry Contact Or 12V Electrical Level Signal|
|Thickness Of Housing||1.2 Or 1.5mm||OEM/ODM||Supported|
|Arm Length||550mm To 600mm||Passage Width||About 600mm|
Arm 600mm Full Height Turnstile,
Full Height Turnstile 40W,
10mA Full Body Turnstile
Single-Door Type QR Code Scanner Fast Recognition Full Height Turnstile

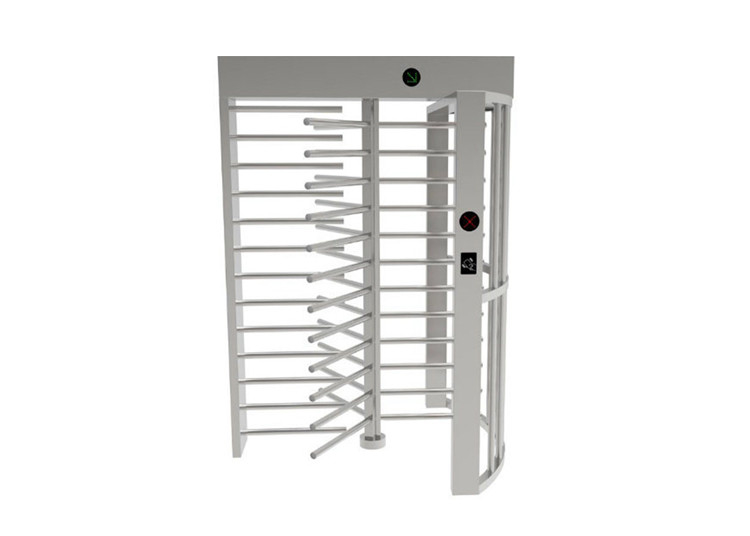

Full height turnstile SN-FHT01 is designed to provide entry access control solutions in places that need high
security, such as prison, stadium and construction site.
The system is single-door type with single/bi-directional passage control.
This model is stronger and with passage width of about 600mm.
It’s idea for both indoor and outdoor, as whole body is made of finished and brushed stainless steel(or painted
mild steel), which is waterproof, anti-corrosion and rigid.
There are LED lights at front on both top cover and body side to indicate entry is accepted or denied.
Arm is 120° rotors or 90°rotors for select.
The full height turnstile series are widely used in entrance/exit passsages of:
Airport, wharf, metro station, bus station, sports center, prison, fitness center, factory and so on.
MAIN FUNCTION AND FEATURES
1.Rainproof housing, anti-corrosion coating iron, 304 or 316 stainless steel.
2.Mechanical drive unit with solenoid locking mechanism eliminate the use of expensive electric motor and
reduce maintenance cost.
3.If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will
auto-rotate back to the current idle position.
4.Built in adjustable tensioner to control rotation force to minimize over rotation. Arm just need to be pushed
lightly to rotate therefore even elderly or children are able to use the turnstile.
5.Turnstile can be configured to be bi-directional or uni-directional. Housing is locked with special key to avoid
6.Innovative and unique mounting surface ensures simple and convenient installation for system integrator.
7.Can be used with variety of access control devices: IC / ID card readers, bar-code scanner, fingerprints, etc.
(Access controller needed)
8.Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds),
the system will cancel the authority of the current user automatically.
9.The mechanism is equipped with an automatic regulated hydraulic buffer device. There is no noise and impact
AC220±10%V 50Hz/AC110±10% 60Hz
Access device input voltage
Dry contact or 12V electrical level signal
or > 100ms 12V impulse signal, driving current > 10mA
Max flow rate
25 to 30 person per minute
500mm to 600mm
