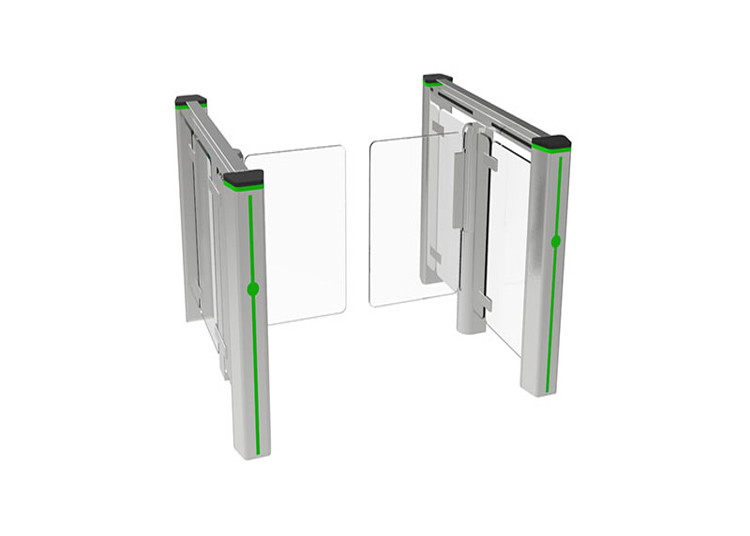

Fast Response BLDC Motor Pedestrian Speedlane Turnstile IP45 RS485

Place of Origin Shenzhen, China.
Certification CE/ ISO
Model Number SN-HSG150
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 500 pcs per month
Product Details
Motor BLDC Motor Power Supply AC220V/110V, 50/60Hz
MCBF 5,000,000 Cycles Service Life 5 Million Times
Material Thickness 1.2mm At Least Passage Width 600mm To 1000mm
High Light

Fast Response Pedestrian Speedlane Turnstile


BLDC Motor Pedestrian Speedlane Turnstile


IP45 RS485 Pedestrian Swing Turnstile

Leave a Message
Product Description

Long-Life Performance High Operation Dependability And Fast Response Speedlane Turnstile




Sinomaitc High speed gate is to control pedestrian entry or exit in restricted areas, usually used in high pedestrian

traffic flow in both directions.
The body is made of brushed stainless steel which is robust, rigid, anti-rust, waterproof and durable.
It is ideal for both indoor and outdoor settings.
It has standard relay signal, which can be integrated with any kind of third-party access control system (e.g.: RFID,
Fingerprint and Biometric reader device).

It has sufficient space, which can be mounted with any type of external device.( e.g.: Display, Counter, Reader, Push
button, Card collector, Coin insert, Barcode/QR reader, Wheel).
In case of emergency, the swing arms will open automatically to allow free passage when power off.
It support standard and handicapped type with wide passageway, wheelchair, pedestrian with large luggage can pass.
It is suitable for areas with general pedestrian traffic (e.g.: Hotel, Gym, Building, Bank, Shopping mall, Reception Area).







Case Material
Barrier Arm Material
Production Process
CNC Laser Cutting
1210*150*1060mm(Customization acceptable)
Power input
Operation voltage
DC24V, 3A, Power: 40W( Servo Motor Optional)
Duty Cycle 100%
Passage Width
600mm to 1000mm
Passage direction
Single directional/Bi-directional(Optional)
Operating time
Throughput Rate
30persons/minute(Normally Closed) or 40 persons/(Normally Open)
reset Time after Power on
5,000,000 Cycles
Automatic Reset Function
Automatically locked within set time(Time Adjustable)
LED Indcator
Operation Humidity
0~95%(No Freezing)
Operation Temperature
Operation Eenvironment
Protection Level
Communication Interface
Standard RS485 interface, distance ≤1200 meters
Input Interface
Relay switch signal or 12V electrical level signal or 12V pulse signal of pulse width > 100ms, drive current >10mA





1. Long-life performance, high operation dependability and fast response


2. The whole system runs smoothly, low noise, no mechanical impact


3.Single directional or Bi-directional is selectable


4. Anti-collision, gate closes when no valid signal is given.


5. Protection functions for gate, gate open to prevent motor from being damaged if there is outer force collision.


6. Automatic reset function: swing arms will lock automatically within 5s (can be setting) if passenger delay to entry


7.Auto-reset. If not go through in a preset time, pass right would be cancelled automatically. (time adjustable)


8. Reset function by photocells


9. Anti-pinch function by photocells


10.Compatible with Access control system, consumption system, ESD system, E-ticket system and so on.


11. One way or two way control 12. Unit can be controlled and administered by remote control 13. Led lamp indicator




Intelligent high speed gate ---can be compatible with IC card, ID card, barcode card, fingerprint reading card

recognition device used for staff, provide civilized, orderly access methods; effectively manage the access of staff.

Can be widely used in the station, wharf subway, factories, office building, hotel, clubs, intelligent community,

enterprises and institution that need intelligent access management.




1.What is your products biggest advantage?
-------- DC Brushless Motor , no maintenance all the of life, No Attrition, Low Noise ,Hight Intelligence.

2.What is  your flap gates opening and closing time ?
-------- <=0.4s .

3.What is the Swing barrier gate Working environment ?
-------- They can be used indoor and outdoor(with shelter)

4. Can I customize it ?
--------Yes, Welcome . We are the manufacturer , We are welcome OEM .

5.What's you warranty?
-------- 1 year time warranty .
