BLDC Motor 5 Million Times Glass Turnstile Gate Access Control IP45
High-Performance Access Control Solution

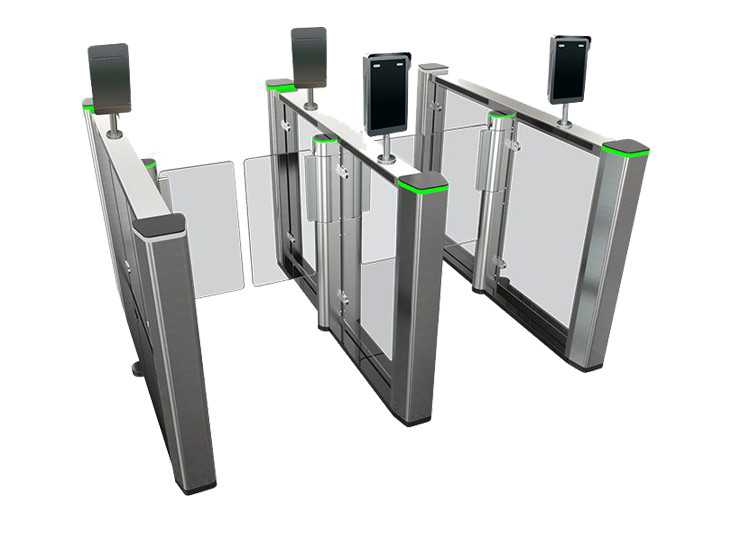

SINOMATIC optical swing turnstile provides an artistic and high artwork solution for access control at sites with high aesthetic requirements, such as hotels, banks, and chambers.
Designed for accessibility with passage widths from 600mm to 1000mm, this turnstile accommodates wheelchair users, large luggage, bulk goods transportation, and bicycles.
Premium Construction Materials
The cabinet features brushed stainless steel construction with Plexiglas/acrylic glass wings. Integrated LED indicators provide clear visual feedback (red for no entry, green for entry). The system includes at least 4 pairs of infrared sensors to ensure passage security.
Compatible with third-party access control systems including RFID, fingerprint, and biometric reader devices.
Manufacturing Advantages
The SN-HSG150 high-speed gate features profiles stamped from standard SS304 stainless steel combined with aluminum alloy and cold-rolled steel. This beautiful, rust-proof, and durable design resists external damage while adapting standard electrical interfaces for easy integration with barcode cards, ID cards, IC cards, and other reader systems.
The system includes fire prevention functionality to ensure unimpeded emergency egress and timely pedestrian evacuation.
Product Specifications
| Model |
SN-HSG150 |
| Case Material |
SS304, MS, Aluminum Alloy |
| Barrier Arm Material |
Transparent Acrylic |
| Production Process |
CNC Laser Cutting |
| Size |
1210*150*1060mm (Customization acceptable) |
| Power Input |
AC100-240V, 50/60HZ |
| Operation Voltage |
DC24V, 3A, Power: 40W (Servo Motor Optional) |
| Electromagnetic |
Duty Cycle 100% |
| Passage Width |
600mm (Customization acceptable) |
| Passage Direction |
Single directional/Bi-directional (Optional) |
| Operating Time |
1S |
| Throughput Rate |
30 persons/minute (Normally Closed) or 40 persons/minute (Normally Open) |
| Reset Time after Power On |
3S |
| MCBF |
5,000,000 Cycles |
| Automatic Reset Function |
Automatically locked within set time (Time Adjustable) |
| LED Indicator |
Yes |
| Operation Humidity |
0~95% (No Freezing) |
| Operation Temperature |
-20℃~+60℃ |
| Operation Environment |
Indoor, Outdoor (Shelter) |
| Protection Level |
IP45 |
| Communication Interface |
Standard RS485 interface, distance ≤1200 meters |
| Input Interface |
Relay switch signal or 12V electrical level signal or 12V pulse signal of pulse width > 100ms, drive current >10mA |
Features and Functions
- Working method can be set by the buttons on the main panel
- Anti-pinch, anti-collision protection with automatic motor stop and reset delay
- Anti-illegal entry, anti-intrusion, and auto-close for reverse direction
- Anti-collision with automatic closure when no valid signal is detected
- Gate protection functions to prevent motor damage from external force collisions
- Synchronized gate operation
- Auto-reset function with adjustable timing
- Reset function by photocells
- Anti-pinch function by photocells
- Compatible with access control, consumption, ESD, and E-ticket systems
- One-way or two-way control options
- Remote control administration capability
- LED lamp indicator system
Applications
Intelligent high-speed gates compatible with IC cards, ID cards, barcode cards, and fingerprint reading devices for staff management. Provides civilized, orderly access methods while effectively managing personnel entry. Widely used in stations, wharves, subways, factories, office buildings, hotels, clubs, intelligent communities, and enterprises requiring intelligent access management.
Frequently Asked Questions
What is your product's biggest advantage?
DC Brushless Motor provides maintenance-free operation throughout product life, no attrition, low noise, and high intelligence.
What is your flap gate opening and closing time?
≤0.4 seconds
What is the swing barrier gate working environment?
Suitable for both indoor and outdoor use (with shelter)
Can I customize it?
Yes, we welcome OEM customization as we are the manufacturer.
What is your warranty?
1-year time warranty included.
