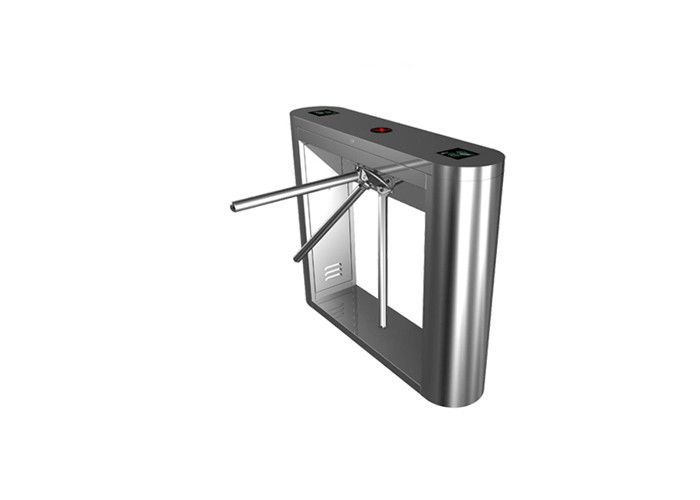

24V Bridge Low Frequency Tripod Turnstile Gate 1.2mm Thickness
  • 24V Bridge Low Frequency Tripod Turnstile Gate 1.2mm Thickness
  • 24V Bridge Low Frequency Tripod Turnstile Gate 1.2mm Thickness
  • 24V Bridge Low Frequency Tripod Turnstile Gate 1.2mm Thickness

24V Bridge Low Frequency Tripod Turnstile Gate 1.2mm Thickness

Place of Origin Shenzhen, China.
Certification CE/ ISO
Model Number SN-TT03
Product Details
Turnstile Type:
Bridge Type
Material Thickness:
At Least 1.2mm
Access Controller:
Service Life:
More Than 5 Million Times
Control Voltage:
High Light:

Low Frequency Tripod Turnstile Gate


24V Bridge Tripod Turnstile Gate


1.2mm Thickness Tripod Barrier Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
3,000pcs per month
Product Description

Indoor And Outdoor Low-Frequency One Person At A Time Tripod Turnstile Gate


If you just want a simple gate solution in order to control the passage of one person at a time, our tripod turnstile

is an excellent choice for you.

We recommend tripod turnstiles for indoor and outdoor low-frequency purposes. That includes gyms, colleges,

parks, and libraries. Additionally, they are quite easy to set up. We ship them pre-assembled; the only thing you

need to do is fix them to the ground and plug them in.

We're one of the top  access control turnstile gate manufacturers in Shenzhen China, our price is very competitive,

contact us to get a free quote now!




1. Mechanical drive unit with solenoid locking mechanism eliminate the use of expensive electric motor and

reduce maintenance cost.


2. If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will

auto-rotate back to the current idle position.


3. Built in adjustable tensioner to control rotation force to minimize over rotation. Arm just need to be pushed

lightly to rotate therefore even elderly or children are able to use the turnstile.


4. Turnstile can be configured to be bi-directional or uni-directional. Housing is locked with special key to avoid



5. Innovative and unique mounting surface ensures simple and convenient installation for system integrator.


6. Can be used with variety of access control devices: IC / ID card readers, bar-code scanner, fingerprints, etc.

(Access controller needed)


7. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds),

the system will cancel the authority of the current user automatically.


8. The mechanism is equipped with an automatic regulated hydraulic buffer device. There is no noise and

impact when running.


9. Process: Laser cutting, CNC bending, fine grinding


10. Mechanical structure: Electromagnet unlocking, hydraulic cushioning device combined with high reliability



11. Circuit board: Industrial grade design, suitable for all kinds of places with large dust, heavy moisture and


temperature changes.


12. Travel switch: Imported durable travel switch


13. Buffering device: Accurate hydraulic buffer, convenient adjustment of force, stable buffering force, no

change due

to climate and temperature


14. Light indicator: After brushing the valid card, gives the green arrow the traffic indication, concise and clear;

after the illegal card is swiped, the product immediately displays the red cross warning sign.


Technical specification


Power voltage
AC220±10%,50Hz, AC110±10%,60Hz
Working environment
Length of the bar
Pass speed
30 Persons/min
Movement working power
Width of passage
Open direction
Single and Double
Work environment
Outdoor and indoor
Service life
≥5 million
About 60kg
Open signal
Relay signal input
Card reader installation position
Controller mounting position



24V Bridge Low Frequency Tripod Turnstile Gate 1.2mm Thickness 0



Why choose us:


1. Our Factory has 20 years OEM/ODM experiences in the line of access control turnstile and barrier.

2. Prompt delivery time. Usually we keep stock of standard model which ensure the prompt delivery.

3. We accept OEM/ODM orders to meet the requirements of clients.

4. Trial order is acceptable. Clients can buy sample and test it before bulk order.


5. Online technical support makes it carefree to be our business partner.


6. A variety of transportation for your choice. Sea shipment, air cargo or express, depends on your demand.


7. Factory can be visited on working days. Clients are warmly welcome to visit our factory.
