6m Length 2s Flat Spike Tyre Killer Electromechanical Drive A3 Steel

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-TK02
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-7 working days after payment received
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 3,00 pcs per month
Product Details
Type Flat Type Color Yellow/black, Yellow/red, Etc
Running Time 1-2s Length 1m To 6m(or Longer)
Power Supply 220V/ 110V Motor 24V
High Light

6m Length Spike Tyre Killer

,

2s Flat Spike Tyre Killer

,

A3 Steel Road Spike Barrier

Leave a Message
Product Description

Maintenance Free Electromechanical Drive System Flat Type Spike Tyre Killer



PRODUCT DESCRIPTION



SINOMATIC flat type Spike tyre killers are designed to restrict and stop forceful entries of vehicles at defense

installations, hotels, power sector installations and other security sensitive sites. Each Spike Road Block unit is

equipped with maintenance free electromechanical drive system and microprocessor based.



Automatic Spike Road Blocks control panel, capable of receiving input signal from variety of devices such as

push button, remote control, optical beam sensors and magnetic card readers etc. For added safety and security

Spike Road Block can be interlocked with  Automatic Barrier to work in unison with single activation device and

control panel. Thus, Spikes will automatically go down when the barrier is open and come up when the barrier

is closed.





PRODUCT SPECIFICATION



Power
AC220V/110V(simple phase)/380V(three phase)
Operating Temperature
-35°C~65°C,Waterproof, Dustproof
System Power
1.5KW/2.2KW/3.7KW/5.5kw(heavy-duty)
Up&down time
1~2 seconds
Parts of tyre killer
tyre killer, control box, installation accessories, remote control
Length of the tyre killer
3m to 6m (or OEM)
Control Distance
Electric control, <1000Meters
Frame Thickness
10mm
Communication Connection
RS485 interface and relay interface
Material
A3 steel, spray anti-rust paint;
Colour
Various color optional
Applications
Highway Charging, Airport, Gov. Military Area, Banks, Ports & Embassy





FUNCTIONS & FEATURES



1. Firm and anti-collision. The tyre killer body and spikes are made of 10mm thickness standard Q235

    carbon steel with strong load-bearing and destructive power.The structure is firm and durable.


2. IP68 military protection standard.


3. Speedy and Low noise.The hydraulic tyre killer is hydraulically powered through both the raise and lower

     cycles, taking much less time and lower level of noise to operate.Typical operating (opening /closing) time

     is 1-2 seconds.


4. Safe and Reliable.Single phase drive motor, or a three phase motor to allow very high frequency of operation.

    This is ideal for large car parks or busy sites. Environment protection, low power consumption and high reliability.


5. Flexible control method, The system support remote control and drive-by-wire typically. For remote control,

    the controller is available to work 30 meters far away from the blocker device(depends on the radio communication

    environment on site).


6. Back up solution,Support manual operate mode,the spikes can lift or fall on level place by manual when power-off.



7. Convenient maintenance. It is easy to check, test and fix the problem.


8. Functional and Manageable: Safety accessories like photocells, inductive loop detectors , beam sensor can

    be integrated to the system very easily.



9. It can be installed with other access control elements (for example bollards, road barrier, turnstiles, fire alarm

    system, traffic light) in order to achieve an access control check-point at the highest level of security.


10. Wide range of optional configurations: Can be custom designed to suit your requirements and can be built

    in an almost infinite range of thickness and length to suit any roadway or level of security.

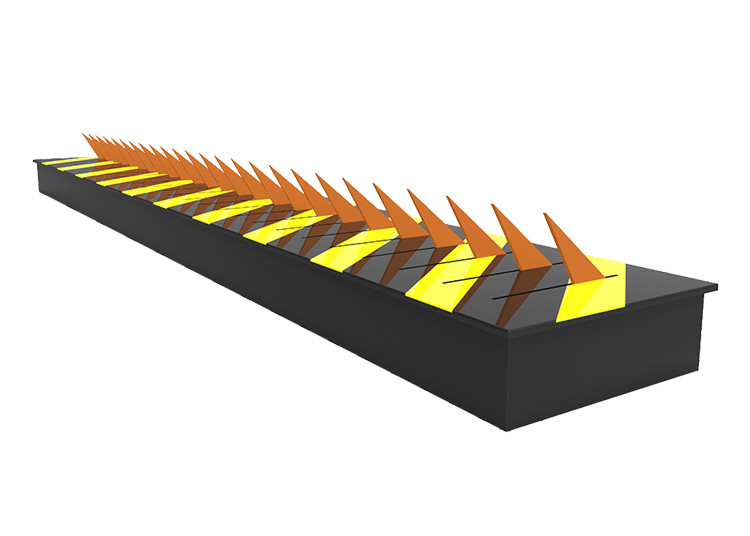

6m Length 2s Flat Spike Tyre Killer Electromechanical Drive A3 Steel 0
