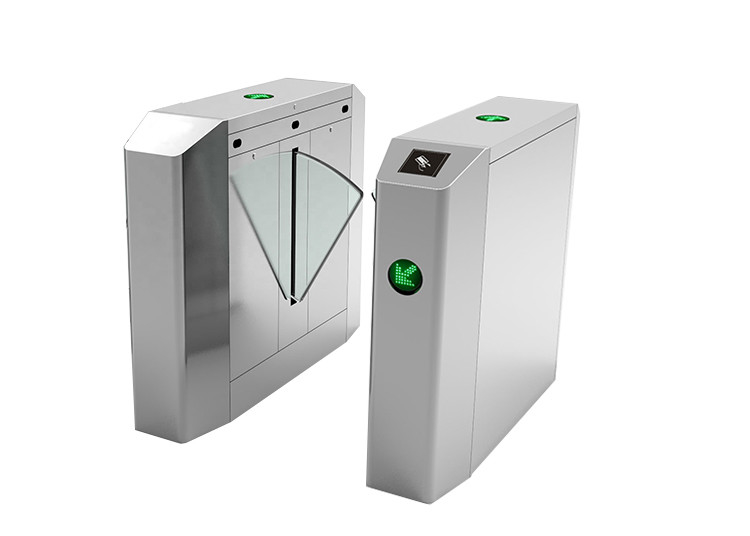

SS304 Retractable Wire Drawing Flap Barrier Gate Bi Directional IP44
  • SS304 Retractable Wire Drawing Flap Barrier Gate Bi Directional IP44
  • SS304 Retractable Wire Drawing Flap Barrier Gate Bi Directional IP44
  • SS304 Retractable Wire Drawing Flap Barrier Gate Bi Directional IP44

SS304 Retractable Wire Drawing Flap Barrier Gate Bi Directional IP44

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FB01
Product Details
Surface Treatment:
Wire Drawing
Motor Voltage:
DC 24V
Flap Opening / Closing Time:
1s
IP Grade:
IP44
Case Material:
SS304
Material Thickness:
1.2mm At Least
High Light:

Wire Drawing Flap Barrier Gate

,

SS304 Retractable Flap Barrier Gate

,

IP44 Bi Directional Barrier Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T or western Union
Supply Ability
3,000pcs per month
Product Description

OEM Manufa​cture Security Flexible Bi-directional Automatic Retractable Flap Barrier Gate



PRODUCT DESCRIPTION



Retractable Flap Barriers protect secure areas of a building against unauthorised access and offer a variety of

options for different levels of security. Retractable Flap barrier is available in single lane & multiple lane configurations

as per site requirements. Two housings (end column) with retractable flap make one lane of access. One housing

(inter lane) with two flaps back to back is used in between the end columns to increase the number of lanes.



The main areas of application are places like, Banks, financial institutions, Governmental and institutional

establishments, Office building entrances, administrative sites, libraries, universities and colleges,

pharmaceutical industries, Airports, etc.



BASIC FUNCTION AND FEATURES


*Special stretch wing design, save closing time, improve the passage speed, prevent trailing, increase the security level.
*Especially suitable for ticketing channel, to avoid fare evasion behaviors.
*Unified and standard external electrical interface, which can be connected with various reading and writing devices,

which is convenient for system integration.

*Aesthetics-Discrete and elegant design, Quality of finish, Bright& modern pictograms.
*Security-Secure, reliable, performing tailgating detection system
*Retractable obstacles allow fast closure of the walkway
*Mechanical locking, preventing forced opening
*A dissuasive access control in one or both directions







TECHNICIAN SPECIFICATIONS



DESCRIPTION SPECIFICATION
Size
1200x300x990mm
Material
304 stainless steel
Thickness of the cabinet
1.2mm to 1.5mm
Unlocking time
0.2s
Traffic speed
≤30 persons/min
Channel width
≤600mm
Voltage input
220V, 50Hz/ 110V, 60Hz.
Motor voltage
24V
Ambient temperature
-20℃~+60℃
Infrared
3 to 4 pairs
Power
40W
Opening signal input
dry contact





MAIN FUNCTION AND FEATURES



1. Fault detection and alarm functions, easy to use and maintenance.



2. The running status can be programmed and controlled with the built-in keyboard on the main board.



3. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop

working automatically within the prescribed time and reset again after the default delay (till fully reset).



4. Anti-breakthrough function. The gate is locked automatically until opening signal received.



5. Synchronization functions (for dual gate equipment).



6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds),

the system will cancel the authority of the current user automatically.



7. Gate can be set as normally open or normally closed.



8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Access controller needed).



9. Direction can be set as single-direction or bi-direction.



10. LED direction indicator.



11. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.



12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.



13. Counter function (optional).



14. Support infrared photocell for anti-pinch and reset function.
