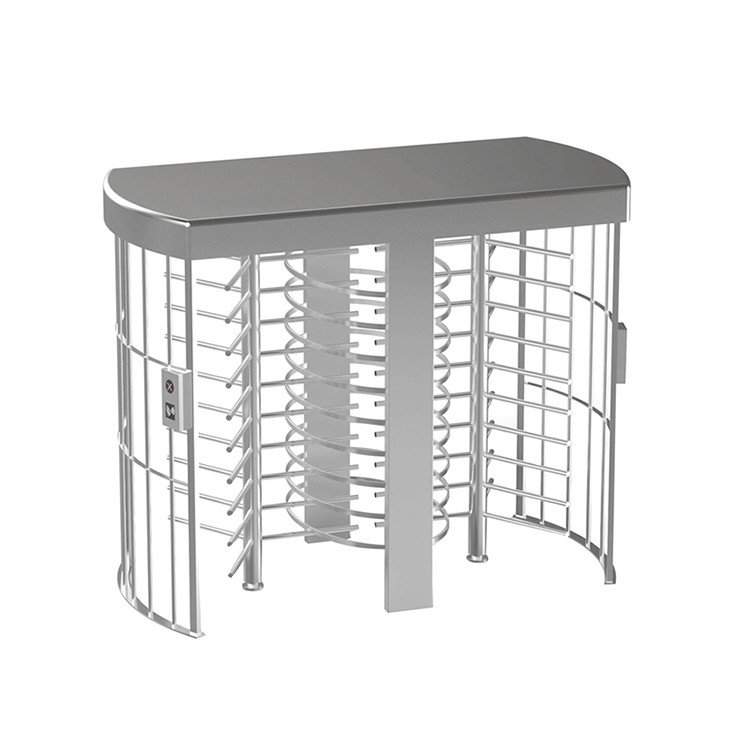

IP45 Stainless Steel Double Lane Turnstile Full Height SS304 40W

Place of Origin Shenzhen, China.
Certification CE/ ISO
Model Number SN-FHT02
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 3,00pcs per month
Product Details
Arm Angle 90 /120 Degree Application Indoor/outdoor
Control Voltage 24V Color Optional
Mechanism Semi-auto(motor Free) IP Grade IP45
High Light

Stainless Steel Double Lane Turnstile


IP45 Double Lane Turnstile


40W Pedestrian Rotating Turnstile

Leave a Message
Product Description

Double Lane Stainless Steel Automatic Full Height Double Security Revolving Turnstile Door




Robust turnstiles from the SINOMATIC range of automation products are ideal for securing outdoor region of

the secured premises. Full height turnstiles provide comprehensive visual as well as physical deterrent compared

to that of half height turnstiles. Tamper-resistant and weatherproof, full height turnstiles offer unmatched reliability

and have proved to withstand even the most unforgiving environments.


Full height turnstiles are recommended for use when absolute entrance or exit security is required, especially

at un-manned locations. These systems are either used as stand-alone units or as a part of an integrated system,

SINOMATIC full height turnstiles can further be engineered and customised to meet all security based control








Dimensions 2300*1370*2300mm
Cabinet material 38 round tube, 1.2mm Mild steel or SS304/316
Channel width 600mm
Ambient temperature -20 degrees to 60 degrees
Working environment indoor and outdoor (outdoor canopy)
Input voltage 100V~240V
Driving voltage 24V
Equipment power 40W
Response time 0.2S
Passing speed 30 people / min
Communication distance Less than 1200m
Open brake signal input Dry contact
Switching door time Less than 1S





1. Full height turnstiles, with electromagnetic lock and microprocessor based control panel requires no routine


2. In conjunction with card readers they can be used to control access reliably without the need for personnel


3. Ensures controlled passage of individuals from one side to the other in the permitted direction.


4. Applicable for indoor as well as outdoor installations.

5. Full height turnstile systems can readily be connected to pre-existing access control systems.

6. The turnstile is capable to control the passage in both directions, with the option of single direction control

with the reverse direction locked or free upon request utilizing a push button fixed to the upright.

7. SINOMATIC Full Height turnstiles are compatible with all types of ID readers and are available in MS and

SS caseworks.


8. Automatically low noise mechanism core equipped, highly cost-performance


9. Sense positioning, reducing mechanical impact make lifetime longer


10. Operating efficiency, 1~2 seconds open & close


11. Lowest Noise : No matter in operating or outside control, Noise control under 30db


12. Self-checking and Alarm warning for maintainence


13. Resetting: System cancel authorized pass if passenger delayed pass


14. Anti-following : prevent illegal passing


15. Anti-clamp :The wings will stopped during in external block, the wings reset again after default delay


16. The rotary wings will be locked automatically if the system do not receive IR signal


17. Multi-passage for variety application demands , cover 99% needs on earth


18. Programmable signal separate control : pass time,pass speed etc. parameter


19. Compatible with IC/ID card reader, fingerprint reader, face recognition devices.


20. Customize Options: LED display, Voice guide, Warning Lamps, Indicator Lights guide, Audible &Visible Alarm
