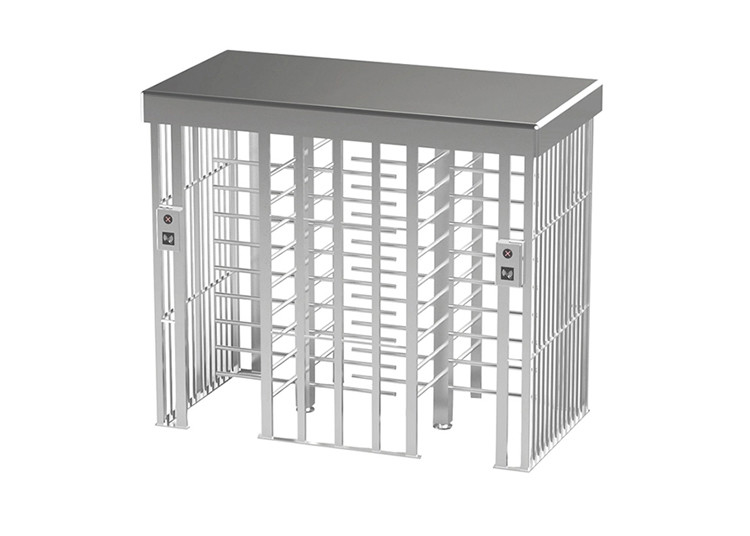

40W 24V RFID Full Height Turnstile Double 600mm Channel

Place of Origin Shenzhen, China.
Certification CE/ ISO
Model Number SN-FHT02
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 3,00pcs per month
Product Details
Channel Double Arm Angle 90 /120 Degree
Input Interface Dry Contact Application Indoor/outdoor
Control Voltage 24V Color Optional
High Light

24V RFID Full Height Turnstile


40W Full Height Turnstile


600mm Channel Full Body Turnstile

Leave a Message
Product Description

Door Access Control Equipment Security Double Channel RFID Full Height Turnstile Gate




Robust turnstiles from the SINOMATIC range of automation products are ideal for securing outdoor region of

the secured premises. Full height turnstiles provide comprehensive visual as well as physical deterrent compared

to that of half height turnstiles. Tamper-resistant and weatherproof, full height turnstiles offer unmatched reliability

and have proved to withstand even the most unforgiving environments.




Basic parameters:


Dimensions 2300*1370*2300mm
Cabinet material 38 round tube, 1.2mm Mild steel or SS304/316
Channel width 600mm
Ambient temperature -20 degrees to 60 degrees
Working environment indoor and outdoor (outdoor canopy)


Technical Parameters:

Input voltage 100V~240V
Driving voltage 24V
Equipment power 40W
Response time 0.2S
Passing speed 30 people / min
Communication distance Less than 1200m
Open brake signal input Dry contact
Switching door time Less than 1S





1) Automatically low noise mechanism core equipped, highly cost-performance


2) Sense positioning, reducing mechanical impact make lifetime longer


3) Operating efficiency, 1~2 seconds open & close


4) Lowest Noise : No matter in operating or outside control, Noise control under 30db


5) Self-checking and Alarm warning for maintainence


6) Resetting: System cancel authorized pass if passenger delayed pass


7) Anti-following : prevent illegal passing


8) Anti-clamp :The wings will stopped during in external block, the wings reset again after default delay


9) The rotary wings will be locked automatically if the system do not receive IR signal


10) Multi-passage for variety application demands , cover 99% needs on earth


11) Programmable signal separate control : pass time,pass speed etc. parameter


12) RS232/RS485 interface meet all kind of communications or wireless connection


13) Compatible with IC/ID card reader, fingerprint reader, face recognition devices.


14) Long-distance management through COMPUTER


15) Customize Options: LED display, Voice guide, Warning Lamps, Indicator Lights guide, Audible &Visible Alarm





Suitable for commercial buildings, subways, airports, customs, exhibition halls, government buildings, financial

institutions, clubs and other high-end indoor applications.
