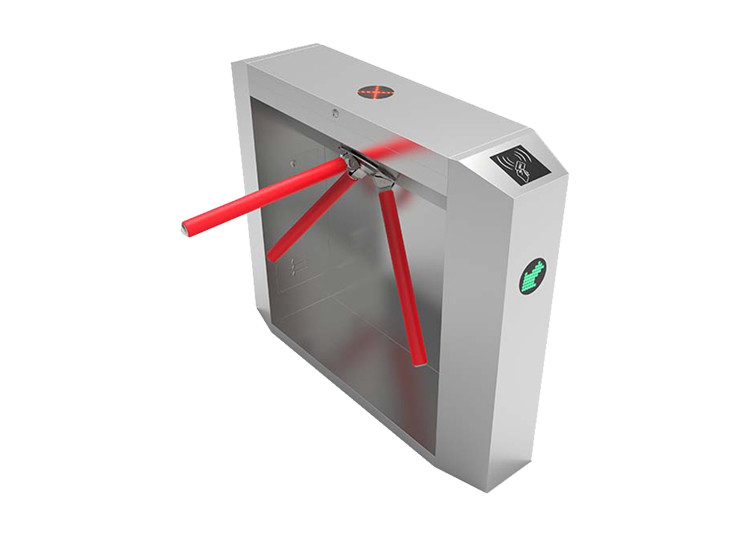

Hydraulic Buffer 550mm Width Tripod Barrier Gate Finger Print Reader IP45
  • Hydraulic Buffer 550mm Width Tripod Barrier Gate Finger Print Reader IP45
  • Hydraulic Buffer 550mm Width Tripod Barrier Gate Finger Print Reader IP45

Hydraulic Buffer 550mm Width Tripod Barrier Gate Finger Print Reader IP45

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-TT03
Product Details
IP Grade:
IP45
Warranty:
12 Months(default)
Material Thickness:
At Least 1.2mm
Access Controller:
Optional
Service Life:
More Than 5 Million Times
Control Voltage:
24V
Highlight:

550mm Width Tripod Barrier Gate

,

Hydraulic Buffer Tripod Barrier Gate

,

IP45 Access Control Turnstile Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
3,000pcs per month
Product Description

Wholesale ZK Teco One Stop Access Control Solution Tripod Turnstile Gate System





Product introduction



The standard tripod turnstile series are made of 304 stainless steel, which is rustproof, durable, and can resist

external destroy. Its structure of cuboid framework and the arm not only provide people with civilized and orderly

transit manner but also prevent the illegal in and out effectively.



Our advantages



Process: Laser cutting, CNC bending, fine grinding



Mechanical structure: Electromagnet unlocking, hydraulic cushioning device combined with high reliability

design



Circuit board: Industrial grade design, suitable for all kinds of places with large dust, heavy moisture and

large

temperature changes.



Travel switch: Imported durable travel switch



Buffering device: Accurate hydraulic buffer, convenient adjustment of force, stable buffering force, no

change due

to climate and temperature



Light indicator: After brushing the valid card, gives the green arrow the traffic indication, concise and clear;

after the illegal card is swiped, the product immediately displays the red cross warning sign.



Technical specification



Power voltage
AC220±10%,50Hz, AC110±10%,60Hz
Working environment
-20℃~+60℃
Humidity
5%~90%
Length of the bar
500mm
Size
1200*280*980mm
Pass speed
30 Persons/min
Movement working power
DC24±10%
Width of passage
≤550mm
Open direction
Single and Double
Work environment
Outdoor and indoor
Service life
≥5 million
Weight
About 60kg
Open signal
Relay signal input
Card reader installation position
Two
Controller mounting position
One





MAIN FUNCTIONS AND FEATURES



1. Mechanical drive unit with solenoid locking mechanism eliminate the use of expensive electric motor and

reduce maintenance cost.



2. If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will

auto-rotate back to the current idle position.



3. Built in adjustable tensioner to control rotation force to minimize over rotation. Arm just need to be pushed

lightly to rotate therefore even elderly or children are able to use the turnstile.



4. Turnstile can be configured to be bi-directional or uni-directional. Housing is locked with special key to avoid

tampering.



5. Innovative and unique mounting surface ensures simple and convenient installation for system integrator.



6. Can be used with variety of access control devices: IC / ID card readers, bar-code scanner, fingerprints, etc.

(Access controller needed)



7. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds),

the system will cancel the authority of the current user automatically.



8. The mechanism is equipped with an automatic regulated hydraulic buffer device. There is no noise and impact

when running.



Why choose us:



1. Our Factory has 20 years OEM/ODM experiences in the line of access control turnstile and barrier.


2. Prompt delivery time. Usually we keep stock of standard model which ensure the prompt delivery.


3. We accept OEM/ODM orders to meet the requirements of clients.


4. Trial order is acceptable. Clients can buy sample and test it before bulk order.



5. Online technical support makes it carefree to be our business partner.



6. A variety of transportation for your choice. Sea shipment, air cargo or express, depends on your demand.



7. Factory can be visited on working days. Clients are warmly welcome to visit our factory.
