SS304 IP45 Tripod Turnstile Gate with 510mm Arm for Access Control
  • SS304 IP45 Tripod Turnstile Gate with 510mm Arm for Access Control
  • SS304 IP45 Tripod Turnstile Gate with 510mm Arm for Access Control
  • SS304 IP45 Tripod Turnstile Gate with 510mm Arm for Access Control
SS304 IP45 Tripod Turnstile Gate with 510mm Arm for Access Control

SS304 IP45 Tripod Turnstile Gate with 510mm Arm for Access Control

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-TT03
Product Details
Material Of Housing:
SS304 (other Material Optional)
OEM/ODM:
Supported
IP Grade:
IP45
Warranty:
12 Months（default）
Material Thickness:
At Least 1.2mm
Access Controller:
Optional
Highlight:

Light Indicator Tripod Turnstile Gate

,

IP45 SS304 Tripod Turnstile Gate

,

510mm Arm Tripod Security Gates

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union,
Supply Ability
3,000pcs per month
Product Description

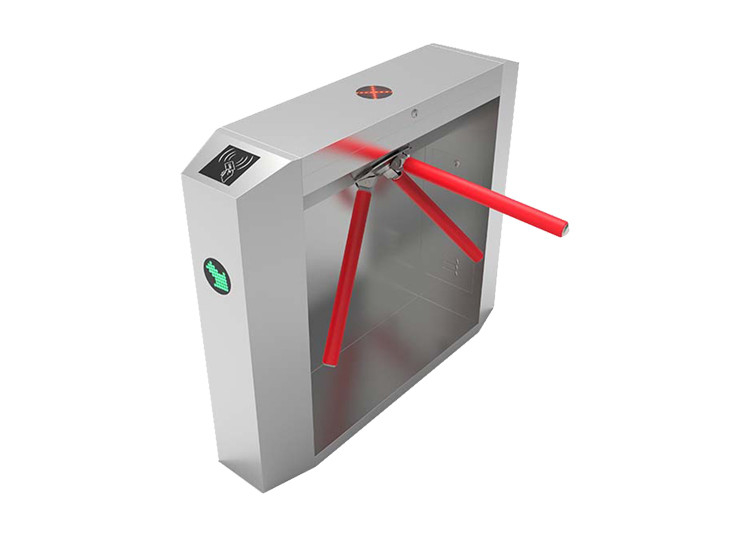

Light Indicator IP45 SS304 Tripod Turnstile Gate
Wholesale ZK Teco One Stop Access Control Solution Tripod Turnstile Gate System
Product Overview
Our standard tripod turnstile series are constructed from 304 stainless steel, offering rustproof durability and excellent resistance to external damage. The cuboid framework and arm design provide organized pedestrian flow while effectively preventing unauthorized access.
Manufacturing & Construction
Production Process: Laser cutting, CNC bending, fine grinding
Mechanical Structure: Electromagnet unlocking with hydraulic cushioning device
Circuit Board: Industrial grade design suitable for harsh environments
Travel Switch: Imported durable components
Buffering System: Precision hydraulic buffer with climate-resistant performance
Light Indicator: Green arrow for authorized access, red cross for denied entry
Main Functions & Features
  • Mechanical drive unit with solenoid locking mechanism reduces maintenance costs
  • Automatic arm positioning - returns to idle position based on rotation angle
  • Adjustable tensioner for controlled rotation force, suitable for all users
  • Configurable bi-directional or uni-directional operation
  • Secure housing with special key lock to prevent tampering
  • Compatible with various access control devices (IC/ID card readers, biometrics, barcode scanners)
  • Automatic reset function with customizable timing
  • Quiet operation with regulated hydraulic buffer system
Technical Specifications
Model SN-TT03
Case Material SS304 Stainless Steel
Barrier Arm Material SS304 Stainless Steel
Production Process CNC Laser Cutting
Dimensions 1200×280×980mm
Power Input AC100-240V, 50/60HZ
Operating Voltage DC24V
Barrier Arm Length 510mm
Maximum Applied Force 80Kg
Operation Driving Force 3Kg
Throughput Rate 30 persons/minute
Operating Time 0.2 seconds
Operating Temperature -20℃ to +60℃
Protection Level IP45
MCBF 5,000,000 Cycles
Why Choose Our Turnstile Solutions
  • 20+ years of OEM/ODM experience in access control systems
  • Prompt delivery with standard model inventory
  • Custom OEM/ODM orders accepted
  • Sample testing available before bulk orders
  • Comprehensive online technical support
  • Multiple shipping options (sea, air, express)
  • Factory visits welcome on working days
