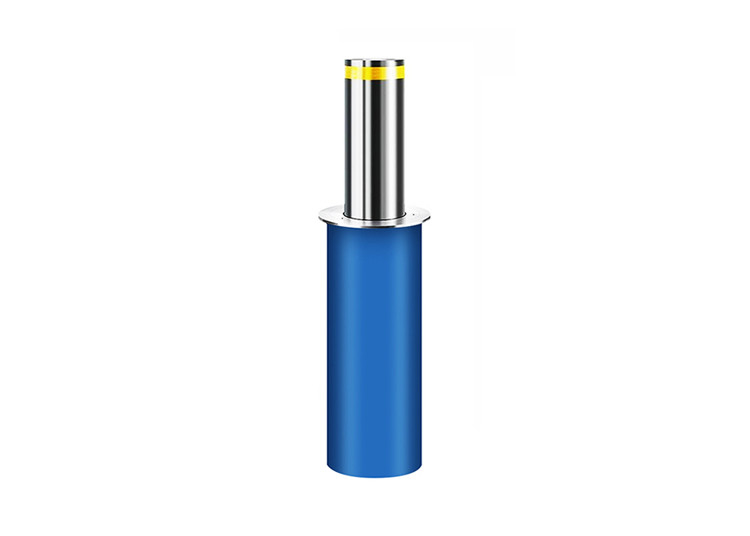

Electric Hydraulic Integrated Stainless Steel Traffic Control Flexible Automatic Rising Bollard
About Sinomatic road bollard
The product adopts hydraulic drive technology for mandatory interception, strong load-bearing and anti-collision
capability, simple and flexible operation, hydraulic transmission, stable and fast action, low noise, strong traffic
capacity, safe and reliable, strong carrying capacity and stable lifting.
MAIN FEATURES
1. System:electric-hydraulic system
2. Max passing pressure: 80T to 120T trucks
3. Voltage:AC220V 50Hz Integrated
4. Power(w):300W Integrated
5. Up time:3-6S
6. Down time:3-6S
7. Working temperature:-65℃~75℃
8. Storage Environment:-10℃~65℃, water-proof, damp-proof,dust-proof.
9. Material:304 stainless steel
10. Rising height:600mm(standard) Max can be 1000mm
11. Bollard Thickness: 6mm (standard), 8mm, 10mm, 12mm, 20mm optional
12. Diameter:219(Standard) 273mm(optional)
13. Structure : With load-bearing steel beam column, anti-collision steel
beam column
14. LED light (optional)
15. Reflective sticker: 2 strips
16. Link-control interface
17. In case of a power outage, the bollards can be manually lowered down
18. IP rate: IP68
19. Weight:150±KG Integrated
20. In rising and falling, reversible operation is available
Product specifications
|
Product Name
|
Automatic hydraulic road bollard
|
|
Material
|
304 stainless steel
|
|
Control mode
|
integrated hydraulic and electro
|
|
Power supply
|
110V/220V/(control voltage 24V)
|
|
Bollard diameter
|
168mm, 219mm(default), 273mm, 324mm etc
|
|
Rising height
|
600mm(default), 800mm, 1000mm
|
| Wall thickness |
6mm(default), 8mm, 10mm, 15mm, 20mm |
|
Waterproof degree
|
IP68
|
|
Surface treatment
|
brushed finishing
|
|
Operating Temperature
|
-40℃ to +70℃
|
|
Control model
|
push button/remote control standard, loop detector /card reader optional
|
|
Running speed
|
2-4S ( ascending )
|
|
Safety signs
|
reflective tape/LED warning light zipper/loop detector system traffic lights
|
|
Cylinder
|
stainless steel/plastic coating for steel tube Traffic Road Bollard,automatic bollards,cast iron road stake bollards
|
|
Optional Function
|
Traffic Lamp/Solar light/Hand Pump/Safety Photocell, Reflective tape/sticker, buzzer
|
|
Optional Color
|
Brushed titanium gold, champagne, rose gold, Brown, red, purple,sapphire blue, gold, dark blue paint, chocolate,stainless steel,Chinese red paint
|
Application
The rising bollards are widely used in highway toll stations, checkpoints, prisons, airports, government
agencies, embassies,military bases, customs, banks, industrial and mining enterprises, ports, warehouses,
parking lots, and all places where vehicletraffic is restricted.
SINOMATIC road bollard advantages
Different thickness of steel is available (default 6 mm)
The different color is available
Customized size is available
Steady and safe due to the OMRON PLC control system
Speedy rising time and durable quality with hydraulic pressure
Housing with durable and stainless Galvanization
Optimization of the frame structure, high anti-impact capability, high loading capability
High security and anti-collision ability
With a reflective band and a low energy consumption LED light at night
Automatic bollard Feature
High security and anti-collision ability
Pneumatic air pump in control cabinet could procide large power safely for a long time.
Electronic control, automatic rise/fall
High system independence
Automatic bollard Reflective band
Various color options for Glossee aveolate reflective band; only need weak light to be clearly visible at night.
Automatic bollard Materials Available
304 stainless steel, 316 stainless steel and carbon steel with electrophoresis spray paint.Automatic bollard Flange
Anti-skid flange with unique some pattern design. Compatible with various road surface styles. Built-in PA orientation.
Automatic bollard Top cap
Its simple integration design is compatible with all kinds of architectural style. Excellent workmanship is amenable to any close attack.
