Hydraulic Road Blocker
>
|
|
| Place of Origin | Shenzhen, China. |
| Brand Name | SINOMATIC |
| Certification | CE/ ISO |
| Model Number | SN-HRB02 |

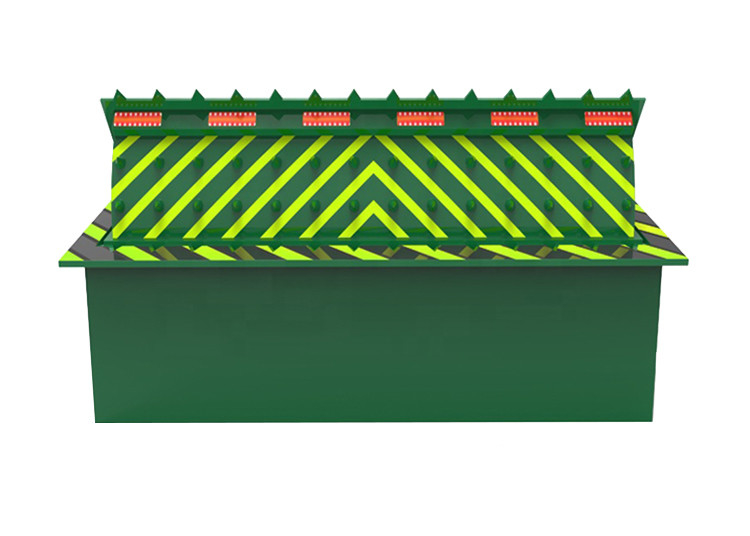

High Security Restricted Areas Access Control Military Base Hydraulic Power Road Blocker
General description
The SINOMATIC HRB02 Hydraulic road blocker is mainly design focused on protect sensitive area , that may
be violated by un-allowed vehicle forcibly entered, with high reliable and safe performance. Road blocker
normally consisted of steel framework, hydraulic station and electronic control system, according to different
situations, blocker could be customized.
Our products are normally installed for highly restricted areas such as government organization, military base,
jail, bank, nuclear power station, airport, customs, industrial base etc.
It also equipped with an emergency release system in case of power outages and other emergency situations,so
that vehicles could pass normally when power off.
Technical Parameter
| ITEM | SPECIFICATIONS |
| Control System | Electro- Hydraulic |
| Passing pressure: | ≤120 tons container trucks |
| System Dynamic power | 3.7KW |
| Rise time : | ≤1-3S(adjustable) |
| fall time : | ≤1-3S (adjustable) |
| Buffer function | buffer time :0.2s-0.5s |
| Running noise | ≤60 db |
| Voltage: | Three-phases 380V,(control voltage 24V) |
| Oil container: | 60L(default) |
| Control solenoid valve | 24V |
| Lifting solenoid valve | 24V |
| Remote control distance | Approx .50-100m |
| Working Temperature : | -45 ° C ~75 ° C(suitable) |
| Material: | A3 steel ,Spray anti-rust paint |
| Material thickness | 16mm,20 mm,25 mm (Optional) |
| Waterproof: | IP68, double sealed |
| LED light color | red,blue,green,yellow,purple,white…(customized) |
| Color: | red,blue,green,yellow…(can be customized) |
| Weight: | About 300KG/meter |
MAIN FUNCTION AND FEATURES
1. Durable,Overload,Operate Smoothly,Low Noise,Fast speed up & down
2. Micro control technology makes bollards work stable and reliable,Easy integrate to other systems
3. Compatible with road barrier,Turnstiles and other access system control to achieve automatic control
4. Advanced mature Hydraulic pressure technologies
5. Remote control system realize wireless control up & down within 50 to 100 meters range
6. Customized for different users requests
7. Controller display : LCD and LED
8. Swiping card system: support card reader to control bollards up&down
9. Connected with Computer Management OR Charging Systems
10. Can be manually raised and fall down if power cut.
11. Gang-control interface
12. Reliable structure, heavy duty load, smooth action, low noise.
13. In rising and falling, reversible operation is available .
14. Hydraulic drive comes with hydraulic lock
15. PLC programming command control system
16. LCD display ,Both Chinese and English menu.
17. PLC built-in encryption system
Case reference
Standard Road blocker size:(mm)
L2500*W1000*H760, Rising height: 500 (Customized)
L3000*W1000*H760, Rising height: 500 (Customized)
L3500*W1000*H760, Rising height: 500 (Customized)
L4000*W1000*H760, Rising height: 500 (Customized)
L4500*W1000*H760, Rising height: 500 (Customized)
L5000*W1000*H760, Rising height: 500 (Customized)
L5500*W1000*H760, Rising height: 500 (Customized)
L6000*W1000*H760, Rising height: 500 (Customized)
