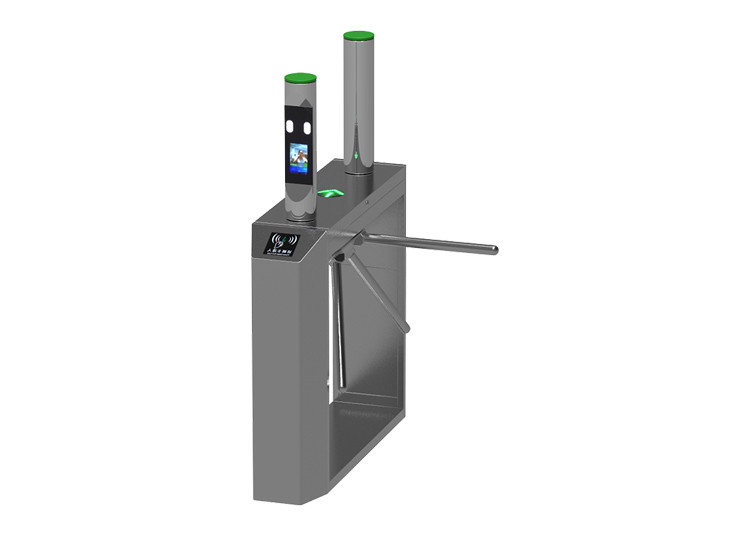

Bi-Directional Control Automatic Tripod Turnstile Gate with LED Indicator and SS304 Housing
  • Bi-Directional Control Automatic Tripod Turnstile Gate with LED Indicator and SS304 Housing
  • Bi-Directional Control Automatic Tripod Turnstile Gate with LED Indicator and SS304 Housing
  • Bi-Directional Control Automatic Tripod Turnstile Gate with LED Indicator and SS304 Housing
Bi-Directional Control Automatic Tripod Turnstile Gate with LED Indicator and SS304 Housing

Bi-Directional Control Automatic Tripod Turnstile Gate with LED Indicator and SS304 Housing

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-TT03
Product Details
LED Indication:
Included
Material Of Housing:
SS304 (other Material Optional)
OEM/ODM:
Supported
IP Grade:
IP45
Warranty:
12 Months At Least
Material Thickness:
1.2mm
Highlight:

Automatic Rotating Tripod Turnstile Gate

,

Bi Directional Tripod Turnstile Gate

,

LED Indicator Turnstile Barrier Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union,
Supply Ability
3,000pcs per month
Product Description
Bi Directional Automatic Rotating Tripod Turnstile Gate LED Indicator
Factory Direct High Security Bi-Directional Control Automatic Rotation Tripod Turnstile
Sinomatic semi-automatic tripod turnstile is designed for seamless integration with IC card, ID card, barcode, QR code, fingerprint, and face recognition systems. This access control solution provides orderly pedestrian management while preventing unauthorized entry.
The system features a rectangular frame and barrier arm configuration that ensures organized pedestrian flow and security. In emergency situations, the barrier arm can be quickly raised or lowered. Standard electrical interfaces allow easy integration with various card readers and access control devices.
Compliant with fire safety requirements, the system ensures unimpeded passageways for emergency evacuation while maintaining security protocols.
Main Functions and Features
  • Mechanical drive unit with solenoid locking mechanism eliminates expensive electric motors and reduces maintenance costs
  • Automatic rotation positioning: rotates to next idle position if arm moves beyond halfway, returns to current position if less than halfway
  • Built-in adjustable tensioner controls rotation force for smooth operation, suitable for all users including elderly and children
  • Configurable for bi-directional or uni-directional operation with tamper-resistant housing secured by special key
  • Innovative mounting surface design for simple and convenient installation
  • Compatible with various access control devices: IC/ID card readers, barcode scanners, fingerprint systems (access controller required)
  • Automatic reset function cancels user authority if passage isn't completed within preset time (default 5 seconds)
  • Automatic regulated hydraulic buffer device ensures quiet, impact-free operation
Technical Specifications
Model SN-TT03
Case Material SS304
Barrier Arm Material SS304
Production Process CNC Laser Cutting
Size 1200*280*980mm
Power Input AC100-240V, 50/60HZ
Operation Voltage DC24V
Electromagnetic Duty Cycle 100%
Barrier Arm Length 510mm
Arm Max Applied Force 80Kg
Arm Operation Driving Force 3Kg
Passage Direction Single Directional/Bi-directional (Optional)
Throughput Rate 30 persons/minute
Operating Time 0.2 seconds
Automatic Reset Function Automatically locked within set time
Operation Humidity 0~95% (No Freezing)
Operation Temperature -20℃~+60℃
Operation Environment Indoor, Outdoor (with shelter)
Protection Level IP45
Communication Interface Relay
MCBF 5,000,000 Cycles
Bi-Directional Control Automatic Tripod Turnstile Gate with LED Indicator and SS304 Housing 0
Why Choose Us
  • 20 years of OEM/ODM experience in access control turnstiles and barriers
  • Prompt delivery with standard models kept in stock
  • OEM/ODM orders accepted to meet specific client requirements
  • Trial orders available for testing before bulk purchasing
  • Comprehensive online technical support for business partners
  • Multiple transportation options: sea shipment, air cargo, or express delivery
  • Factory visits welcome on working days
