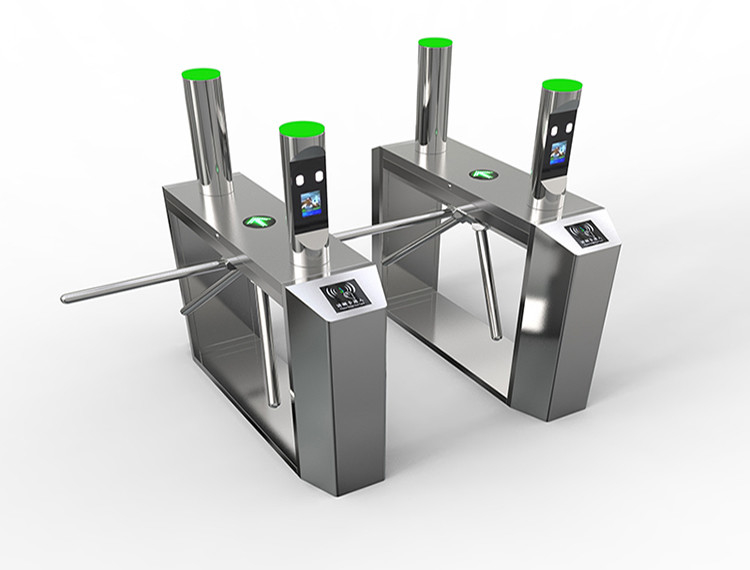

510mm Arm Bi Directional Tripod Turnstile Gate Stainless Steel IP45
  • 510mm Arm Bi Directional Tripod Turnstile Gate Stainless Steel IP45
  • 510mm Arm Bi Directional Tripod Turnstile Gate Stainless Steel IP45

510mm Arm Bi Directional Tripod Turnstile Gate Stainless Steel IP45

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-TT03
Product Details
Pass Direction:
Single/bi-direction
Material Of Housing:
SS304 (other Material Optional)
OEM/ODM:
Supported
Arm Length:
510mm
IP Grade:
IP45
Warranty:
12 Months At Least
High Light:

Bi Directional Tripod Turnstile Gate

,

510mm Arm Tripod Turnstile Gate

,

IP45 Stainless Steel Tripod Turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
3,000pcs per month
Product Description

Stainless Steel 304 Electrical Shenzhen Original Bi-Direction Tripod Turnstile Gate Pirce



Product description



One type of the Turnstile for pederstrians intelligent access control terminal equipment.The whole profile is

stamped  from the standard SS304, beautiful and generous shape, rust proof, durable, resisting external damage.



The passageway composed of rectangular frame and barrier arm can provide orderly and civilized access for the

pedestrians, prevent illegal access., and quickly control the droping or lifting the arm in emergency. The adoption

of standard electrical interface can easily integrate the bar code card, ID card, IC card and other card readers into

the equipment, to provide civilized and orderly access for pedestrians, at the same time can prevent unauthorized

persons access.



In addition, the system is specially designed the function to meet the fire prevention requirements to ensure that the

passage is unimpeded, convenient for pedestrians timely evacuating in emergency.



The cabinet use standard 304 stainless steel which with streamline structure, can be installed in indoor and outdoor,





Technical specifications



Model
SN-TT03
Case Material
SS304
Barrier Arm material
SS304
Production Process
CNC Laser Cutting
Size
1200*280*980mm
Power input
AC100-240V,50/60HZ
Operation voltage
DC24V
Electromagentic
Duty Cycle 100%
Barrier Arm Lenght
510mm
Arm Max Applied Force
80Kg
Arm Operation Driving Force
3Kg
Passage direction
Single directional/Bi-directional(Optional)
Throughput Rate
30 persons/minute
Operating time
0.2 seconds
Automatic Reset Function
Automatically locked within set time
Operation Humidity
0~95%(No Freezing)
Operation Temperature
-20℃~+60℃
Operation Eenvironment
Indoor,Outdoor(with shelter)
Protection Level
IP45
Communication interface
relay
MCBF
5,000,000 Cycles



MAIN FUNCTIONS AND FEATURES



1.Mechanical drive unit with solenoid locking mechanism eliminate the use of expensive electric motor and

reduce maintenance cost.



2.If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will

auto-rotate back to the current idle position.



3. Built in adjustable tensioner to control rotation force to minimize over rotation. Arm just need to be pushed

lightly to rotate therefore even elderly or children are able to use the turnstile.



4.Turnstile can be configured to be bi-directional or uni-directional. Housing is locked with special key to avoid

tampering.



5. Innovative and unique mounting surface ensures simple and convenient installation for system integrator.



6. Can be used with variety of access control devices: IC / ID card readers, bar-code scanner, fingerprints, etc.

(Access controller needed)



7. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds),

the system will cancel the authority of the current user automatically.



8. The mechanism is equipped with an automatic regulated hydraulic buffer device. There is no noise and impact

when running.



510mm Arm Bi Directional Tripod Turnstile Gate Stainless Steel IP45 0
